Mercusys AC12G User Manual

54
Chapter 4

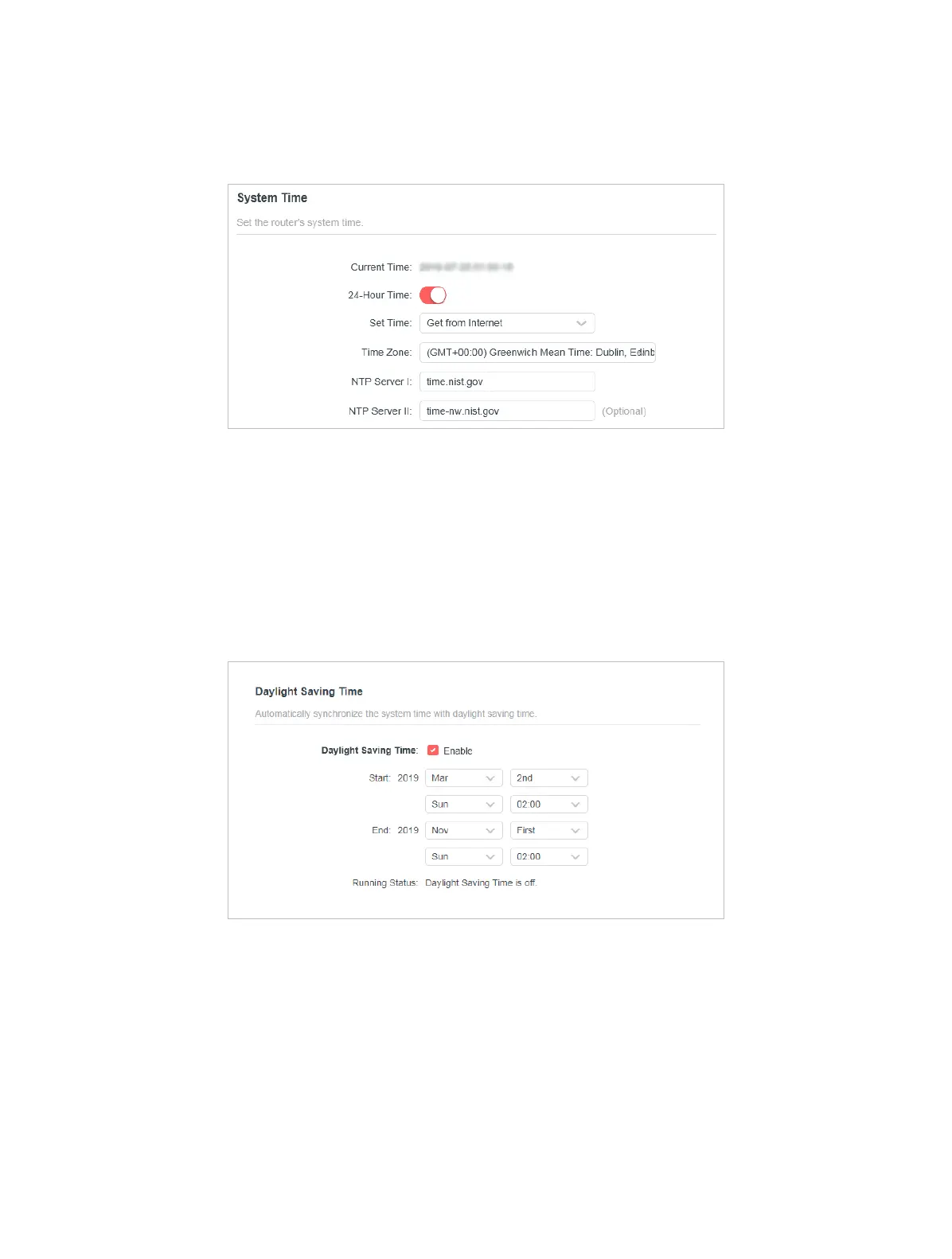

2. Go to Advanced > System > Time.
• To set System Time:
1. Select the way in which the router gets its time: Get from Internet, Get from
Managing Device, Manually.
2. Select your local Time Zone.
3. Enter the address or domain of the NTP Server 1 or NTP Server 2.
4. Click SAVE.
• To set up Daylight Saving Time:
1. Tick the Enable box of Daylight Saving Time.
2. Select the start time from the drop-down list in the Start elds.
3. Select the end time from the drop-down list in the End elds.
4. Click SAVE.
Note:
This setting will be used for some time-based functions such as rewall. You must specify your time zone once you log in to
the router successfully; otherwise, time-based functions will not take eect.
4. 10. 4 Reboot
Some settings of the router will take eect only after rebooting, and the system will

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
