Mercusys AC12G User Manual

02
Chapter 1
Chapter 1 Introduction
1.1 Product Overview
AC12G delivers blazing fast Wi-Fi speeds up to 1300 Mbps. Choose the 2.4 GHz band
(400 Mbps) for internet browsing, email, and social media or the 5 GHz band (867
Mbps) for bandwidth-intensive tasks like HD streaming and gaming.
1.2 Product Appearance
1. 2. 1 The Front Panel

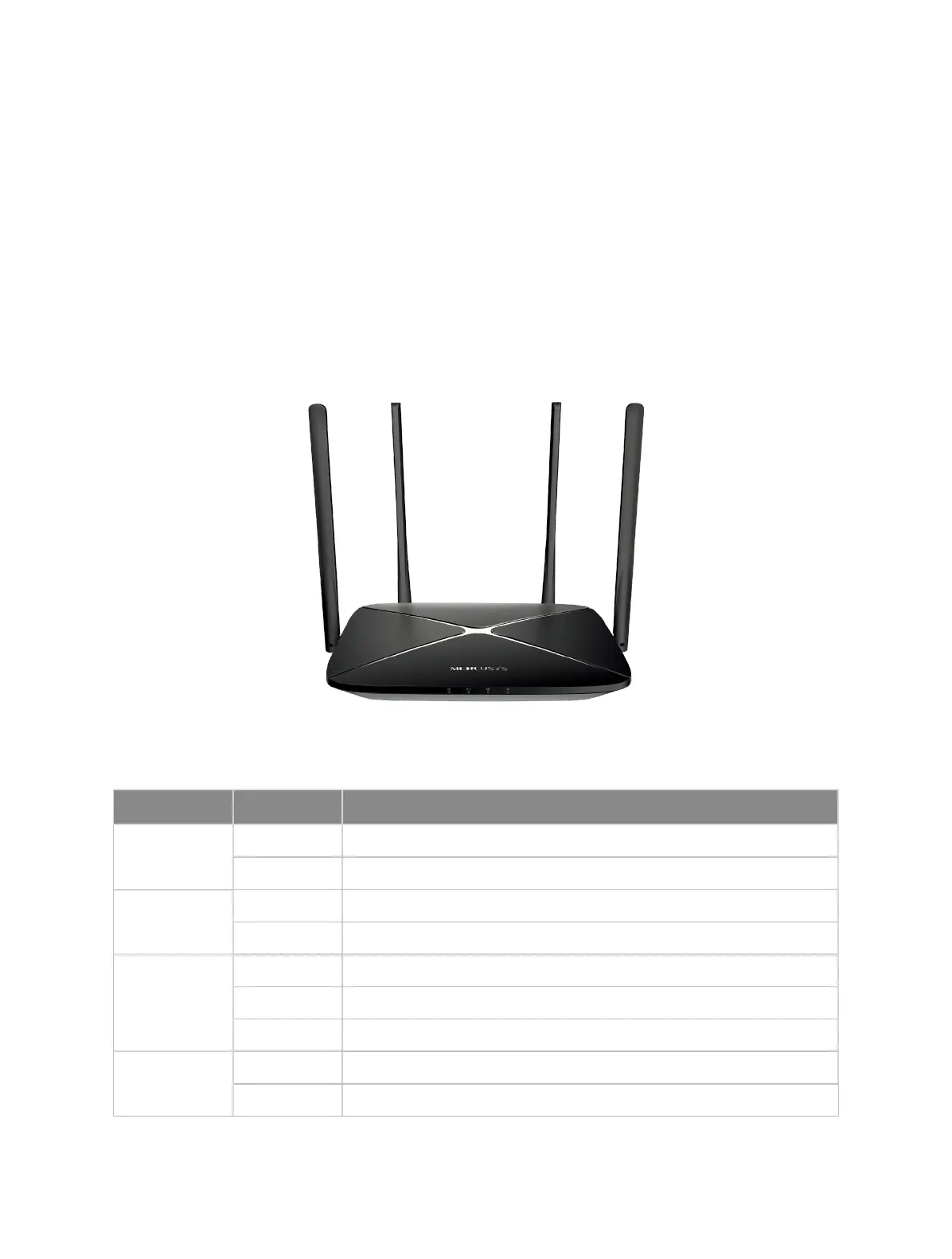

The router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
SYS
Off Power is off or the router is not working properly.
On The router is working properly.
WIFI
Off The wireless function is disabled.
On The wireless function is working properly.
WAN
Off The WAN port is not connected.
Flashing The WAN port is transmitting/receiving data.
On The WAN port is connected.
LAN
Off No LAN port is connected to a powered-on device.
On At least one LAN port is connected to a powered-on device.
1. 2. 2 The Rear Panel

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
