Mercusys AC12G User Manual

11
Chapter 4
• Subnet Mask - The subnet mask associated with the LAN IP address.

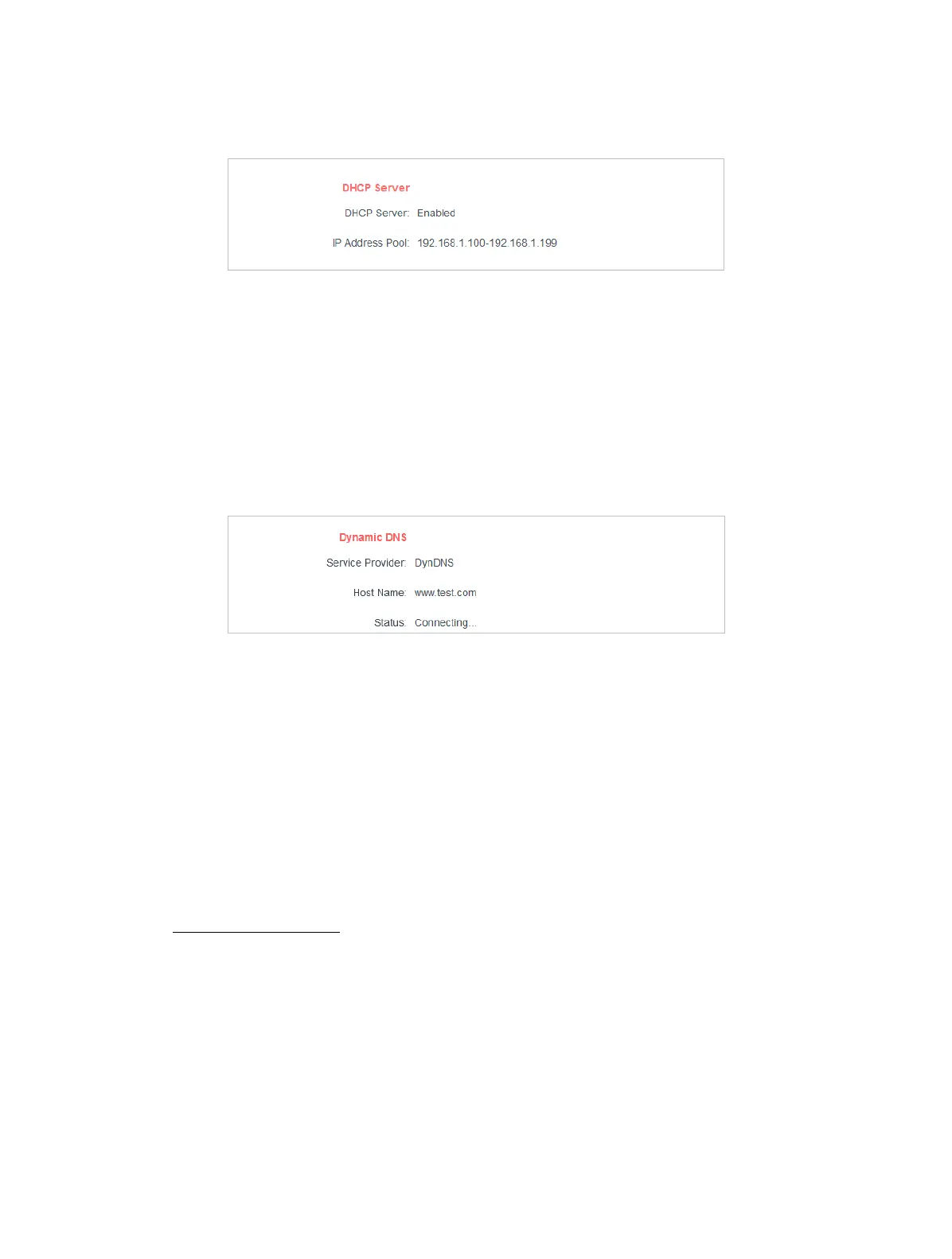

• DHCP Server - This eld displays the current settings of DHCP (Dynamic Host
Conguration Protocol) Server, and you can congure them on the Network >
DHCP Server page.
• DHCP Server - Indicates whether the DHCP server is enabled of disabled. It
is enabled by default and the router acts as a DHCP server.
• IP Address Pool - The IP address range for the DHCP server to assign IP
addresses.
• Dynamic DNS - This eld displays the current settings of the Dynamic DNS
(Domain Name System), and you can congure them on the Advanced > Network
> Dynamic DNS page.
• Service Provider - The Dynamic DNS service provider you have signed up
for.
• Host Name - The Domain Name you have entered in the Dynamic DNS page.
• Status - The status of the Dynamic DNS service connection.
4. 2. 2 Internet
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > Network > Internet.
3. Set up the internet connection and click SAVE.
Dynamic IP
If your ISP provides the DHCP service, please select Dynamic IP, and the router will
automatically get IP parameters from your ISP.
Click RENEW to renew the IP parameters from your ISP.

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
