Mercusys AC12G User Manual

59
Chapter 5

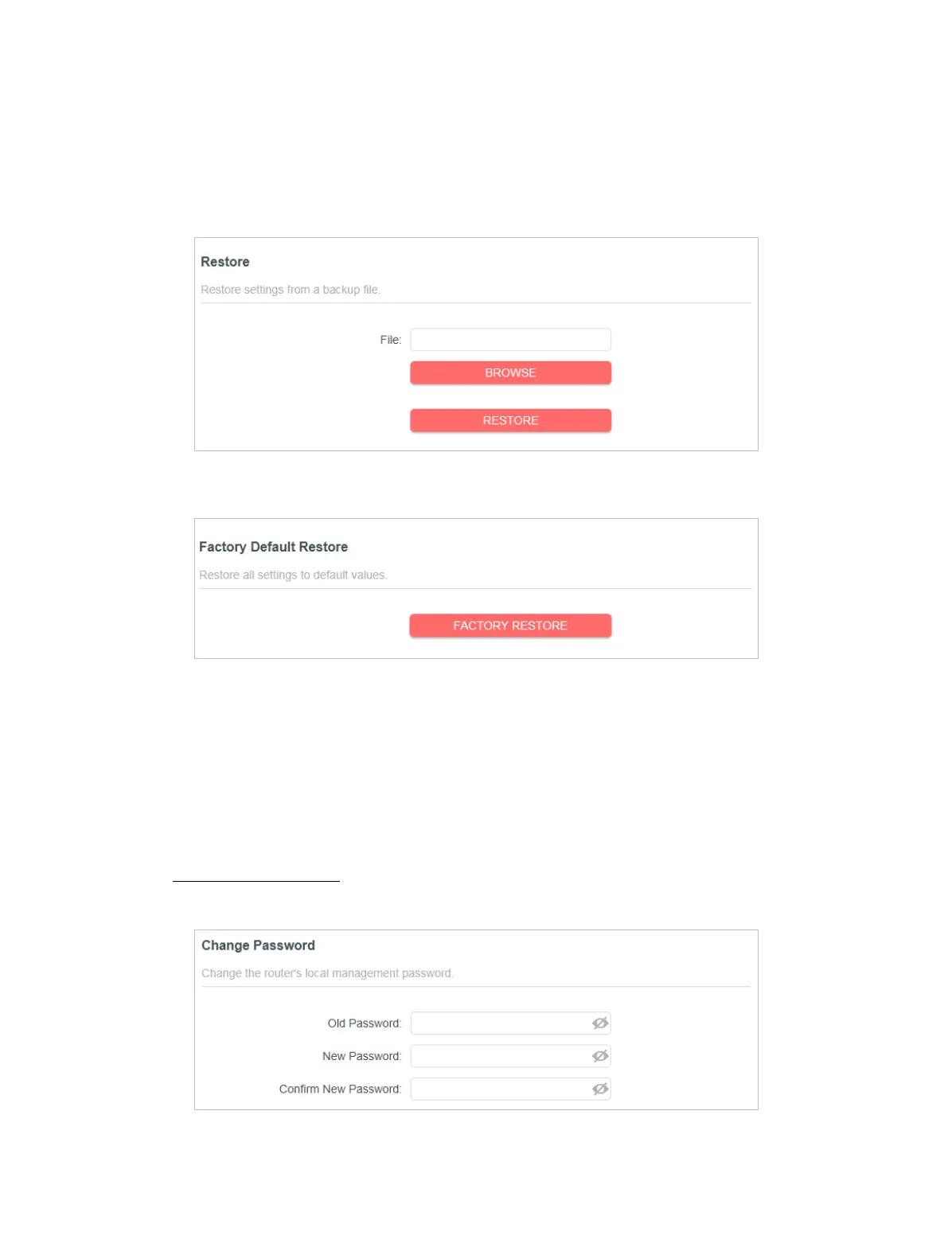

To restore conguration settings:
1. Click BROWSE to locate the backup conguration le stored in your computer,
and click RESTORE.
2. Wait a few minutes for the restoring and rebooting.
To reset the router to factory default settings:
1. Click FACTORY RESTORE to reset the router.
2. Wait a few minutes for the restoring and rebooting.
Note:
• During the resetting process, do not turn o or reset the router.
• We strongly recommend you back up the current conguration settings before resetting the router.
5.4 Administration
5. 4. 1 Change Password
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to System > Administration, and focus on the Change Password section.
3. Enter the old password, then a new password twice (both case-sensitive). Click
SAVE.

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
