Mercusys AC12G User Manual

49
Chapter 4

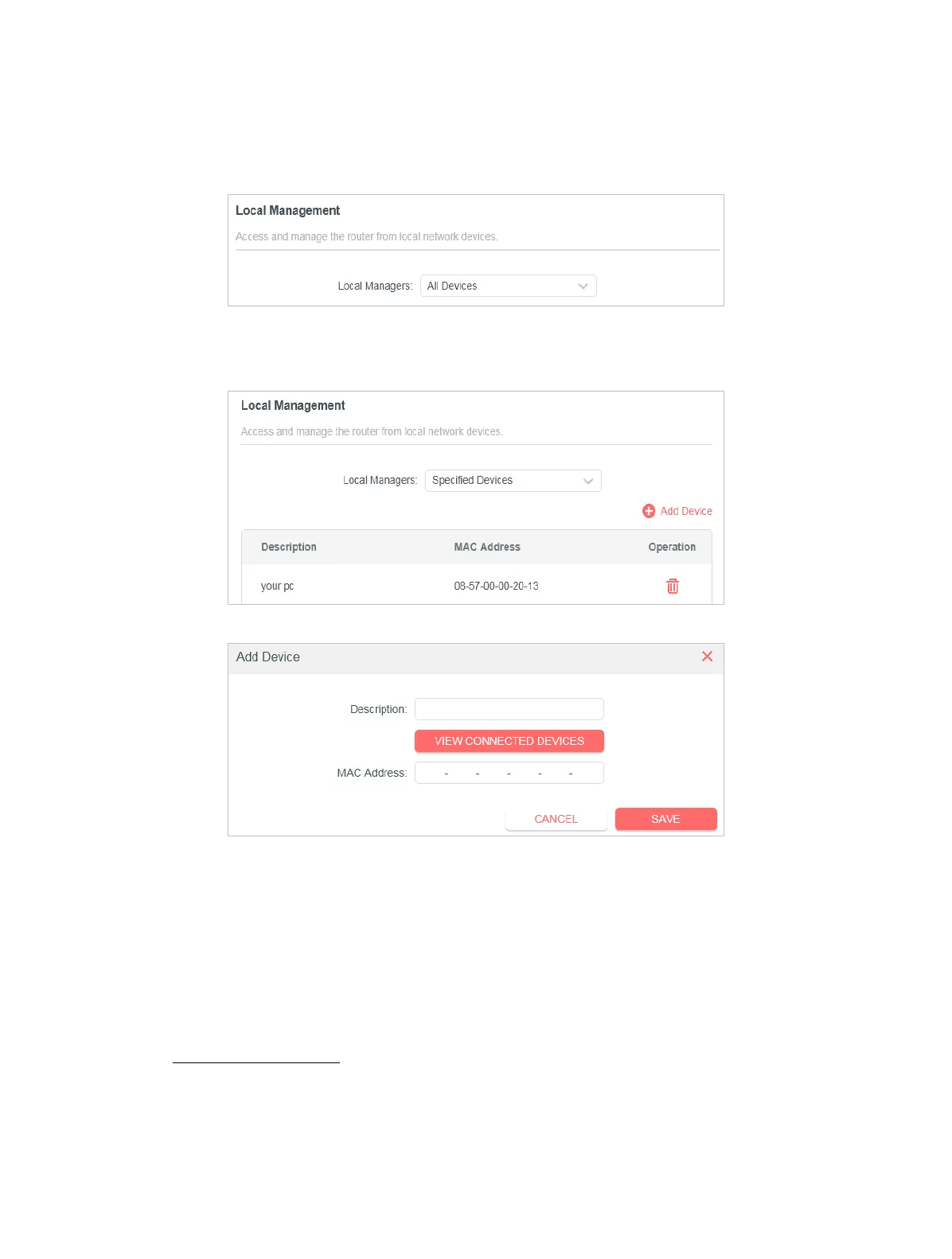

• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers.
• Allow specic devices to manage the router:
1. Select Specied Devices for Local Managers and click SAVE.
2. Click Add Device.
3. Click VIEW CONNECTED DEVICES and select the device to manage the router
from the Connected Devices list, or enter the MAC address of the device
manually.
4. Specify a Description for this entry.
5. Click SAVE.
4. 9. 5 Remote Management
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration, and focus on the Remote
Management section.
• Forbid all devices to manage the router remotely:

Mercusys AC12G Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Transmit power	20 dBmW
Antennas quantity	4
Output current	0.85 A
Output voltage	9 V
Power source type	DC
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Certification	CE, ROHS
Package depth	288 mm
Package width	382 mm
Package height	66 mm
Package weight	760 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	140 mm
Width	222 mm
Height	32 mm
