-42-
De stination Ne two r k - The address of the network or host that you want to assign to a static
route.
Subnet Mask - The subnet mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
De fault Gateway - This is the IP Address of the gateway device that allows for contact
between the router and the network or host.
Click Enable All to enable all the entries.
Click Disable All to disable all the entries.
Click Delete All to delete all the entries.
Click Ne xt to view the information in the next screen, or click Previous to view the information in
the previous screen,

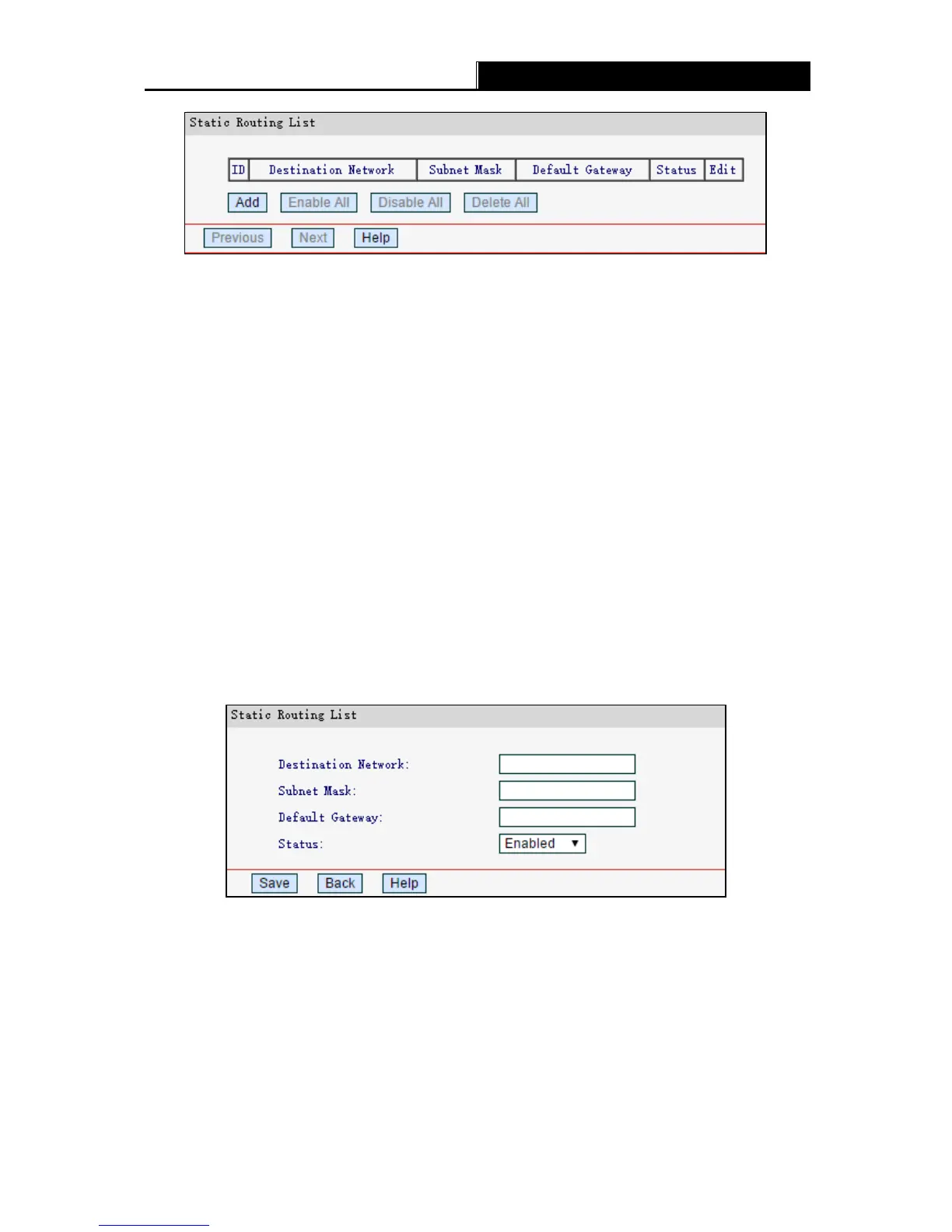

To add static routing entries:
1. Click Ad d.
2. Enter the destination network, subnet mask and default gateway in the corresponding field.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
4. Click Sav e to make the entry take effect.
4.10.2 System Routing Table
Go to Advanced Routing→System Routing Table, and then you can view the system routing
table. System routing table views all of the valid route entries in use. The Destination IP address,
Subnet Mask, Gateway, and Interface will be displayed for each entry.
