Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

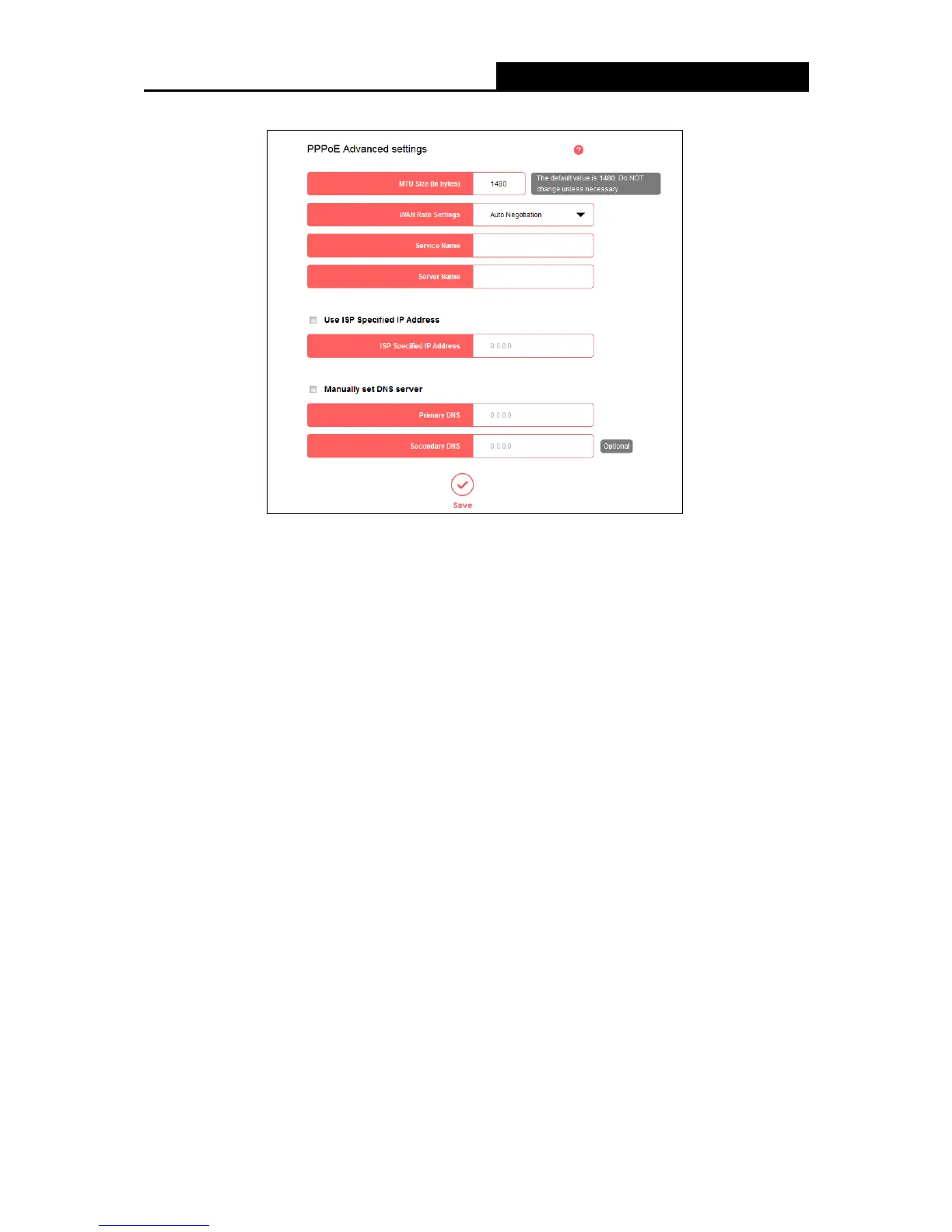

 PPPoE Advanced settings
 MTU Size (in bytes)- The default MTU size is 1480 bytes. It is NOT recommended that you
change the default MTU Size unless required by your ISP.
 WAN Rate Settings - Select the rate and duplex mode for the WAN port. It is recommended
to keep the default auto mode.
 Service Name/Server Name - The service name and server name should not be configured
unless it is necessary for your ISP.
In most cases, leaving these fields blank will work.
 Use ISP Specified IP Address - If your ISP does not automatically assign IP addresses to
the router during login, select this option and enter the IP address provided by your ISP in
dotted-decimal notation.
 Manually set DNS server - If your ISP gives you one or two DNS addresses, select this
option and enter the primary and secondary addresses into the corresponding fields.
Otherwise, the DNS servers will be assigned dynamically from your ISP.
Click Save to make the settings effective.
- 15 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
