Monitor Mission Engine
Bypassing the Anubis Monitoring Engine will prevent control over Volume (Rotary), Trim, Mute
and more. Such connection could be desired for direct IO use and for connecting for example, an
A/D directly to a D/A for Effect Inserts usage. For Monitoring Control purposes this is it not
recommended.
Signal path going through the Monitoring Mix Engine, for Monitoring control over the entire
Anubis Monitoring feature set, with the use of Sources and Monitors.

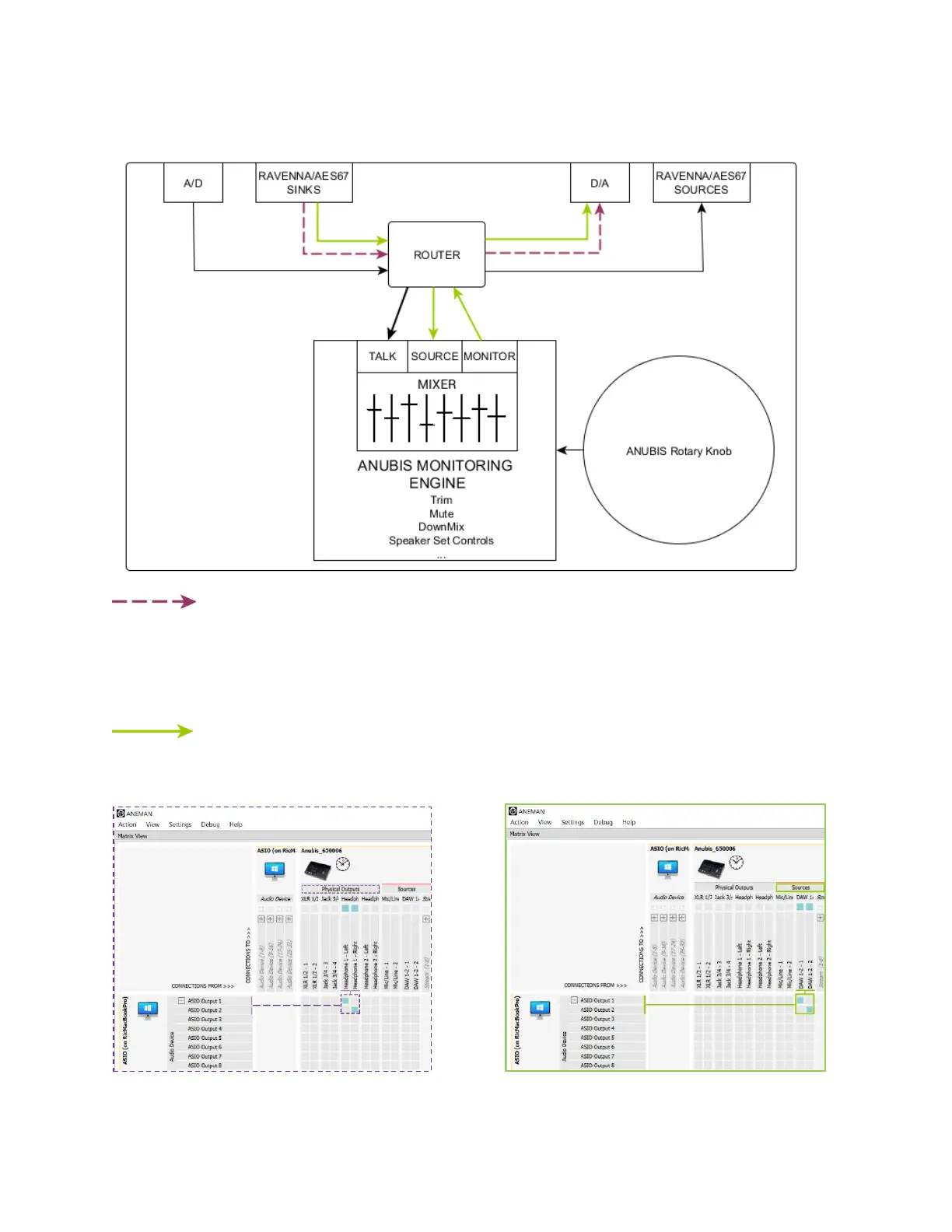

Figure 8 Bypassing Monitoring Engine
Figure 9 Properly Routed for Monitoring Mission
