2.2 Connecting the accessories
Both the stand for attaching the stirrer, clamping ring and electrode
holder as well as the pH/Ion Meter itself can be mounted on the sup-
plied
.
You can chose between the arrangements shown in Fig. 4 to suit your
own particular working preference.

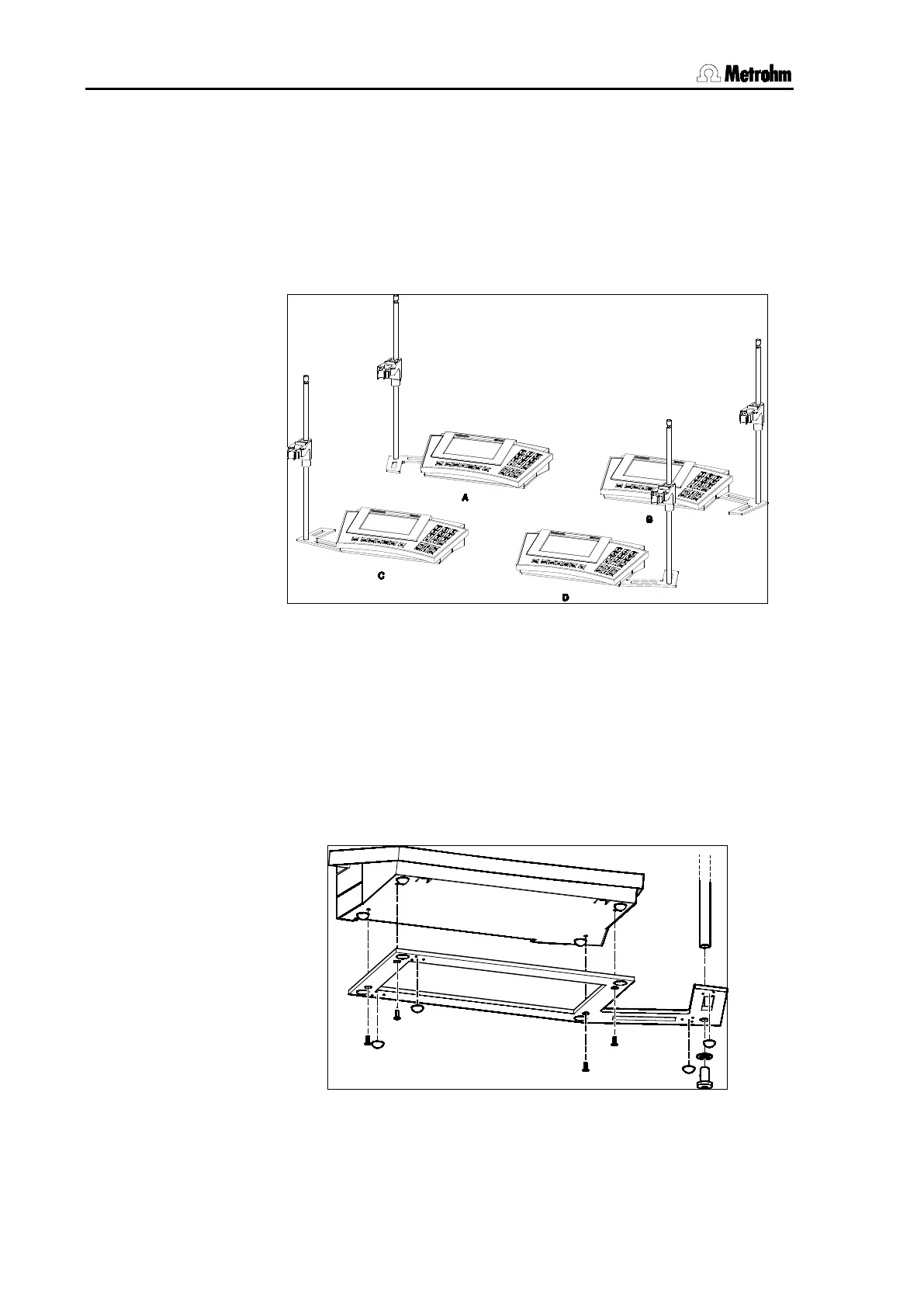

Fig. 4: Possible arrangements for mounting the base plate
Versions
and
are intended for mounting an 801 Magnetic stirrer on
the left- and right-hand side of the pH/Ion Meter respectively. If you fre-
quently work without such a permanently attached stirrer then you can
mount the base plate so that you have space for the sample vessel di-
rectly in front of the support rod (versions
and
).
Attach the base plate with the screws provided as shown in Fig. 5. The
rubber feet included prevent the system from slipping about on the
work bench and should therefore be stuck on to the base plate.
Fig. 5: Attaching the support rod and base plate
