2 Installation
780/781 pH/Ion Meter, Manual
9
2.3 Connecting optional devices
Devices which are to be remotely controlled from the pH/Ion Meter (e.g.
Metrohm stirrers or Dosimat Plus devices) are connected to MSB con-
nection
9
. This can be carried out either directly (
801
Magnetic Stirrer
or
802
Rod Stirrer
with
804 Ti-Stand
) or via the optionally available
6.2148.010 Remote Box (e.g.
Dosimat Plus
).
2.3.1 Connecting the 801 Magnetic Stirrer
Mount the magnetic stirrer on the support rod before attaching the
clamping ring (6.2013.010) and the electrode holder (6.2021.020). Fur-
ther details are given in the corresponding Manual.
For example, the ready-mounted system could look like this:

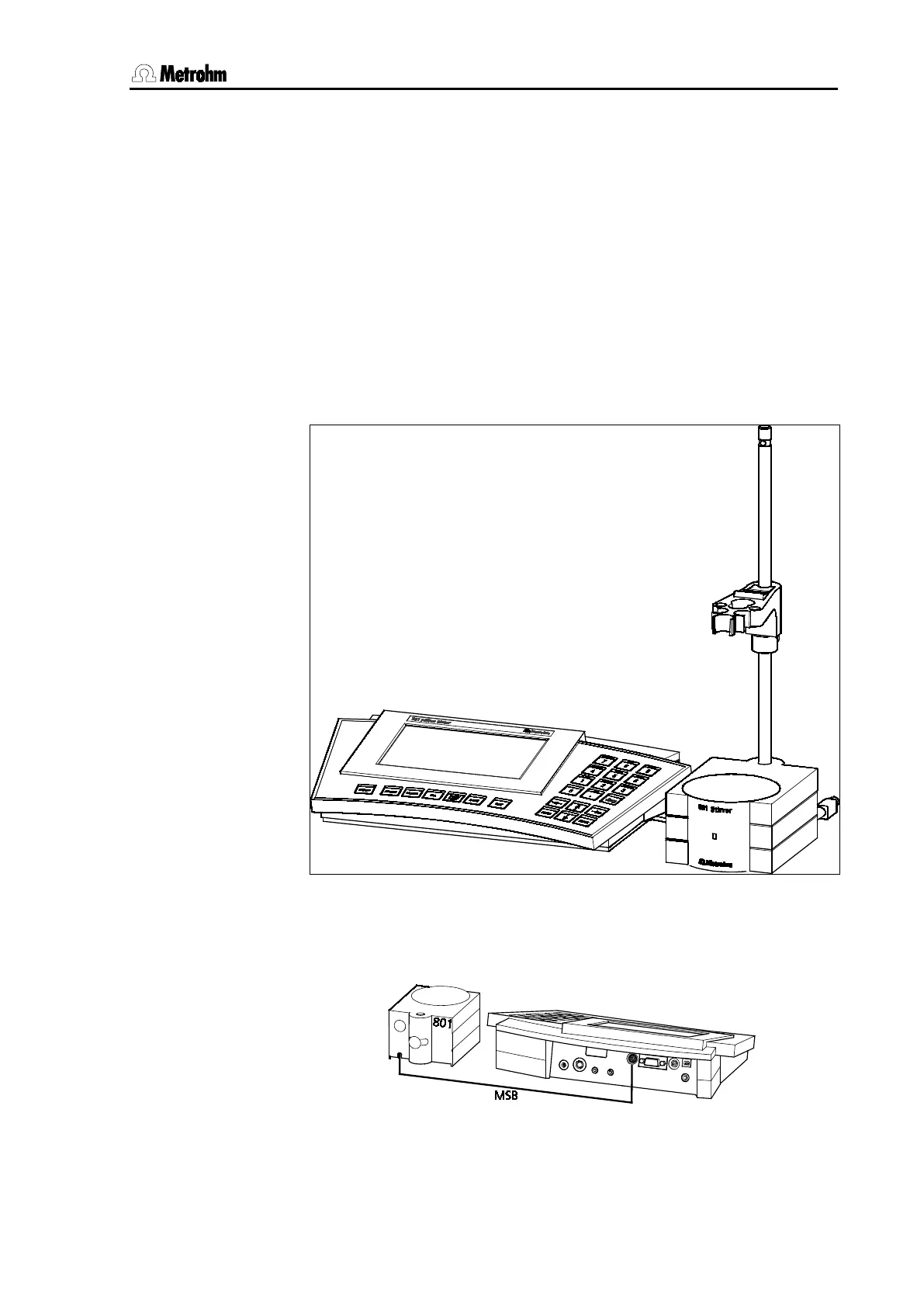

Fig. 6: Ready-mounted pH/ISE measuring system
The
801
Magnetic Stirrer
is controlled via MSB connection
9
. The stirrer
is connected to it directly:
Fig. 7: 780 pH Meter / 781 pH/Ion Meter – 801 Magnetic stirrer
