7.4 Device View ARS 2340 FS
100 mm free space for sufficient
ventilation
LEDs + 7 Segment display:
- Ready / Error
- Enable
- Can On
- Status display
FSM module:
- FSM 2.0 FBA
- Optional FSM 2.0 STO
- Optional FSM 2.0 MOV
Technology slot such as:
- PROFIBUS-DP
- PROFINET
- EtherCAT
Terminating resistor for
CANopen
SD-Card slot
Boot action
X19: USB
X18: Ethernet
X4: CAN
X5: RS232
RESET button
100 mm free space for sufficient
ventilation
X9B: 24VDC Supply

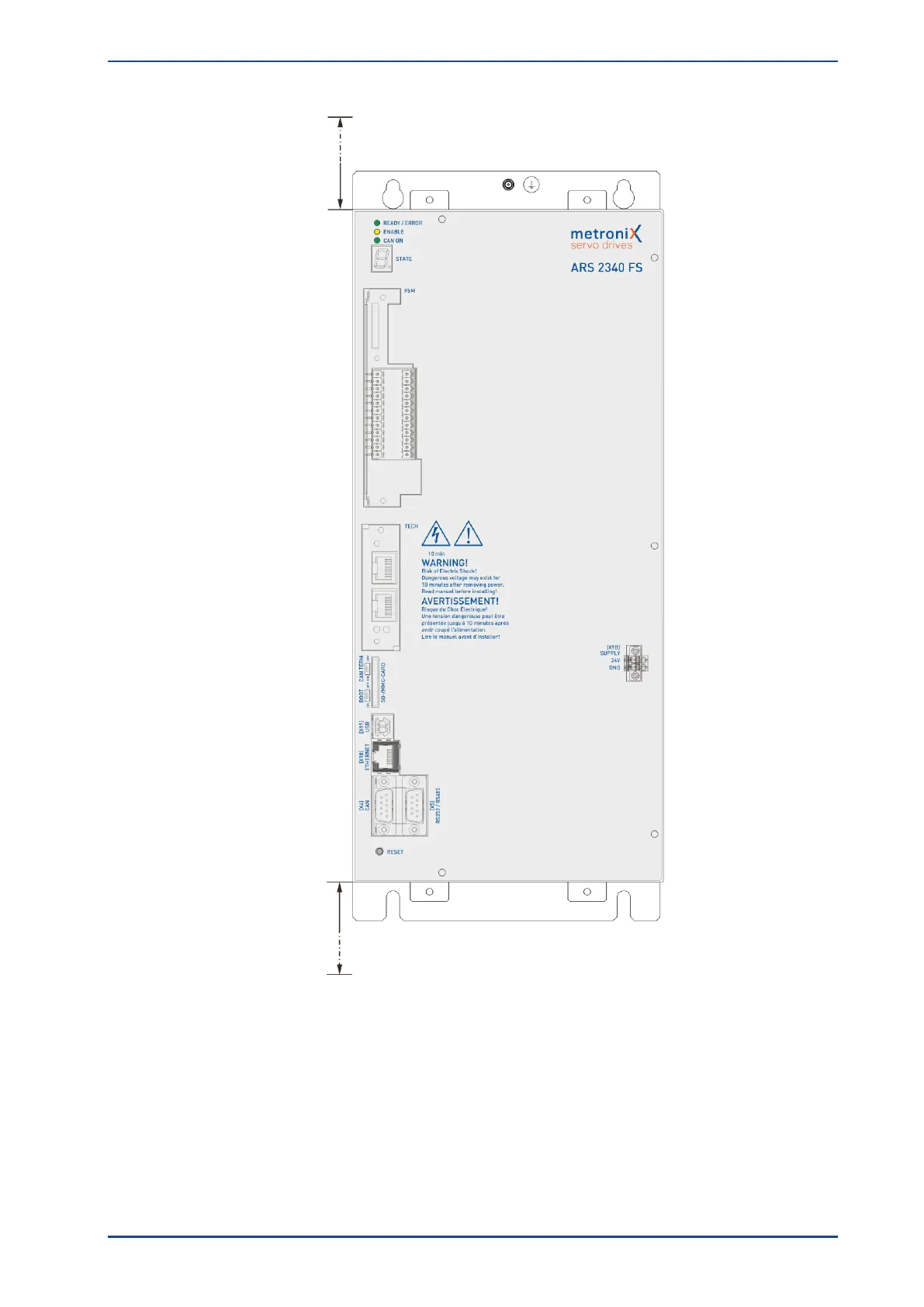

Figure 10: Servo drive ARS 2340 FS: Front view and Installation space
