Page 70 Electrical installation
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
8.9 RS232 [X5]
Pin assignment X5 RS232
Pin No.
Denomination
Values
Specification
1
-
-
Not occupied
6
-
-
Not occupied
2
RxD
10 V / R
I
>
2k
Receive line, RS232 specification
7
-
-
Not occupied
3
TxD
10 V / R
A
<
2k
Transmitting line, RS232 specification
8
-
-
Not occupied
4
+RS485
-
Reserve for option RS485 Interface
9
-RS485
-
Reserve for option RS485 Interface
5
GND
0V
Interfaces GND, galvanically connected to DGND
D-SUB connector
at X5
PC
2
3
4
5
6
7
8
1
9
Connector housing
1
5
9
6
Connector housing
2
3
4
5
6
7
8
1
9
1
5
9
6
Female Female

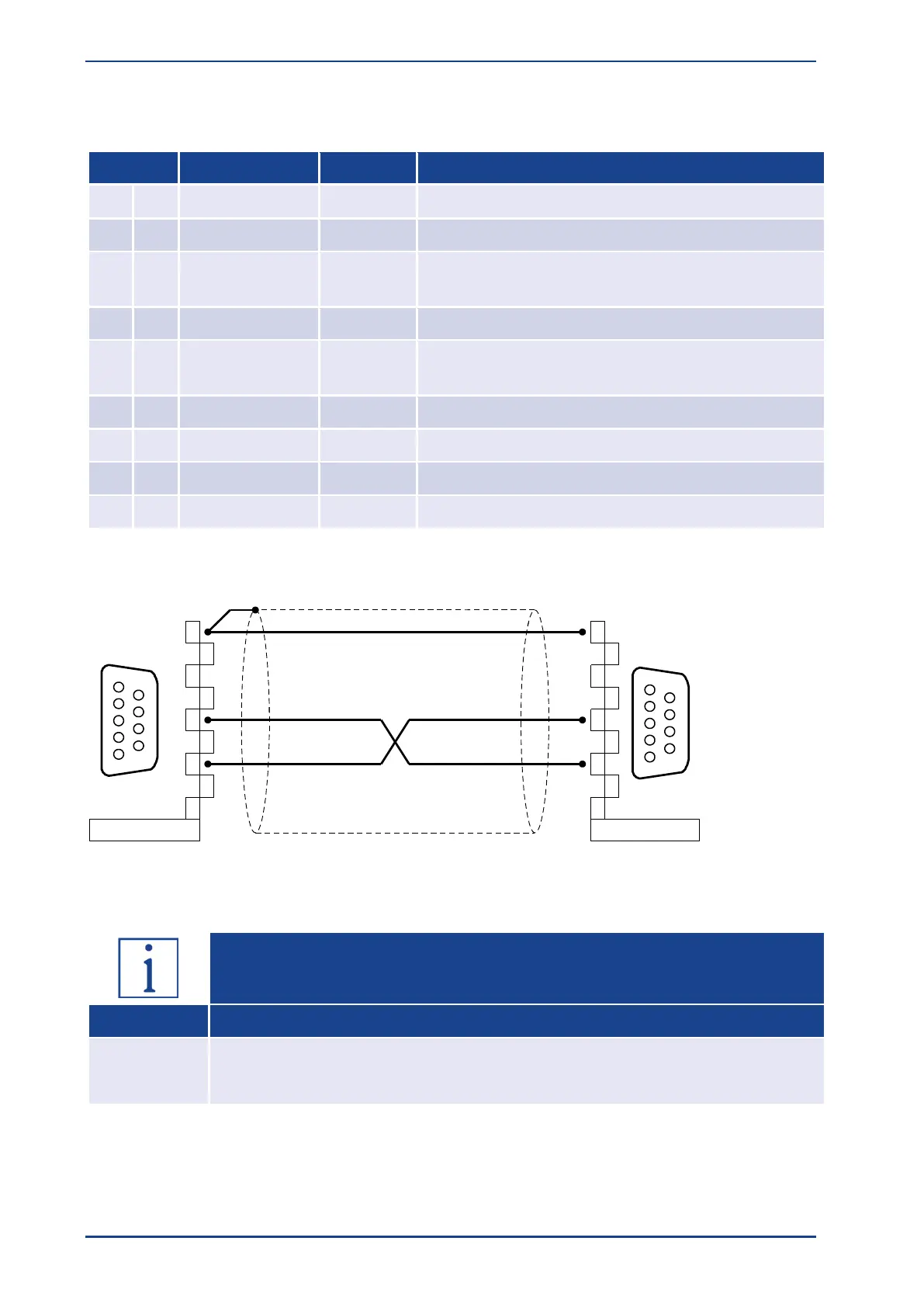

Figure 32: RS232 cabling example
Mating plug X5
INFORMATION
Mating plug
ARS 2320/40/60W FS
X5
D-SUB connector, 9-pin type, female
Housing for a 9-pin D-SUB connector with locking screws of type 4/40 UNC
Recommended cable type or comparable:
 Interface cable for the serial interface (null modem), 3 cores
