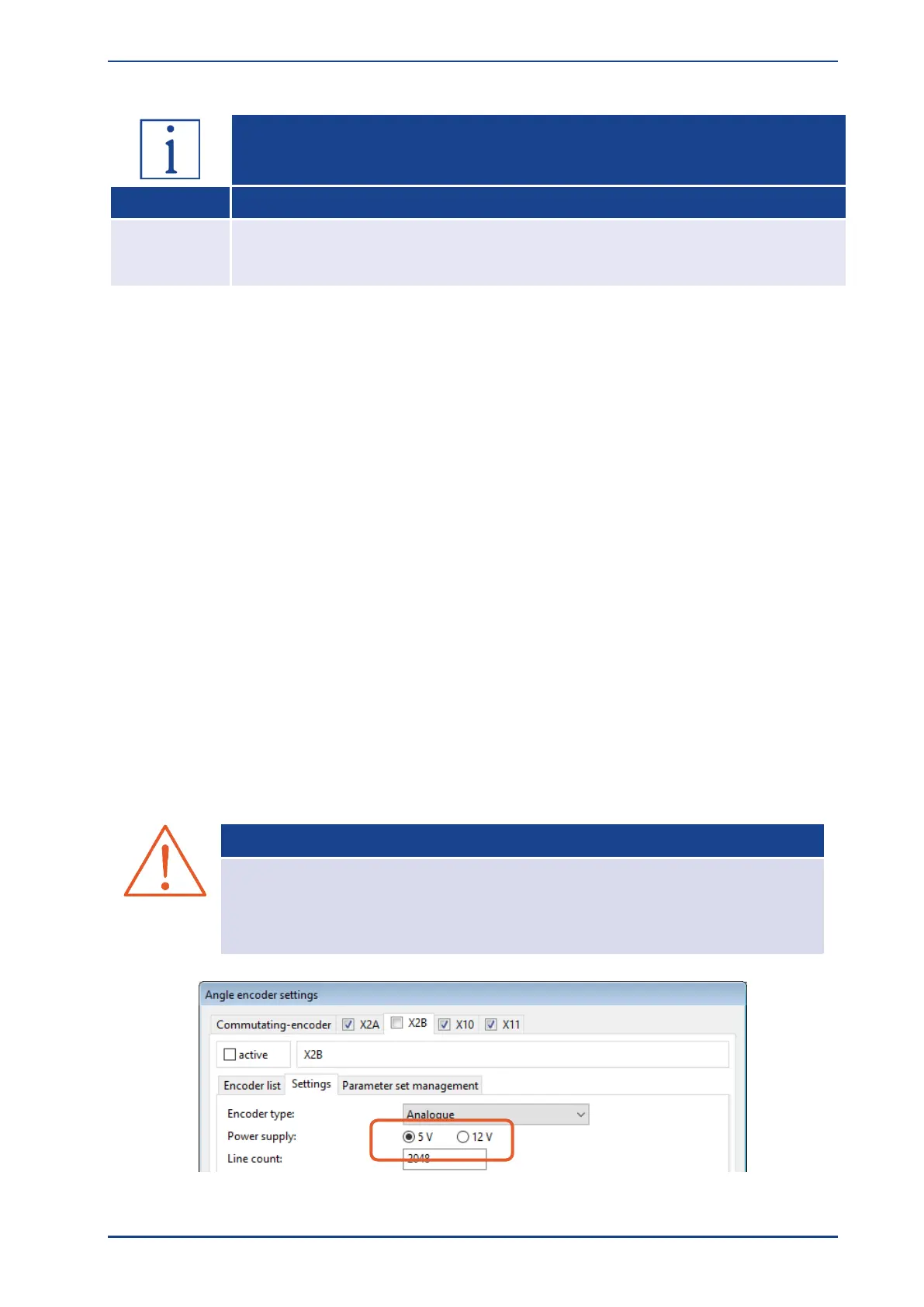

Electrical installation Page 63
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
Mating plug X2A
INFORMATION
Mating plug
ARS 2320/40/60W FS
X2A
D-SUB connector, 9-pin type, male
Housing for a 9-pin D-SUB connector with locking screws of type 4/40 UNC
Recommended cable type or comparable:
 LAPP KABEL ÖLFLEX SERVO 720 CY; 3 x (2 x 0.14 DY) + 2 x (0.5 DY) CY;

8.5 mm,
with tinned CU overall shielding, error during the angle measurement up to approx. 1.5° with a
cable length of 50 m
Use 2 x (0.5 DY) for the resolver carrier!
For highly flexible applications:
 LAPP KABEL ÖLFLEX SERVO FD 770 CP; 3 x (2 x 0.14 D12Y) + 2 x (0.5 D12Y) CP;

8.3 mm,
with tinned CU overall shielding, error during the angle measurement up to approx. 1.5° with a
cable length of 50 m
Use 2 x (0.5 D12Y) for the resolver carrier!
8.7 Encoder [X2B]
At the 15-pole D-Sub connection [X2B], motors with encoder can be fed back. The possible incremental
encoders for the encoder connection are divided into several groups. The universal encoder input [X2B]
can be used for one of the described encoder types.
 Analog incremental encoder
 Incremental encoder with serial communication interface (for example EnDat, HIPERFACE)
 Digital incremental encoder
CAUTION!
In case of wrong activated voltage supply, the encoder can be destroyed!
Make sure the correct supply voltage is activated, before connected to [X2B].
Therefore, start the parameterization software Metronix ServoCommander
®
and
select Parameters / Device parameters / Angle encoder settings.
Figure 26: Metronix ServoCommander
®
: Angle encoder settings [X2B]
