7.5 Installation/Mounting ARS 2340 FS
The Servo drive ARS 2320 FS has attachment lugs on the top and the bottom of the device. These are
used to mount the Servo drive vertically to a control cabinet plate.
Please use M5 or M6 screws for the mounting of the Servo drive.

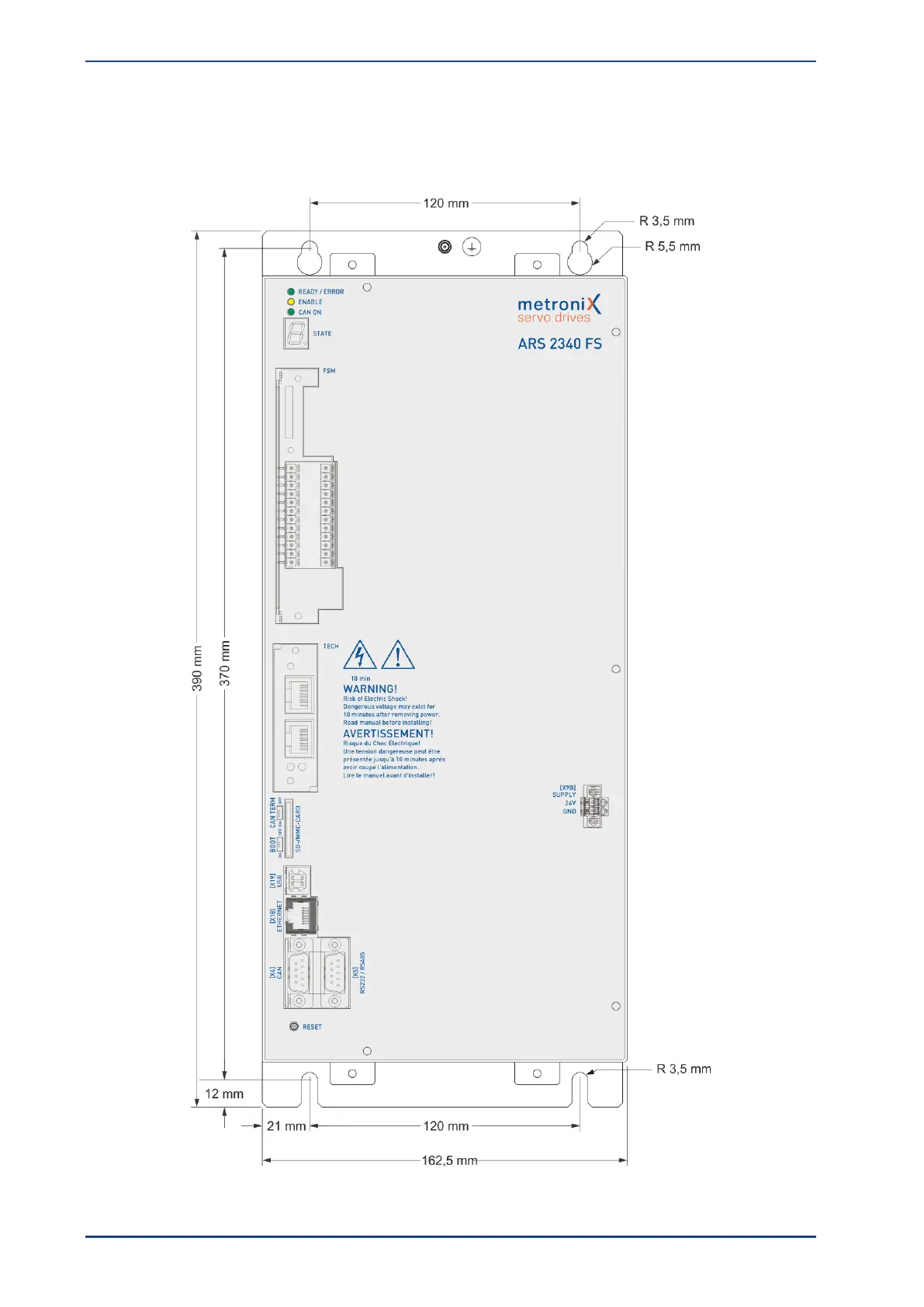

Figure 13: Servo drive ARS 2340 FS: Mounting plate
