Page 38 Mechanical installation

Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0

7.3 Installation/Mounting ARS 2320 FS

The Servo drive ARS 2320 FS has attachment lugs on the top and the bottom of the device. These are

used to mount the Servo drive vertically to a control cabinet plate.

Please use M5 or M6 screws for the mounting of the Servo drive.

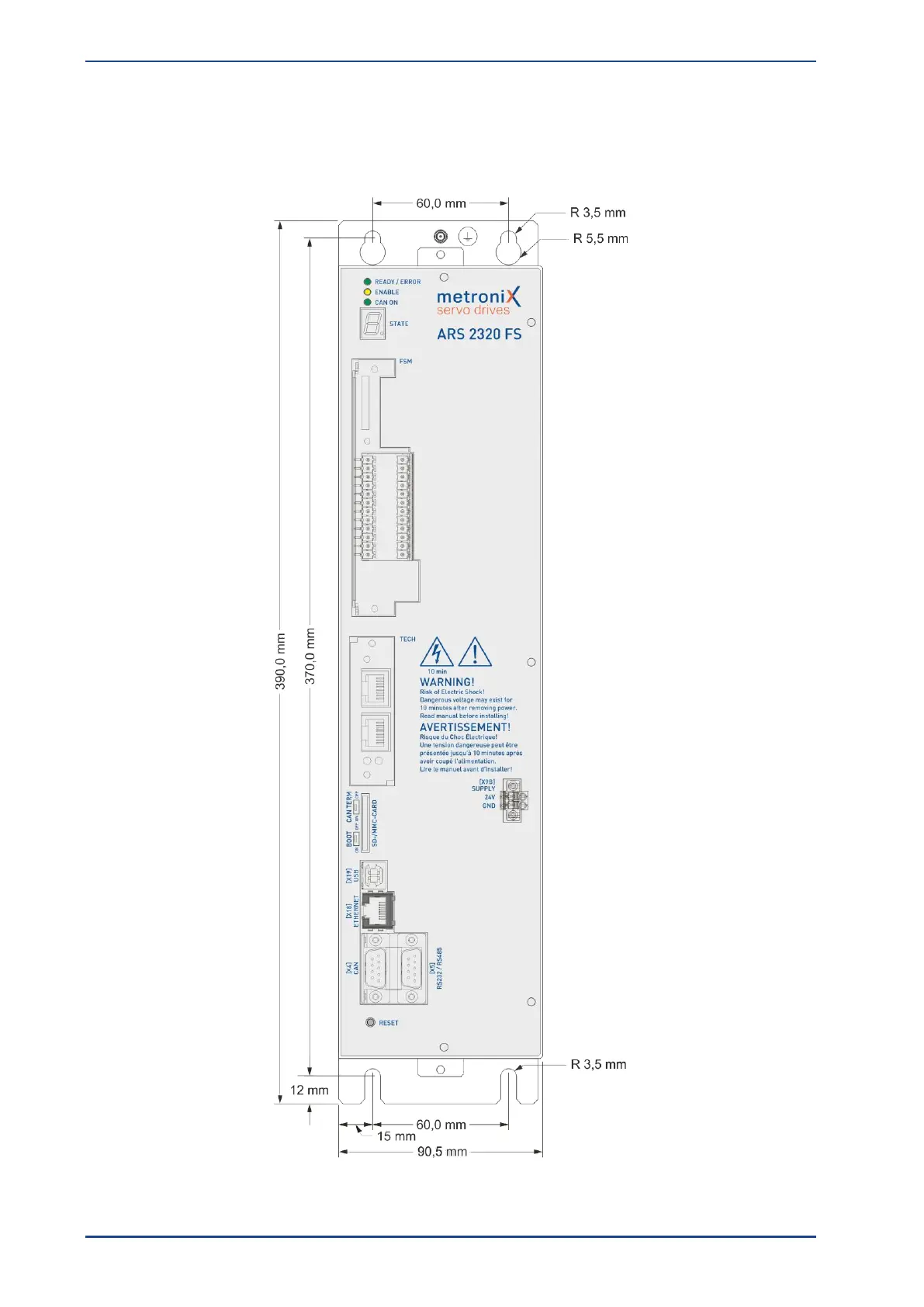

Figure 9: Servo drive ARS 2320 FS: Mounting plate
