Mechanical installation Page 37
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
X6B:
Motor holding brake
X2B:
Multi-Encoder
X2A:
Resolver
X6A:
Motor temperature
sensor
X6:
Motor

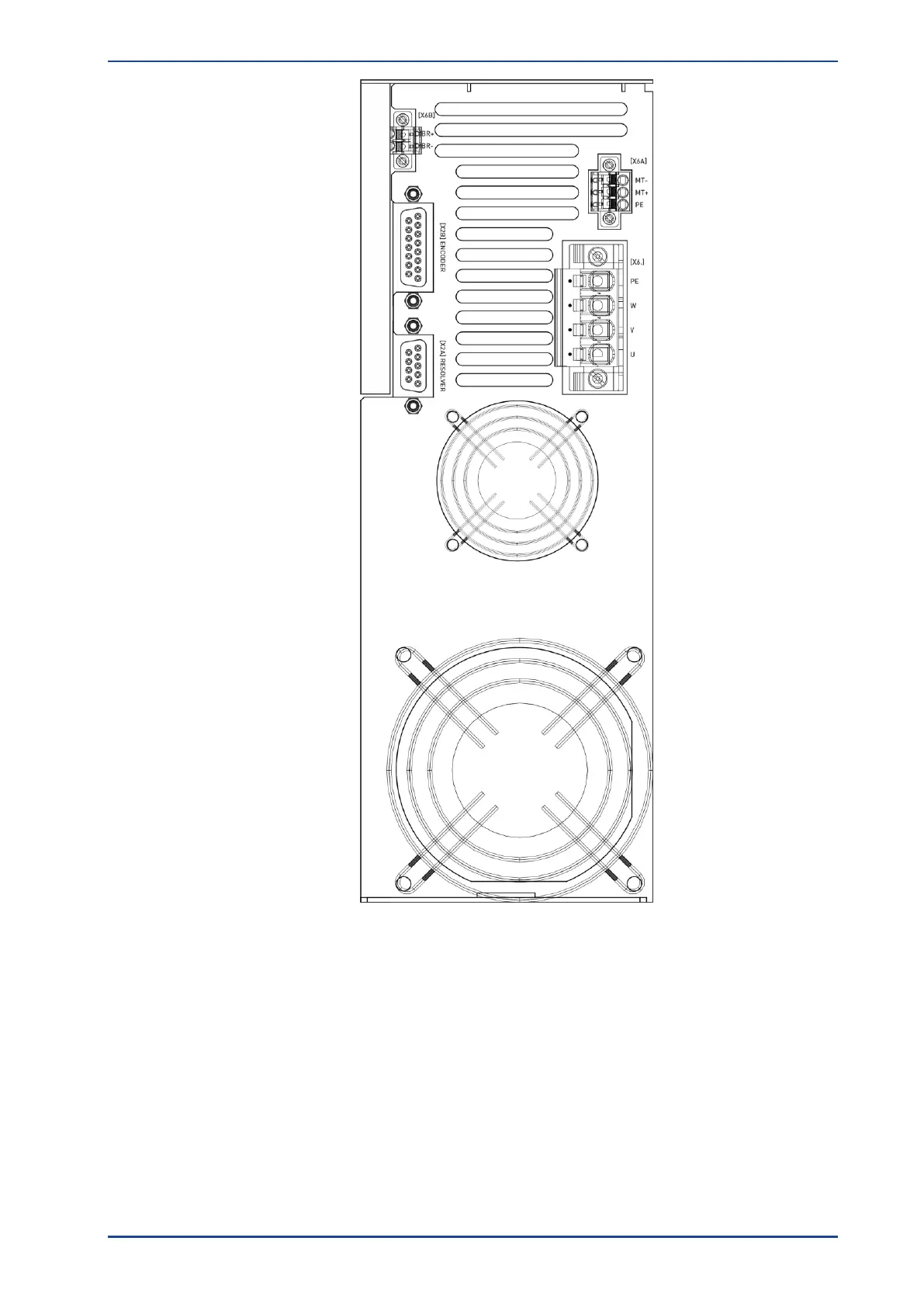

Figure 8: Servo drive ARS 2320 FS: Bottom view
