Page 36 Mechanical installation
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
X11:
Incremental encoder output
X10:
Incremental encoder input
X1:
I/O interface
X9:
Power Supply
X9C:
DC bus voltage
X9A:
Brake resistor

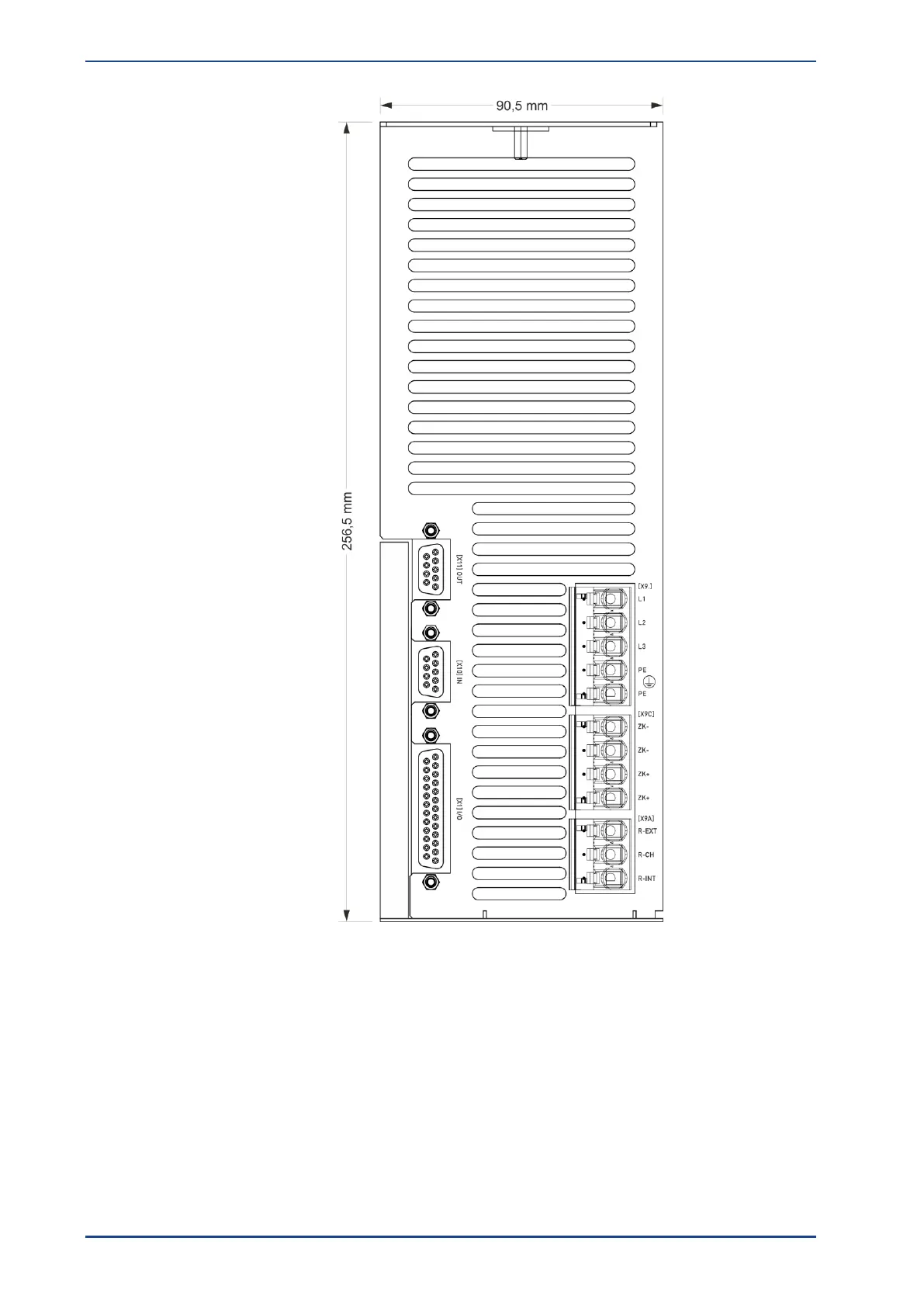

Figure 7: Servo drive ARS 2320 FS: Top view
