Metronix ARS 2320 FS User Manual

Electrical installation Page 73
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
The output driver at the signal output provides differential signals (5 V) as per the RS422 interface
standard. Up to 32 additional servo controllers can be controlled by one device.
Mating plug X11
INFORMATION
Mating plug
ARS 2320/40/60W FS
X11
D-SUB connector, 9-pin type, male
Housing for a 9-pin D-SUB connector with locking screws of type 4/40 UNC
Recommended cable type or comparable:
 We recommend using encoder connecting cables in which the incremental encoder signals are
twisted in pairs and the individual pairs are shielded.
8.12 Ethernet communication [X18]
The ARS 2300 FS servo drive comprises a Ethernet communication interface, which is for connection via
PC and for using the parameterisation tool Metronix ServoCommander
®

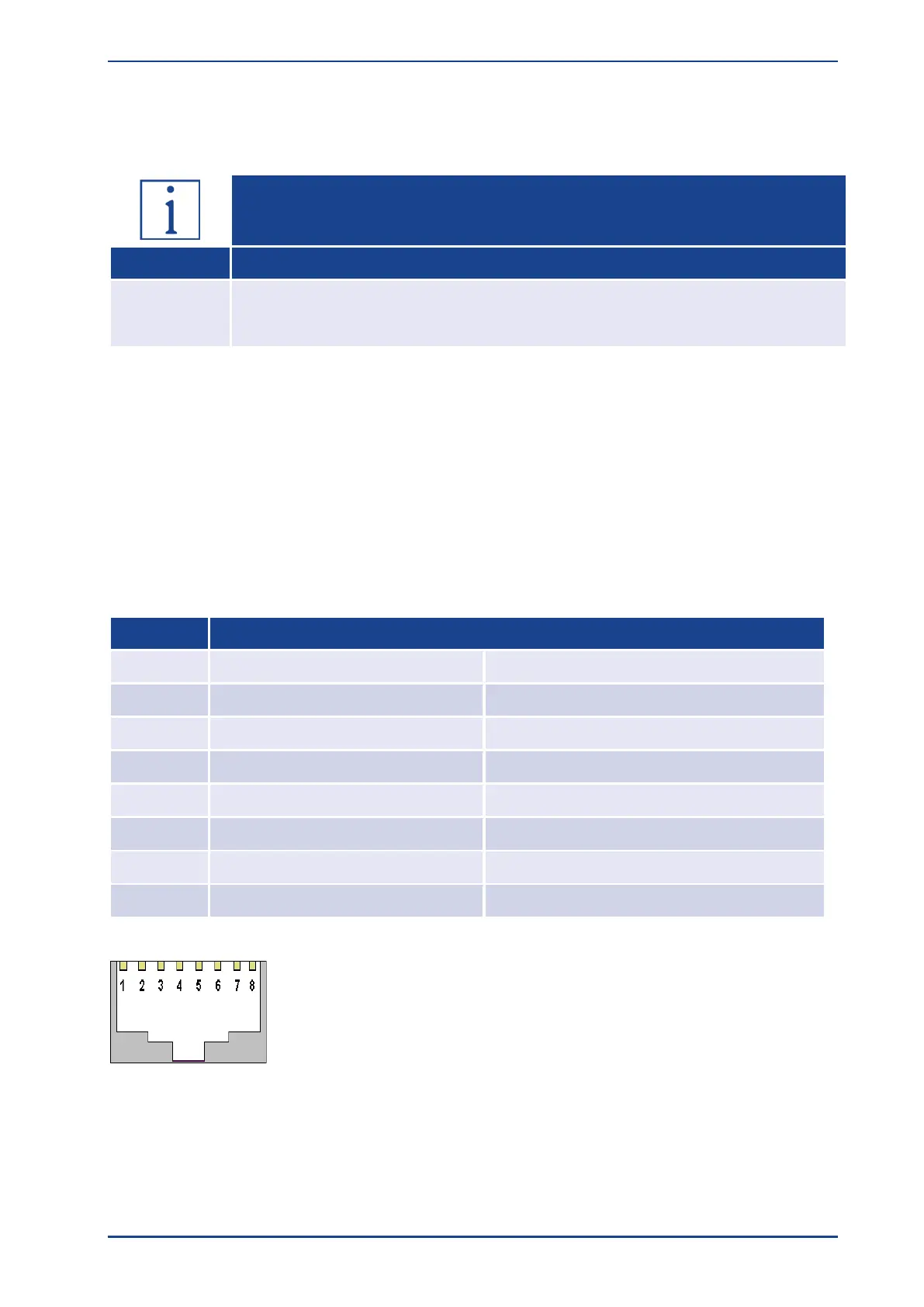

Pin assignment X18 Ethernet
Pin No.
Specification
1
Transmission signal + ( TX+ )
Pair 3
2
Transmission signal- ( TX- )
Pair 3
3
Receiver signal + ( RX+ )
Pair 2
4
nc
Pair 1
5
nc
Pair 1
6
Receiver signal- ( RX- )
Pair 2
7
nc
Pair 4
8
nc
Pair 4
Figure 35: Pin assignment: Ethernet interface [X18]
