Metronix ARS 2320 FS - Device View ARS 2320 FS

Mechanical installation Page 35
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
7.2 Device view ARS 2320 FS
100 mm free space for sufficient
ventilation
LEDs + 7 Segment display:
- Ready / Error
- Enable
- Can On
- Status display
FSM module:
- FSM 2.0 FBA
- Optional FSM 2.0 STO
- Optional FSM 2.0 MOV
Technology slot such as:
- PROFIBUS-DP
- PROFINET
- EtherCAT
Terminating resistor for CANopen
SD-Card slot
Boot action
X19: USB
X18: Ethernet
X4: CAN
X5: RS232
RESET button
100 - 150 mm free space for
sufficient ventilation
X9B: 24VDC Supply

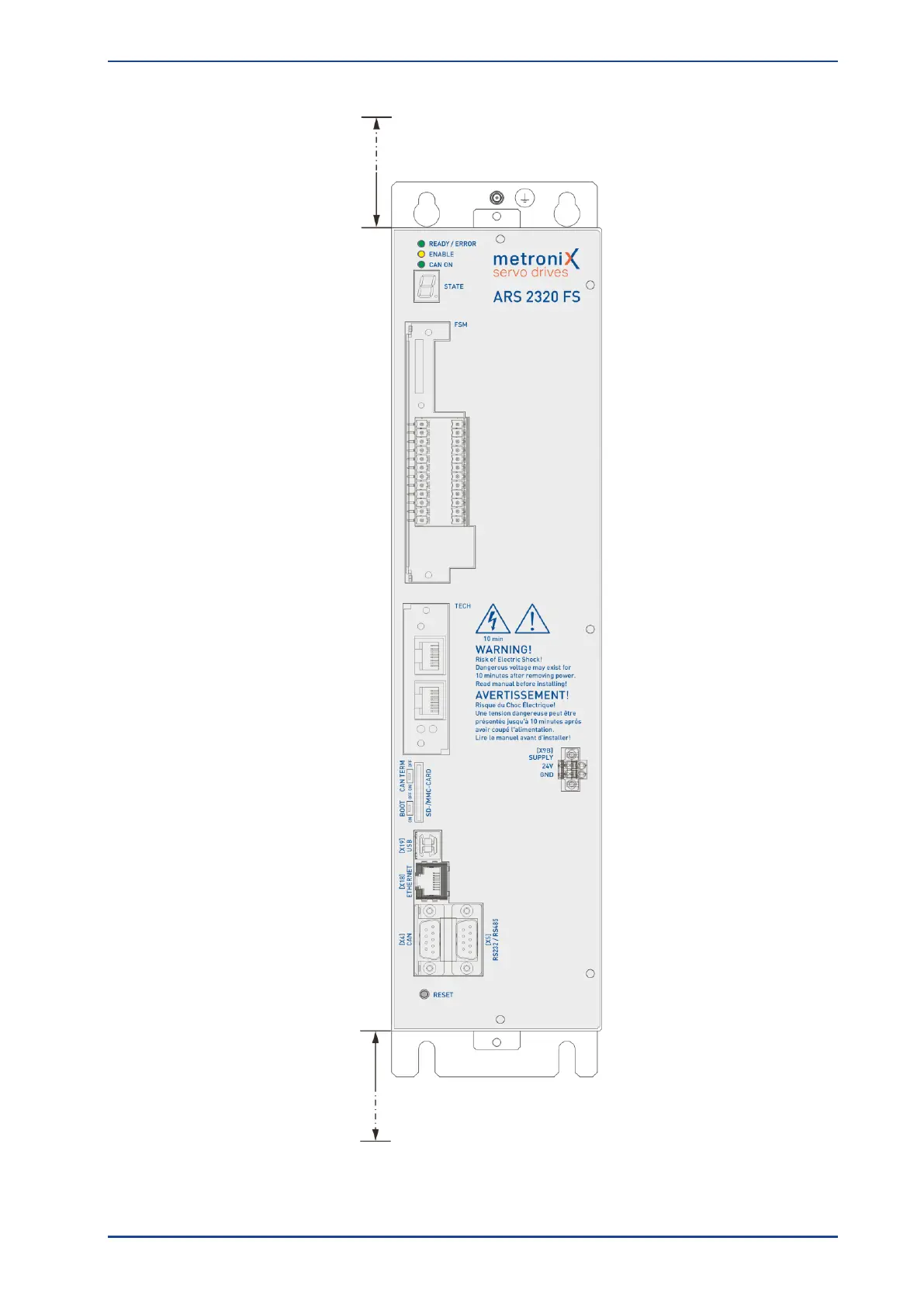

Figure 6: Servo drive ARS 2320 FS: Front view and Installation space
