Page 76 Electrical installation
Product Manual / Mounting Instructions „Servo drives ARS 2320 FS, ARS 2340 FS and ARS 2360W FS“ Version 1.0
SD-Card slot
Technical data
Card types
SD/SDHC/MMC
File systems
FAT16 and FAT32
Functions
Load a parameter set (DCO file), save the current parameter set (DCO
file), load a firmware file
File names
Only file and directory names according to the 8.3 standard are
supported.
INFORMATION
8.3 file and directory names have a maximum of eight characters (letters or numbers)
followed by a full stop/period (".") and an extension with a maximum of three
characters. In addition, only upper-case letters and numbers are permissible in the file
and directory names.

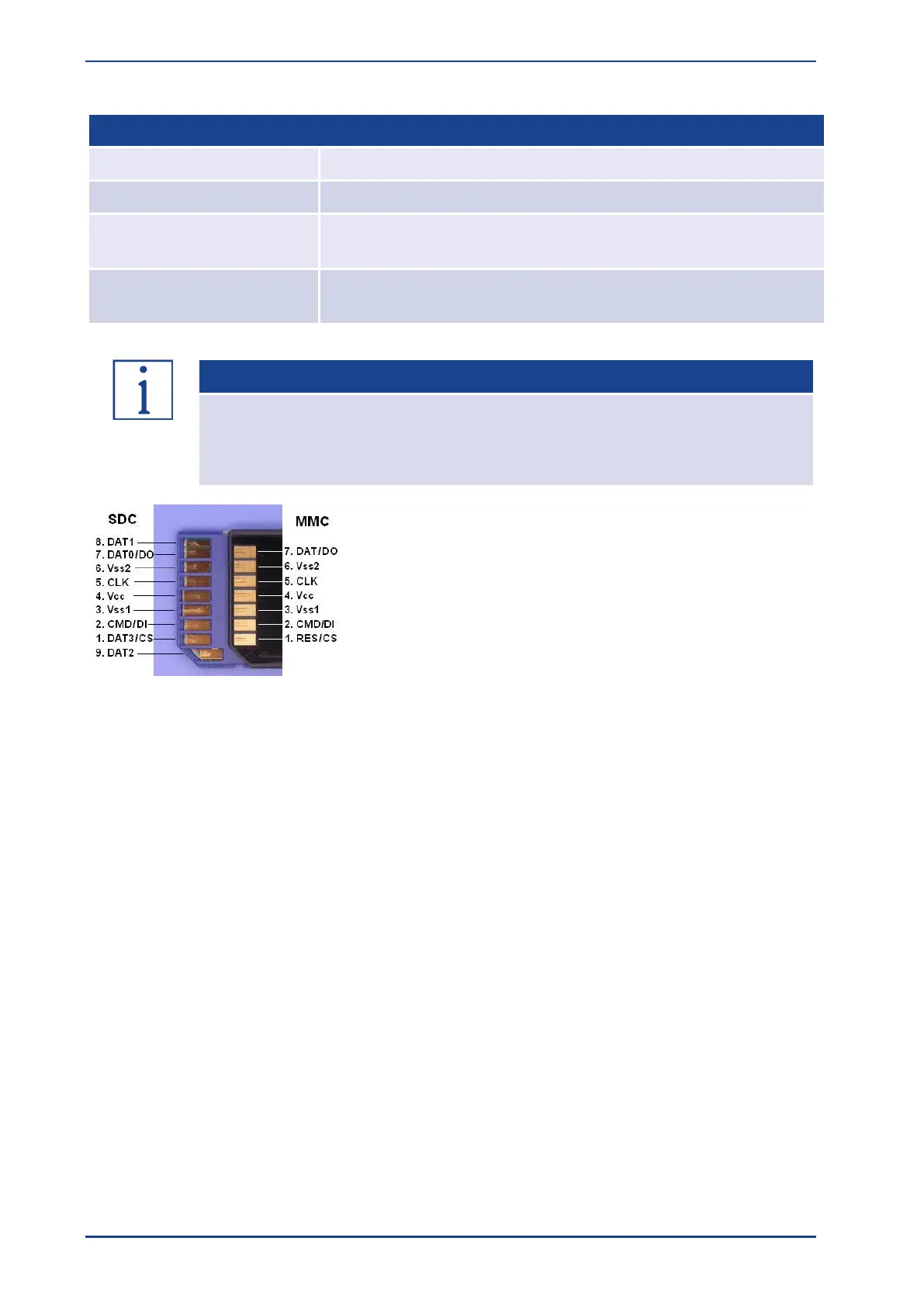

Figure 37: Pin assignment: SD card
8.14.1 BOOT-DIP-Switch
During a restart/reset, the BOOT-DIP-Switch is used to determine whether to perform a firmware
download from the SD-/MMC-Card or not. The position of the switch is shown in Figure 6.
 BOOT-DIP-Switch in position “ON”  firmware download requested
 BOOT-DIP-Switch in position “OFF”  firmware download not requested
If there is no SD-/MMC-Card in the card slot of the servo drive and the BOOT-DIP-Switch is in the
position “ON” (firmware download requested), the error 29-0 is triggered after a restart/reset.
This error stops all further performances. This means that there is no communication possible via USB.
