XTreme-EMS Operating Manual Page 42

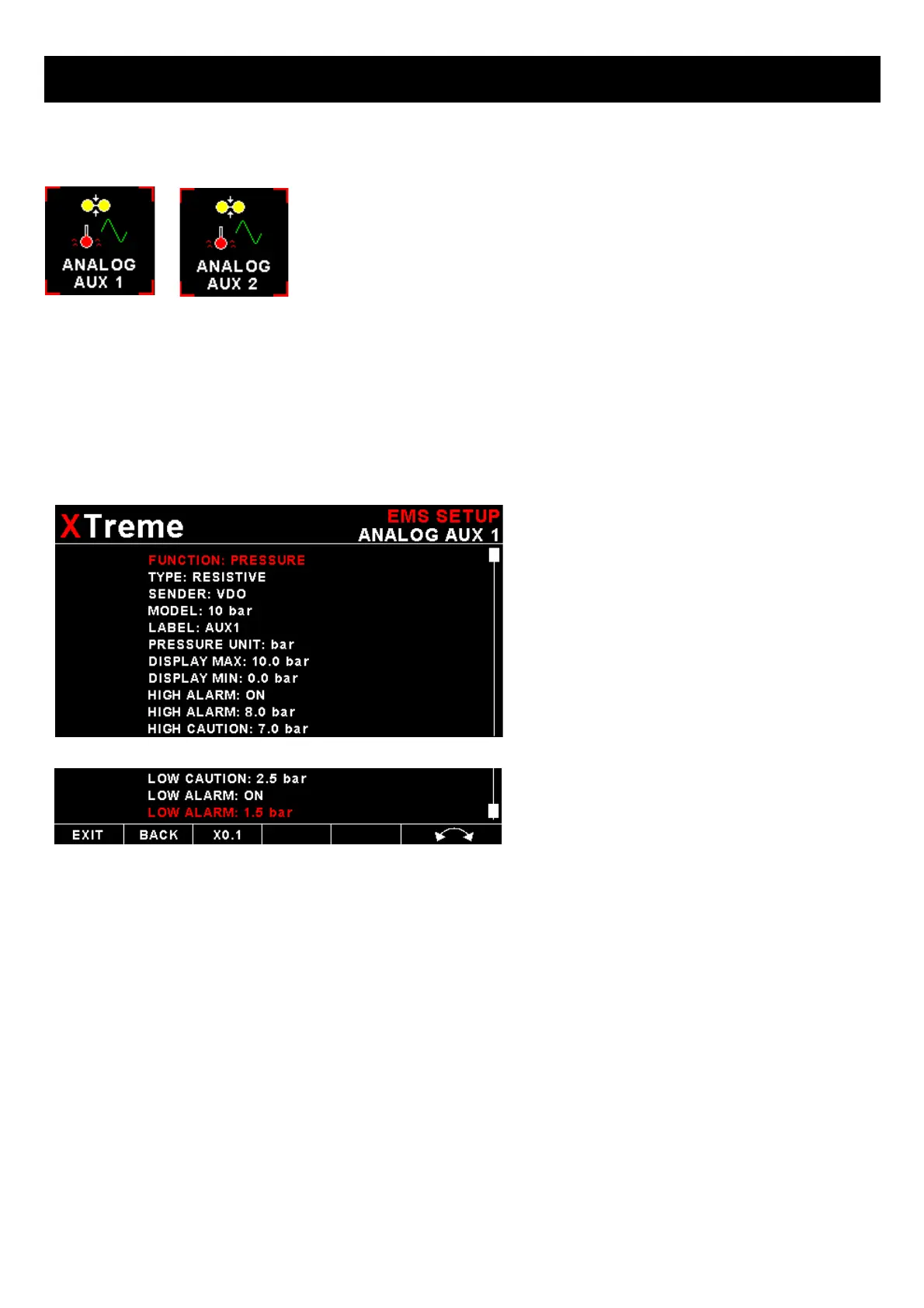

4.3.8 Auxiliary Analog 1, 2 Setup
The analog AUX 1,2 channels on the RDAC are general purpose channels that can be used for pressure, temperature or
current.
FUNCTION:
Select the function for the analog channel. Options are “PRESSURE”, “TEMPERATURE”, “CURRENT” or “OFF”.
If the “PRESSURE” function is selected:
TYPE:
Select if you are using a resistive, 4-20mA or 0-5V output pressure sender.
If the “RESISTIVE” pressure sender is selected
SENDER:
Select what type of resistive pressure sender you are using. Select “VDO” for VDO / resistive senders, “USER” for a
custom sender.
MODEL:
Select which VDO pressure sender you are using. A selection between a VDO 2, 5 or 10 Bar can be selected.
