MGL Avionics XTreme - EMS - 8 Installation; 8.1 Connection Diagram

XTreme-EMS Operating Manual Page 66
10 Installation

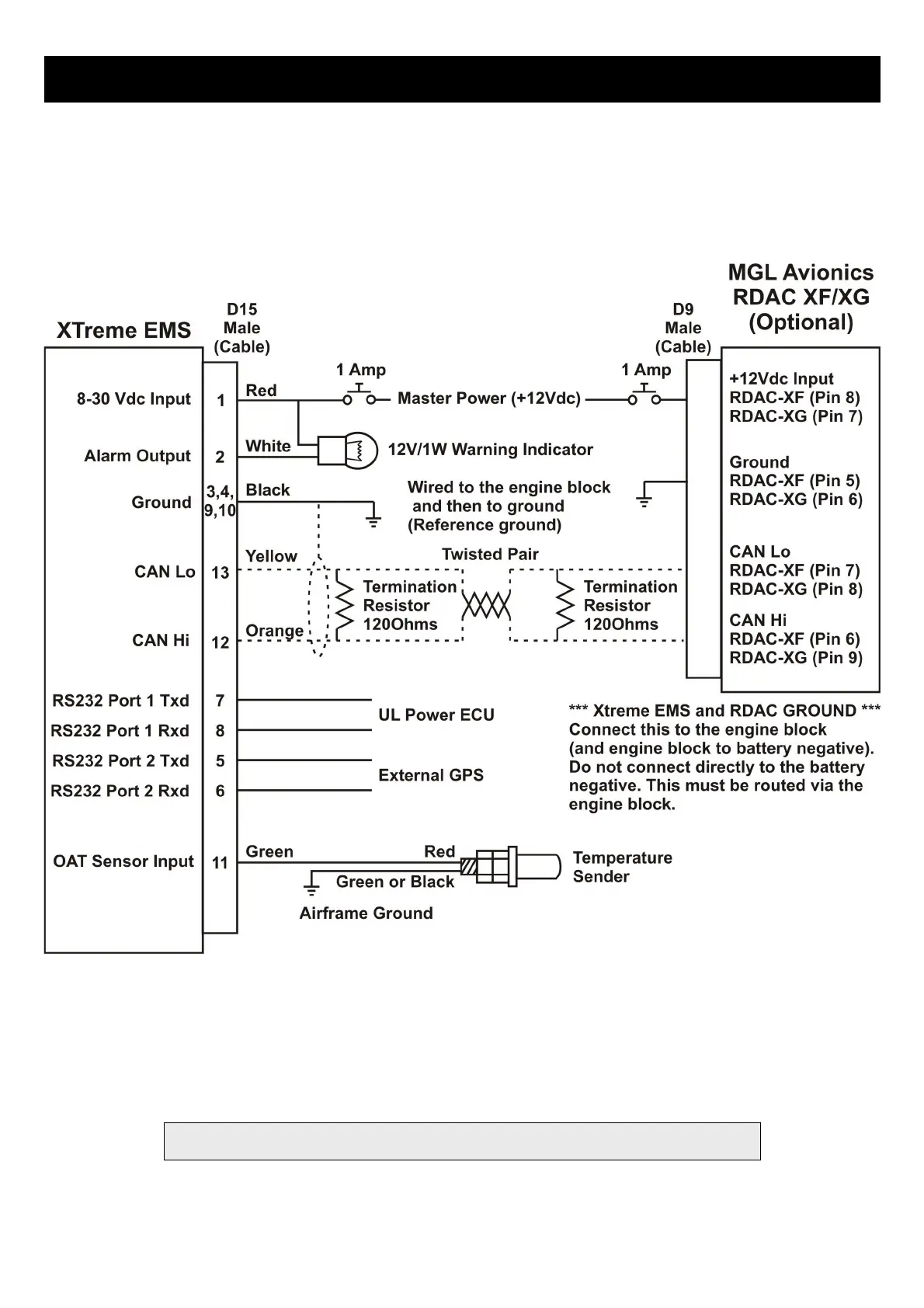

10.1 Connection Diagram
The use of an external 1A fuse is recommended. Connect the supply terminals to your aircraft’s power supply. The
XTreme-EMS can be used on both 12V and 24V without the use of any pre-regulators. Ensure that the supply voltage will
not drop below 8V during operation as this may result in incorrect readings.
Please see RDAC documentation for installation and usage.
