XTreme-EMS Operating Manual Page 5

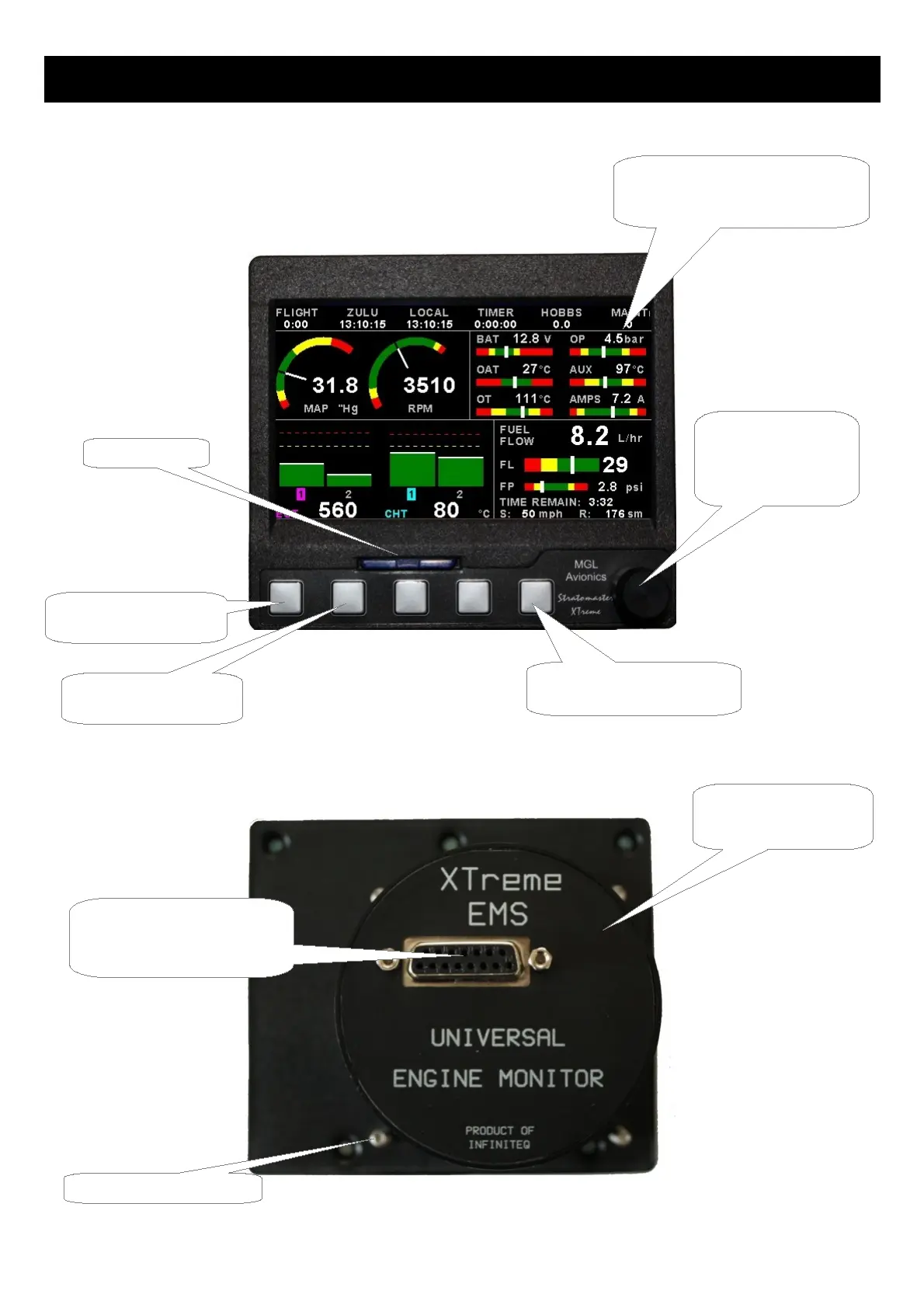

2 XTreme-EMS Layout

2.1 Front layout

2.2 Rear layout

Rotary control. Press

to access the quick

select menus and main

Press for the previous

display screen

Press to advance to the

next display screen

D15 Input connector

(Power, Communications,

OAT probe and alarm output )

Fits into a standard

3 1/8” (80mm) instrument

Panel hole

Metric M4 Mounting Bolts

SD card slot

Press to display the EGT

/ CHT trend graphs

4.3” high resolution (480x2720,

Sunlight readable, wide viewing

Angle, 1000cd/m2 LCD display
