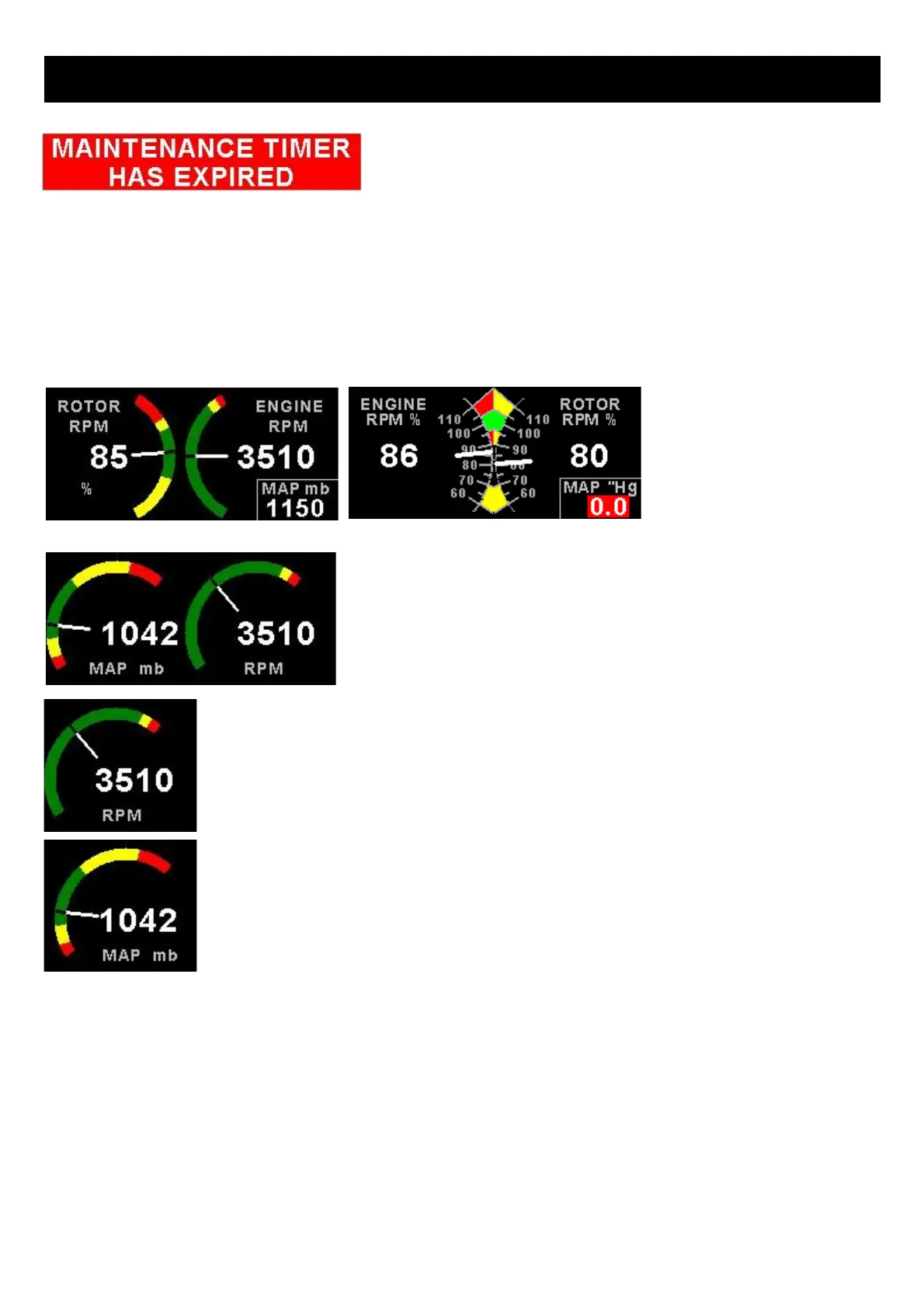

XTreme-EMS Operating Manual Page 8
A maximum of 999 hours can be entered as a maintenance interval. A
reminder message will appear on startup when zero hours are
remaining. The reminder message will automatically disappear after 10
seconds or if the pilot presses any key. Engine running time for the
purpose of the maintenance timer is defined as the run time where the engine RPM is greater than the “HOBBS
MINIMUM RPM” value as set in the “TIMERS SETUP”.
3.1.2 RPM / Rotor / MAP display section
The RPM/Rotor/MAP section will maximize the space according to which parameter RPM/Rotor/MAP is enabled. The
RPM, Rotor and MAP parameters can be configured in the “EMS SETUP” menu.
RPM 1, RPM 2 and MAP
enabled.
RPM and MAP enabled.
RPM only enabled
MAP only enabled
