XTreme-EMS Operating Manual Page 67

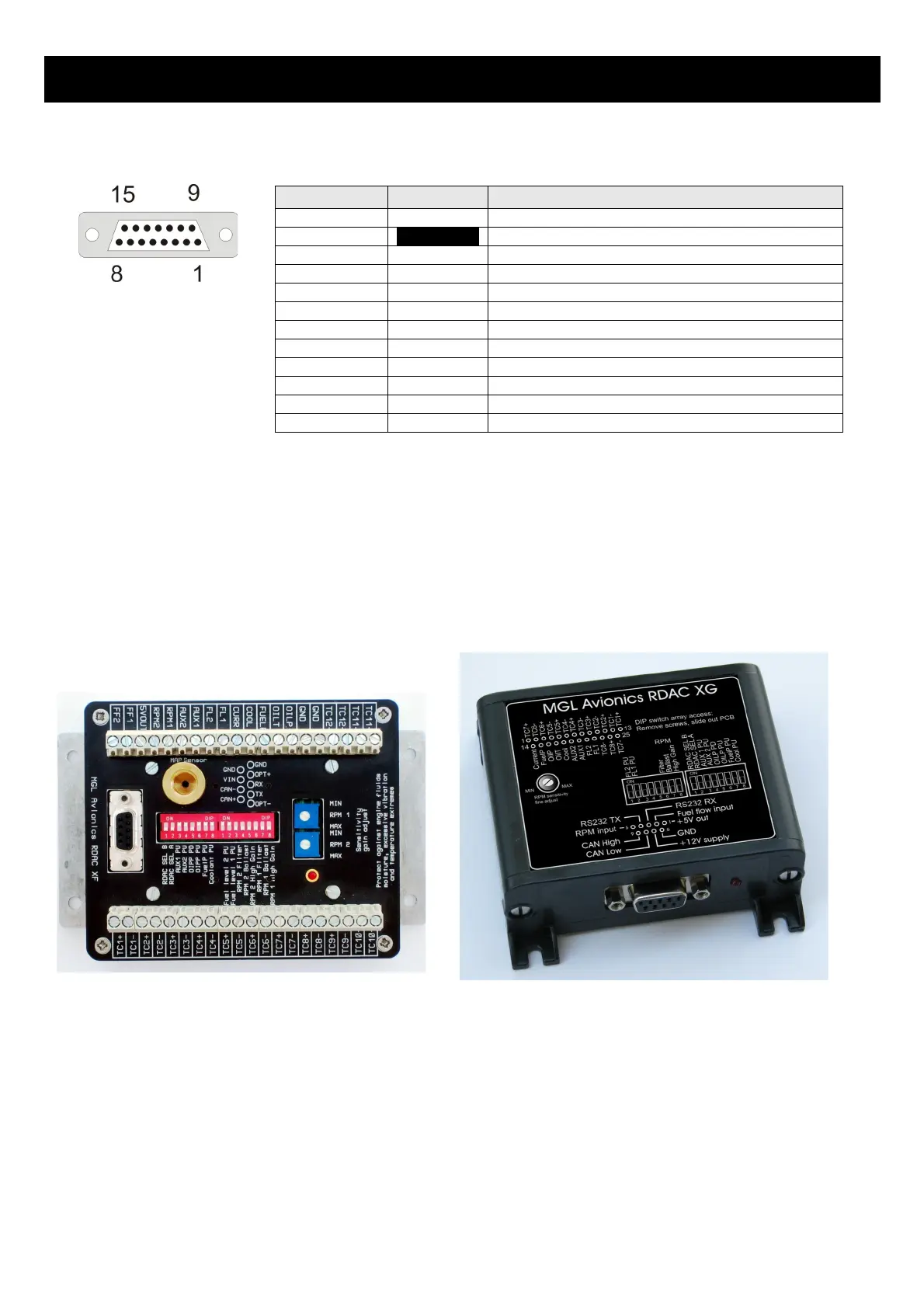

10.2 Cable connections
D15 Male
NC = Not Connected
The XTreme-EMS has a D15 Female connector. The connecting cable must have a D15 male connector attached to it.
10.3 MGL Avionics RDAC-XF, RDAC-XF MAP and RDAC-XG
RDAC-XF / RDAC-XF (MAP) RDAC-XG
Please see the RDAC-XF / RDAC-XG documentation for installation and usage.
DB 15 Pin Color Function
1 Red 8-30Vdc power
2 White Alarm Output
3,4,9,10 Black Ground
5 NC RS232 Port 2 Transmit
6 NC RS232 Port 2 Receive
7 NC RS232 Port 1 Transmit
8 NC RS232 Port 1 Receive
11 Green OAT Probe
12 Orange CAN High
13 Yellow CAN Low
14 NC No Connection
15 NC No Connection
