Functional Principle, Technical Data
scanCONTROL 30xx
3. Functional Principle, Technical Data
3.1 Short Description
3.1.1 Measuring Principle
The scanCONTROL 30xx sensor operates according to
the principle of optical triangulation (light intersection
method):
- A laser line is projected onto the target surface via a
linear optical system.
- The diffusely reflected light from the laser line is
replicated on a sensor matrix by a high quality optical
system and evaluated in two dimensions.
The laser line triangulation corresponds in principle to
the triangulation of a laser point. In addition, during the
measurement a row of lines are simultaneously illumi-
nated by the laser line. Apart from the distance informa-
tion (Z-axis), the exact position of each point on the laser
line (X-axis) is also acquired and output by the system.

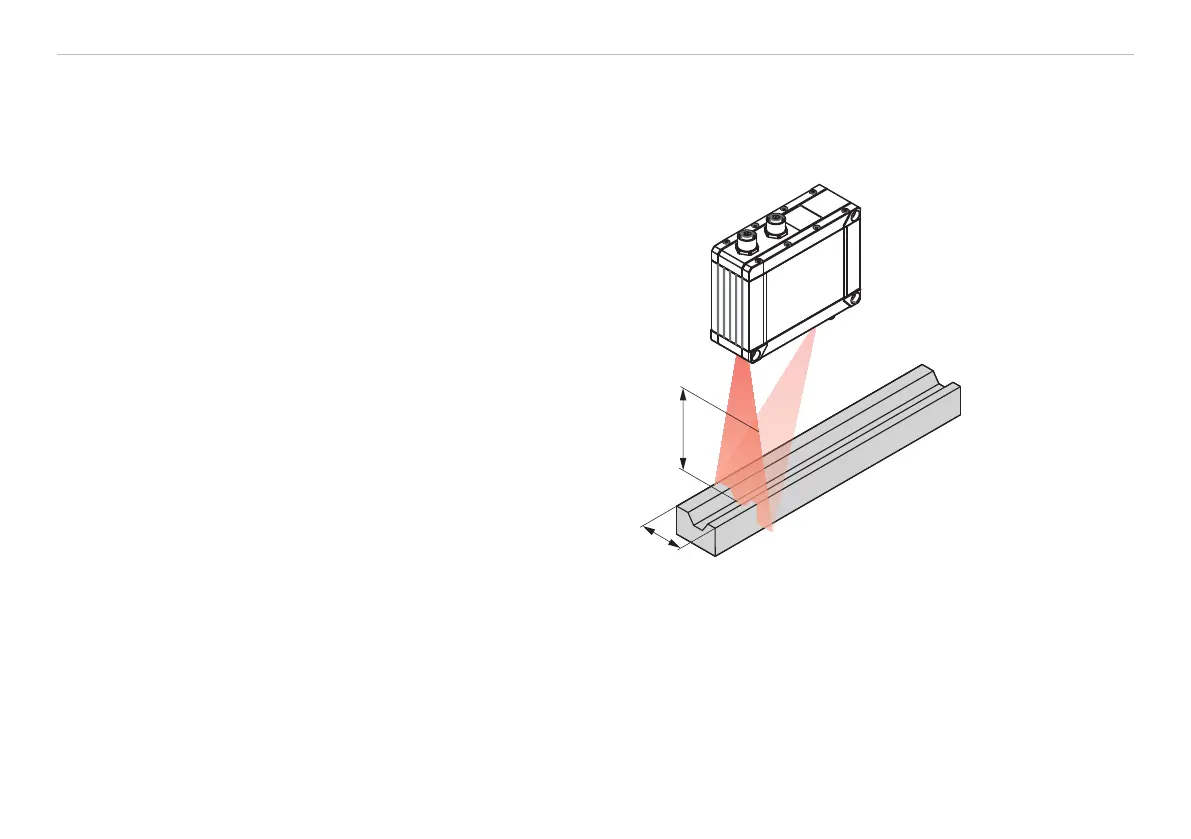

Measuring range
X-axis (profile width)
Measuring
range Z-axis
(profile height)
3.1.2 System Setup
The scanCONTROL 30xx sensor is a compact sensor with an integrated controller. All necessary integral parts are combined in one
housing.
