Page 55
2D/3D Gateway
scanCONTROL 30xx
8. 2D/3D Gateway
2D/3D Gateway allows for scanCONTROL SMART sensors to be integrated into various fieldbus systems:
- PROFINET
- EtherNet/IP
- EtherCAT
All measurement results obtained from the profile evaluation carried out of a scanCONTROL SMART sensor can be transmitted to a
PLC via one of these fieldbus systems. Furthermore, all scanCONTROL sensor settings can be set via the 2D/3D Gateway
(e. g. Laser on/off or load User Mode).
Sensor
parameterization
Power supply
Triggering
Encoder
Synchronization
Mode switching
Sensor control
Gateway parameterization
USB
2D/3D Gateway
Laser
Data
Error
Laser
Data
Error
Ethernet
Switch

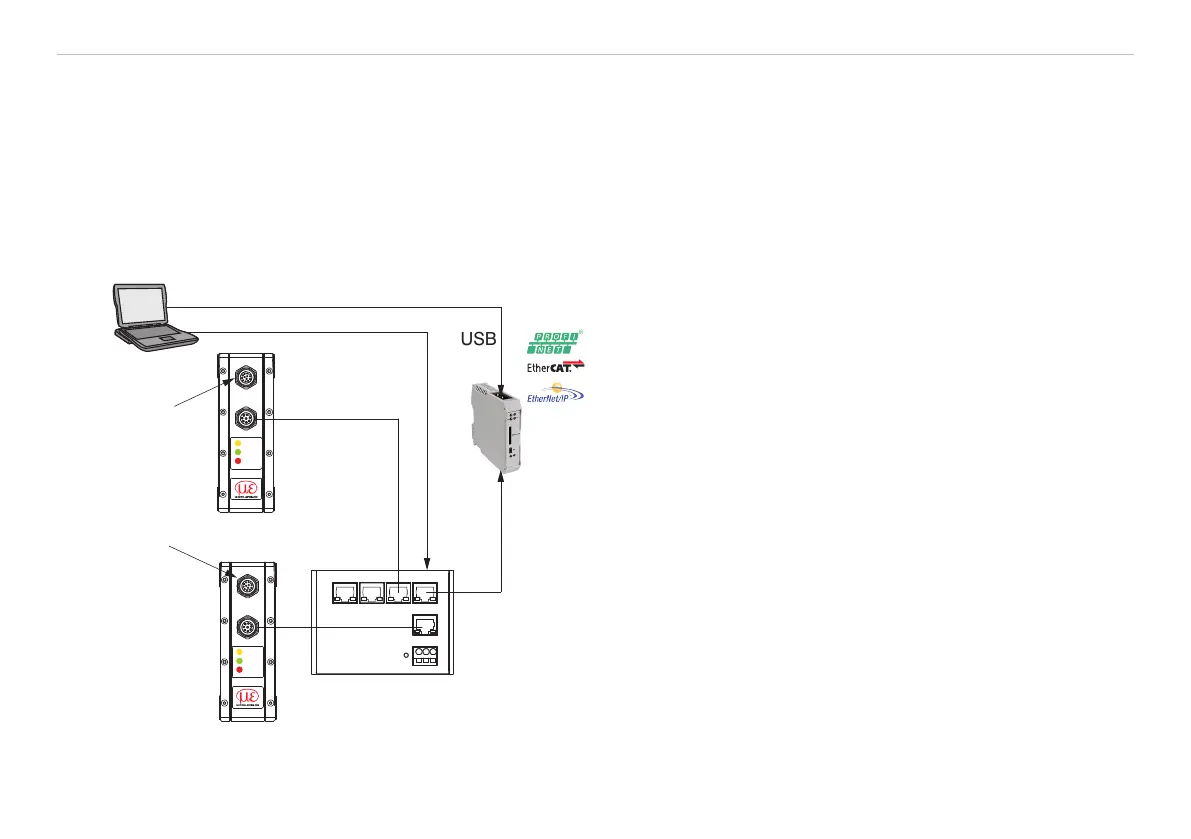

Fig. 34 Network layout for using 2D/3D Gateway
The 2D/3D Gateway can connect up to four scanCONTROL SMART sensors to the fieldbus. Measurement values are
transmitted at up to 500 Hz. Please refer to the TechNote T026 (scanCONTROL fieldbus integration) for more details.
