2D/3D Output Unit
scanCONTROL 30xx
7.4.4 OU-AnalogOut/4-Channel/0-10 V
- Micro-Epsilon order no. 0325135
- 4-Channel analog output module DC 0-10 V
- Indicators (Status-LED’s, for detailed description refer to manual of the
4-Channel analog output module DC 0-10 V)
- Voltage range is terminal-related 0 to +10 V and can not be extended by
changing the appropriate setting in scanCONTROL Configuration Tools.
- The output signal is galvanically isolated output from the system level.
- The resolution is limited to 12 bits.
- scanCONTROL 30xx supports four analog outputs.

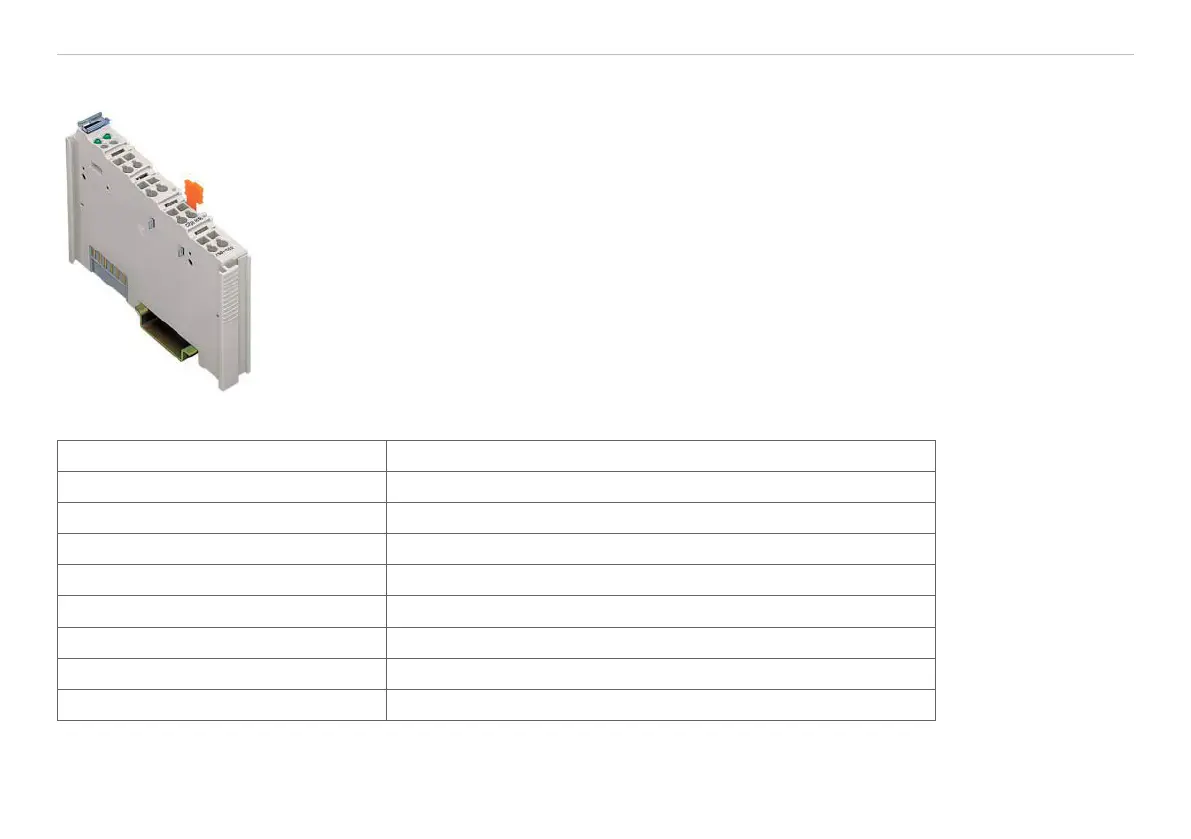

Fig. 32 4-Channel-AnalogOut-Modul
Number of outputs 4
Power supply via system voltage DC/DC
Signal voltage 0 V ... 10 V
Load > 5 kΩ
Resolution 12 bit
Conversion time typ. 10 ms
Setting time typ. 100 µs
Measurement error at 25 °C <± 0.1 % of full scale (FS)
Temperature coefficient <± 0.01 % /K of full scale (FS)
Fig. 33 Technical data of analog output module
