2D/3D Output Unit
scanCONTROL 30xx
7.4.3 OU-DigitalOut/8-Channel/DC24 V/0.5 A/High-side Switching/8 Actuators
- Micro-Epsilon order no. 0325115
- The 8-Channel digital output module DC 24V 0.5 A is short-circuit-proofed,
high-side switching, for TS35, CAGE CLAMP® connections, 8 actuators.
- The field level is galvanically isolated to the system level.
- The indicators (Status LED’s) additionally show the status of the digital
outputs (IO/NIO),
for detailed description refer to manual of the 8-Channel digital output
modules DC 24 V 0.5A, 8 actuators, high-side switching
- Actuators can be operated at all digital outputs and be wired directly via
DO 1/2/3/4/5/6/7/8.
- scanCONTROL 30xx supports eight digital outputs.

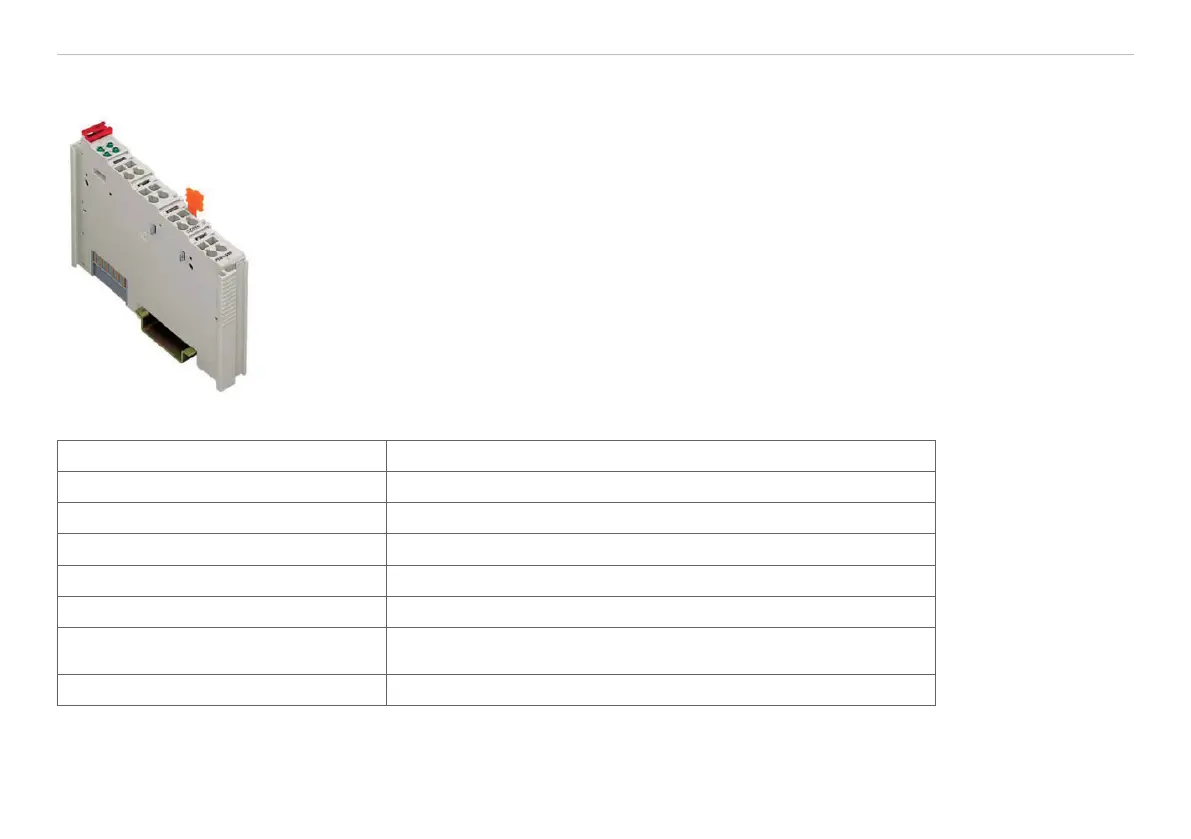

Fig. 30 8-Channel DigitalOut-Module
Number of outputs 8
Current consumption (internal) 25 mA
Voltage via power jumper contacts DC 24 V (-25 % / +30 %)
Type of load resistive, inductive, lamps
Switching rate
max.
2 kHz
Output current 0.5 A short-circuit-prooved
Energy dissipation W
max.
(unique switching off)
0.9 J
L
max.
= 2 W
max.
/I²
Current consumption typ. (field side) 15 mA (per module) + load
Fig. 31 Technical data of the digital output module
