MICRO-EPSILON scanCONTROL 30 Series - Specification of the Components; Output Unit Basic

Page 51
2D/3D Output Unit
scanCONTROL 30xx
7.4 Specification of the Components
7.4.1 Output Unit Basic
Micro-Epsilon order no. 6414073
Consists of
- OU-Fieldbus Coupler/Ethernet
- OU-Filter module
- OU-Bus termination module
- Interfaces: 2x Ethernet to connect
scanCONTROL 30xx sensors.
- Indicators (Status LED’s, for detailed description refer to the manual
of the OU-Fieldbus Coupler/Ethernet)
- The system supply is already mounted to the Fieldbus Coupler.

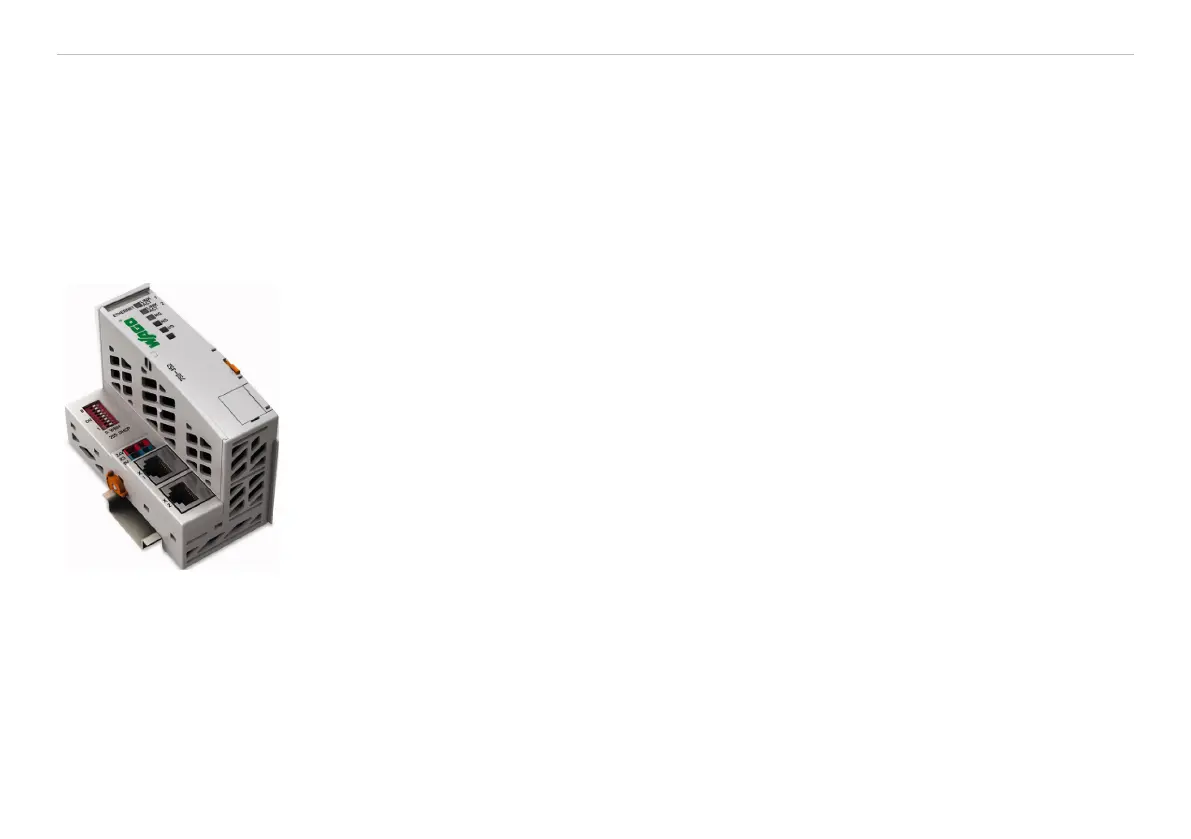

Fig. 28 OU-Fieldbus Coupler/Ethernet with system supply module
