B-4 Workstation 4 Setup Guide
Connector and Cable Diagrams
IO Panel Connectors
10/100 Ethernet Connector
The pin-out for the 10/100 Ethernet port is shown in Figure B-4, below.

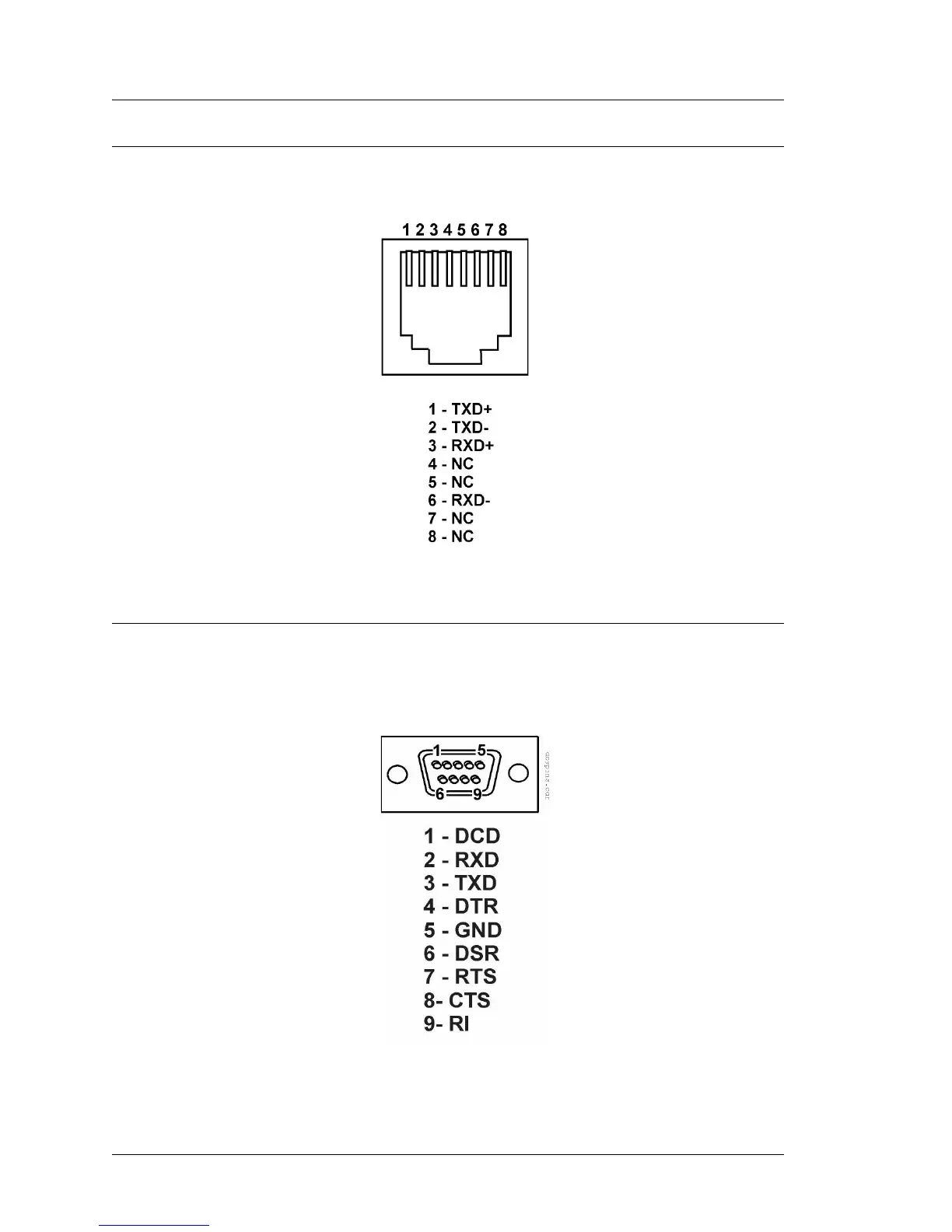

Figure B-4: 10/100 Ethernet Connector Diagram
RS232 Connector
A single DB9F RS232 connector assigned to COM1 is provided. The pin-out is
shown below.
Figure B-5: DB9 RS232 Connector Diagram
