Workstation 4 Setup Guide B-5
Connector and Cable Diagrams
IO Panel Connectors
USB Connectors
A pair of USB ports are located on the IO panel, shown in Figure B-6, below.

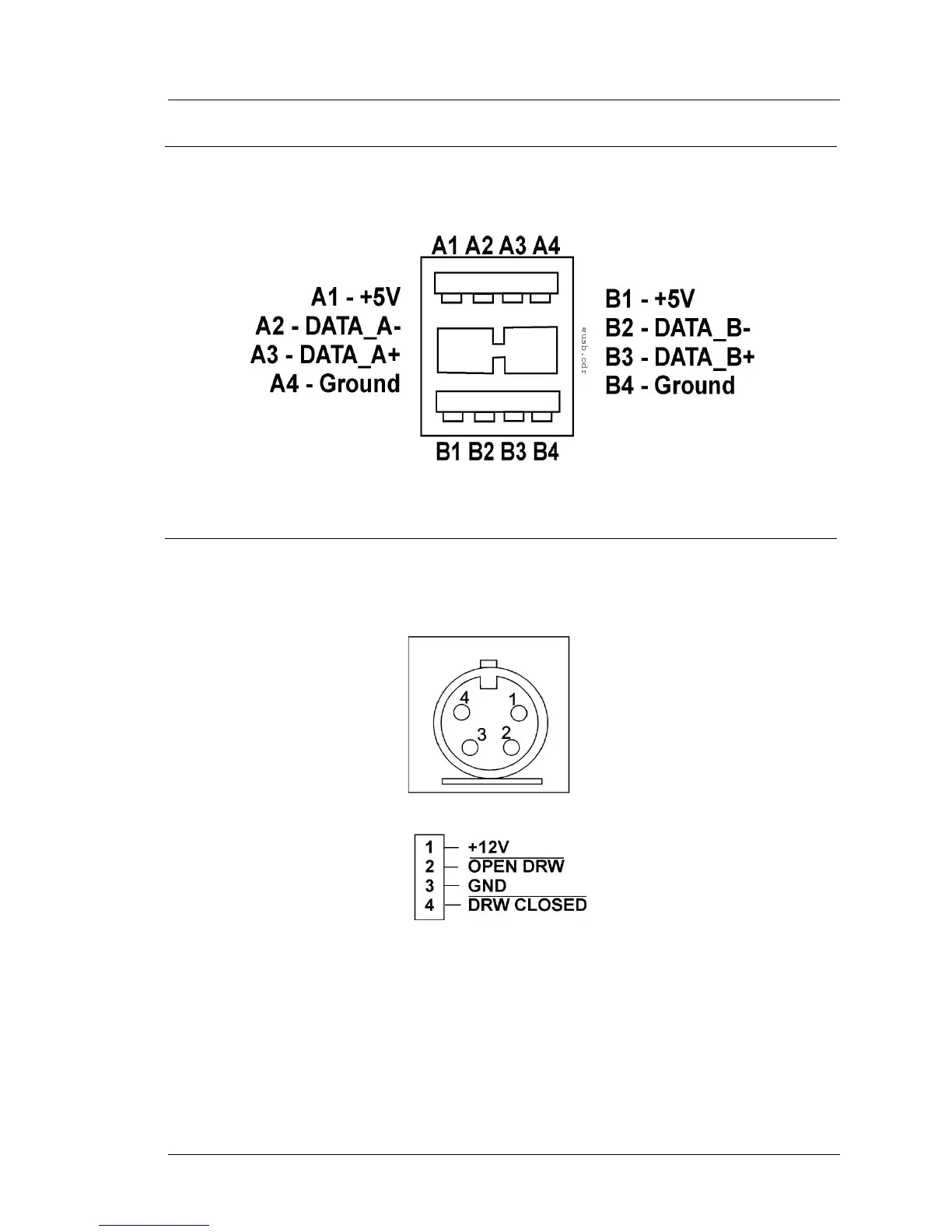

Figure B-6: Universal Serial Bus Connector Diagram
Cash Drawer 1 and 2 Connectors
Figure B-7: Cash Drawer Connector Diagram
