Workstation 4 Setup Guide 3-11
Installing and Operating the Workstation 4
Operation
Turning the Workstation from NOPOWER to ON
When the WS4 is in the NOPOWER state, the Operator LCD will be blank and
the Operator LED is off. See Chapter 1 for a complete description of the
Workstation 4 power management states.
1. Be sure the workstation is connected to AC power.
2. Press the power button for 2 seconds, then release it.
• The Operator LED turns Orange as soon as you press the power button,
then starts blinking every four seconds until the WS4 boots to the OS.
• The Internal Beeper produces a single beep.
• The Operator LCD displays a boot splash screen similar to that shown
in Figure 3-5. A progress bar centered under the logo indicates that the
workstation is proceeding with the boot process. The Windows CE
operating system will start in approximately 60 seconds.

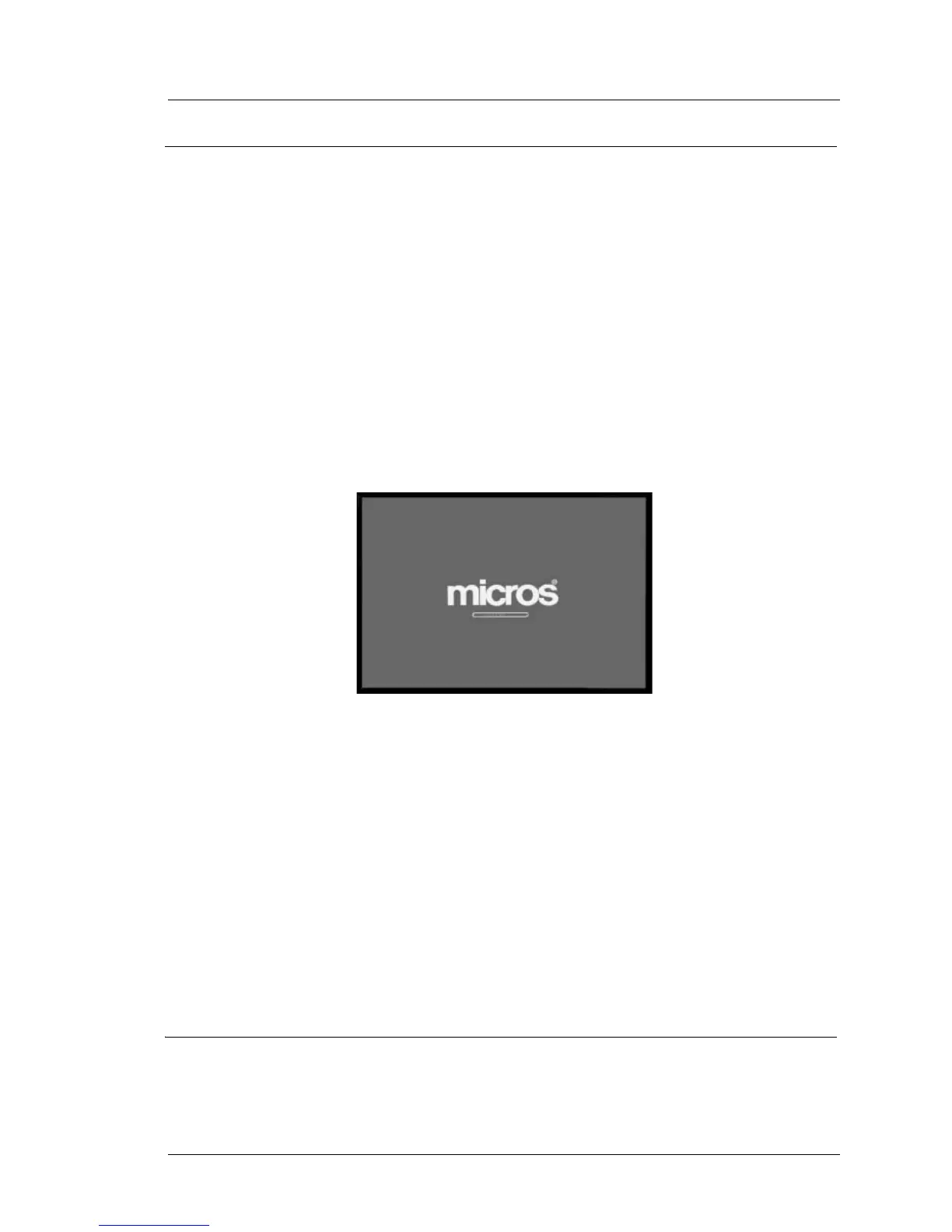

Figure 3-5: Workstation 4 Boot Splash Screen
• When the workstation completes booting to the operating system, the
Operator LED turns solid Green.
• If you are starting the WS4 as part of a new installation, see the section
entitled ‘Starting the Workstation for the First Time’ found later in this
chapter.
• Otherwise, Windows CE will start the MICROS Client Application
Loader (CAL) which in turn starts the POS application, presenting the
operator with a sign-on screen.
• If the WS4 boot splash screen does not appear, the progress bar stops, or
the beeper sounds more than once, refer to Chapter 4 for troubleshooting
information.
Turning the Workstation from ON to NOPOWER
1. Press and hold the power button until the Operator LED changes from solid
Green to OFF, then release it. This takes about 4 to 5 seconds.
