B-6 Workstation 4 Setup Guide
Connector and Cable Diagrams
IO Panel Connectors
PS2 Mouse/Keyboard Connectors

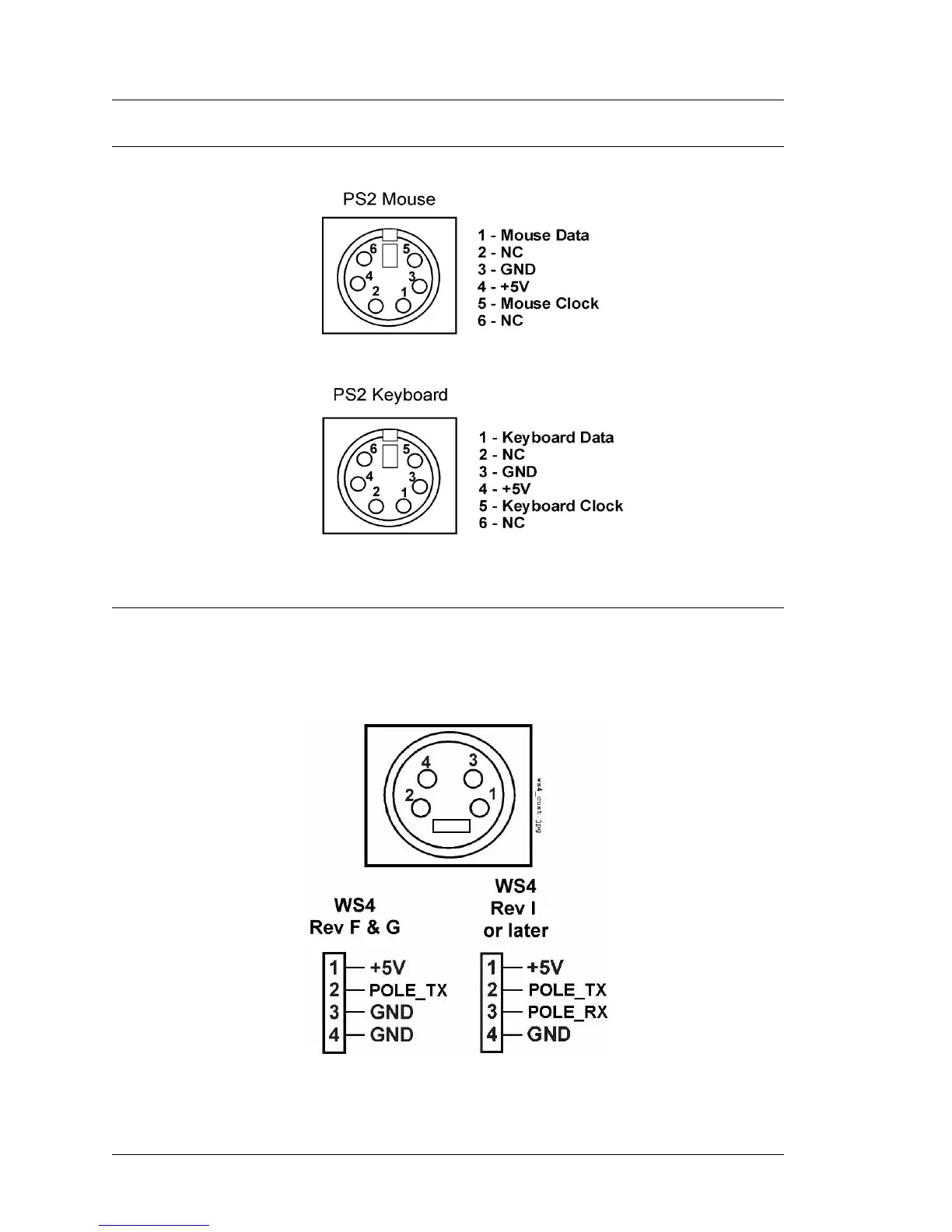

Figure B-8: PS2 Mouse and Keyboard Connector Diagrams
Remote Customer Display Connector
This port supports either the 2x20 VFD customer display or the graphics based
LCD customer display.
Figure B-9: Customer Display Connector Diagram
