Workstation 4 Setup Guide B-7
Connector and Cable Diagrams
System Board Connectors
System Board Connectors
This section details connectors located on the Workstation 4 system board.
Magnetic Stripe Interface
The internal magnetic card reader connector is CN10, located on the system
board. The pin-outs for this connector are shown in Figure B-10,

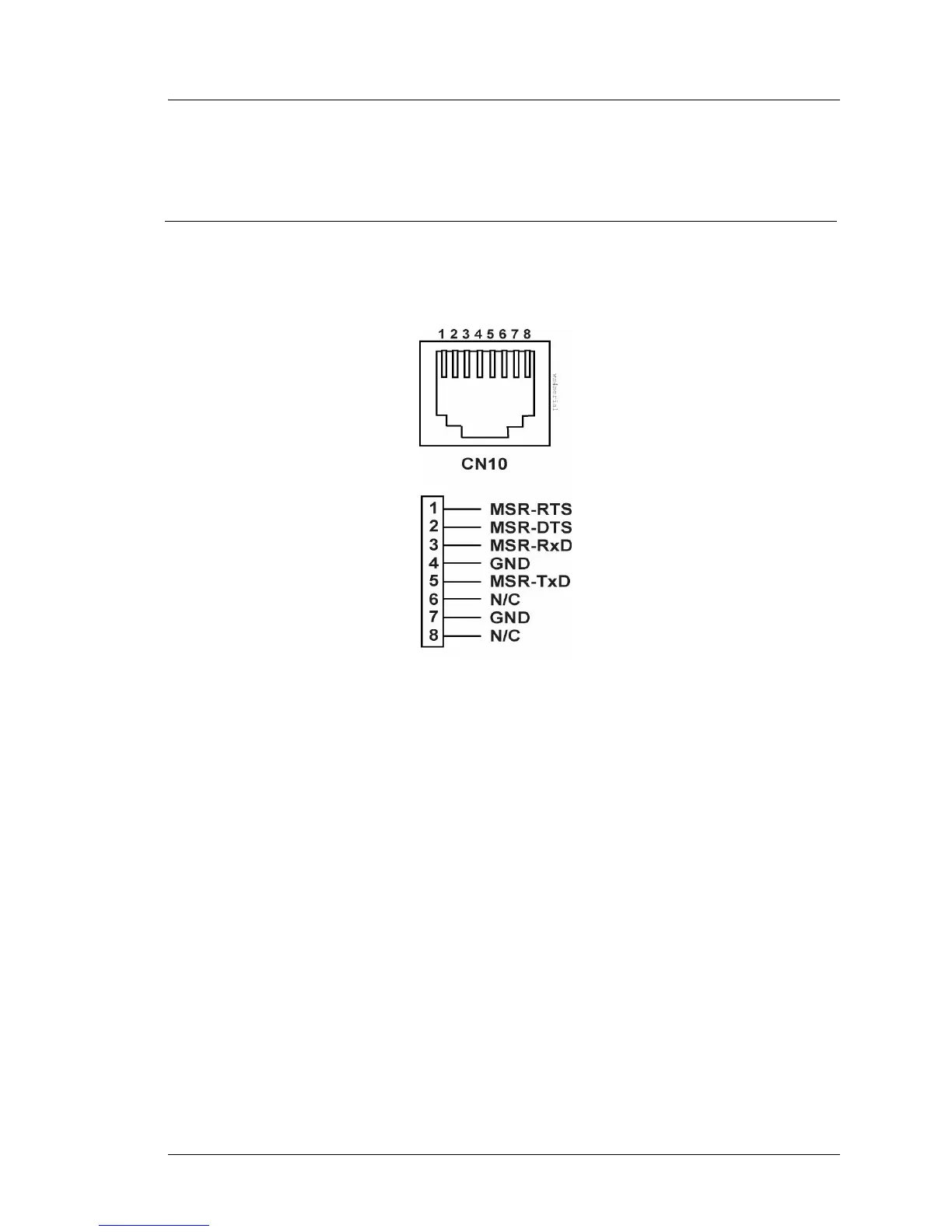

Figure B-10: System Board Magnetic Card Reader Connector
