B-8 Workstation 4 Setup Guide
Connector and Cable Diagrams
Hook-up Cables
Hook-up Cables
The following pages show wiring diagrams of various hook-up cables that may
be used with the Workstation 4.
RS232 from the RS422-A and RS422-B Ports

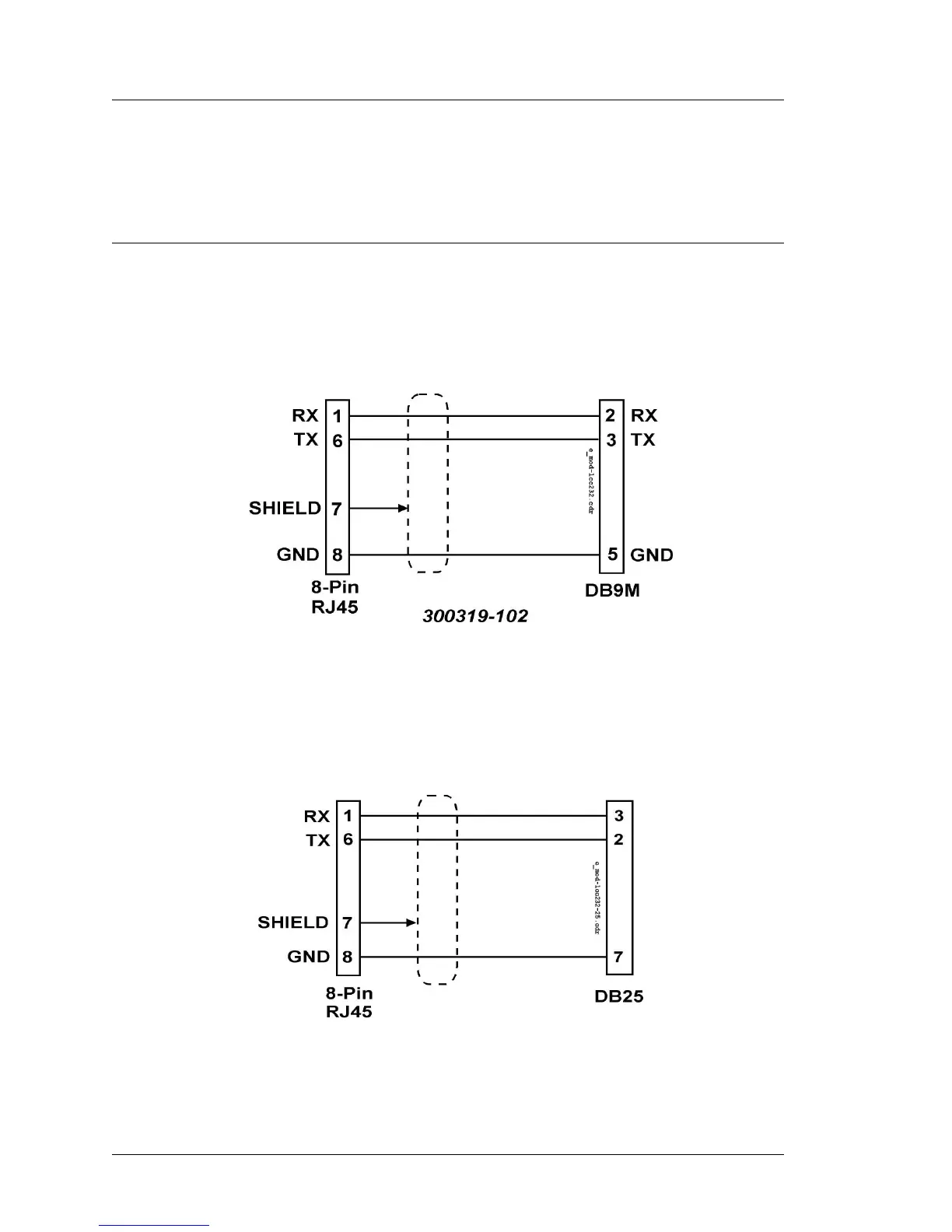

Figure B-11 shows a cable that includes the RS232 signals from RS422-A and
RS422-B ports to a DB9 male connector. This cable is available from
MICROS by ordering P/N 300319-102.
Figure B-11: Modular LCC/RS232 to DB9 Male Connector
Figure B-12 shows a cable diagram that adapts the same RS422-A and
RS422-B ports to a DB25 connector.
Figure B-12: Modular LCC/RS232 to DB25 Connector
