Model SP-8 &10
2. Component IdentIfICAtIon

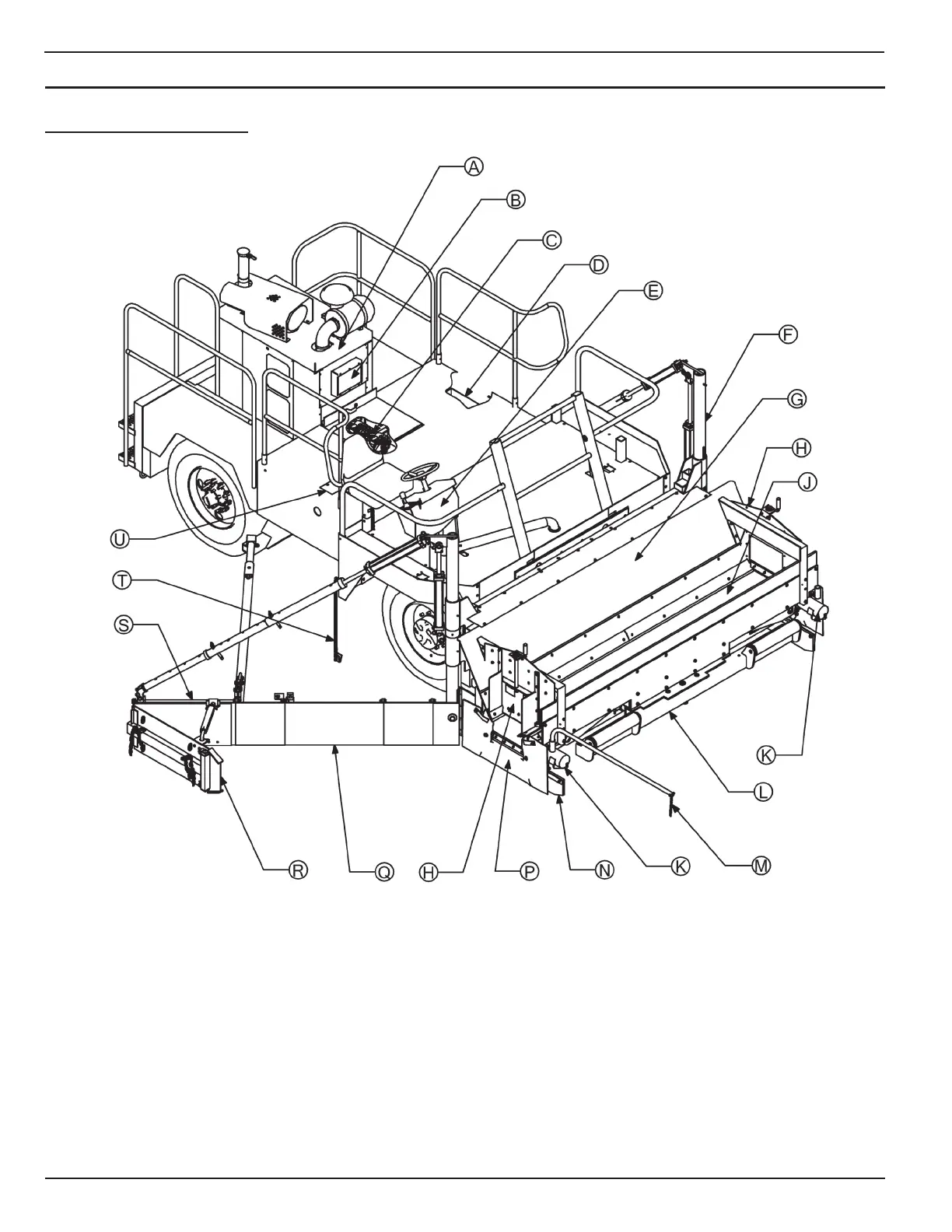

2.1 overAll mACHIne
A - Engine
B - Engine controls
C - Hydraulic Pumps
D - Manual Pack
E - Operator Console
F - Blade And Column Assembly (L/S)*
G - Conveyor And Hopper Assembly
H - Discharge Gate Assembly**
J - Conveyor Belt
K - Conveyor Motor
L - Push Roller Assembly
M - Guide Rod Assembly
N - Deector Assembly
P - Bib Assembly
Q - Blade And Column Assembly (R/S)
R - Outer Edger Assembly
S - Hydraulic Blade Extension**
T - Blade Restraint Assembly
U - Hydraulic Tank
* Available only in dual side configuration
** Available as option
