Model SP-8 &10
Note: Right side assembly is shown. Left side assembly,
where applicable, is done as its mirror image.

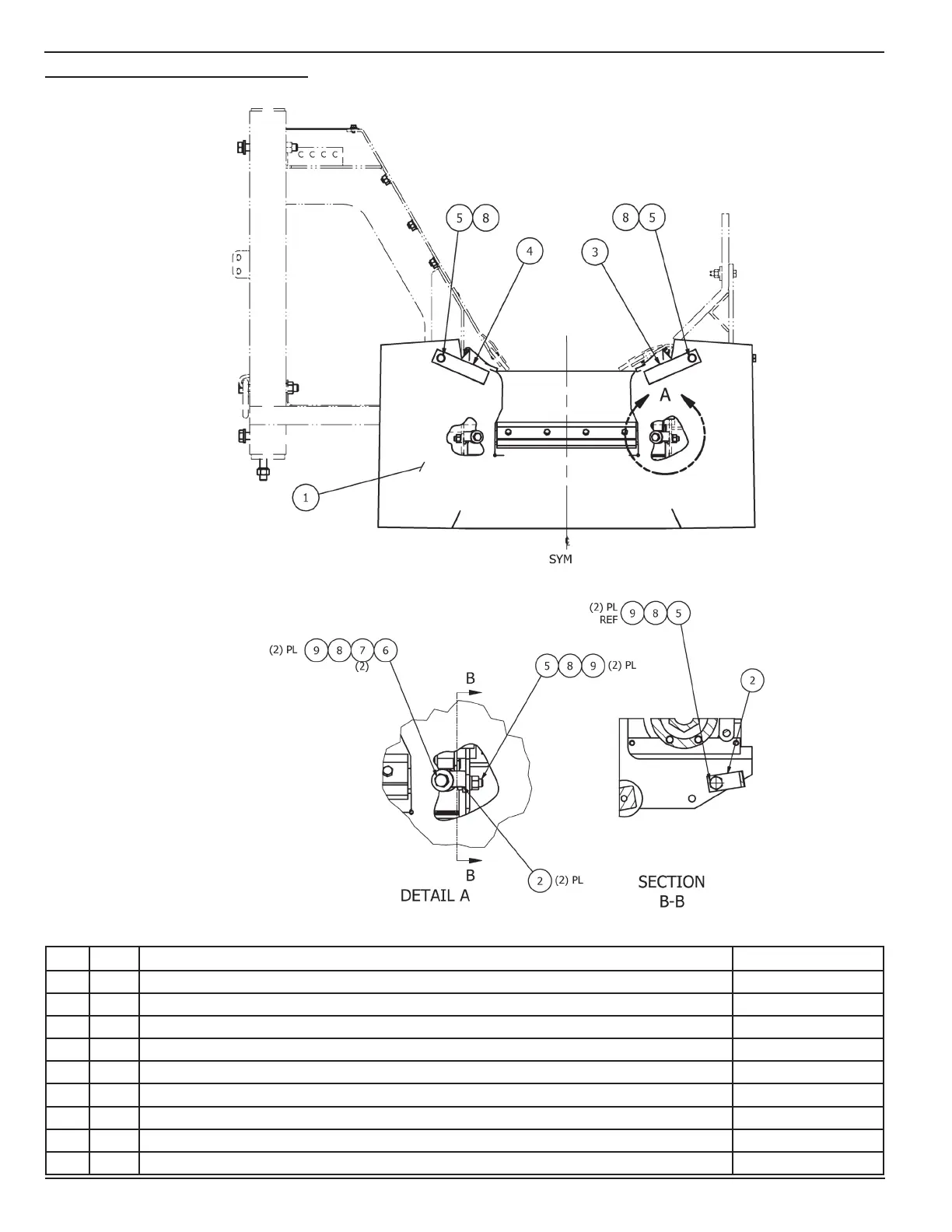

10.5 BIB AssemBly, sp-718
NO REQ DESCRIPTION PART NUMBER
1 1 BIB SP-720
2 2 BRACKET SP-719
3 1 BIB CLAMP, RS SA-1729
4 1 BIB CLAMP, LS SA-1730
5 4 HEX HD CAP SCREW, 1/2-13 UNC x 1 1/4 HCS-1/2-13-1.25
6 2 HEX HD CAP SCREW, 1/2-13 UNC X 1 1/2 HCS-1/2-13-1.50
7 4 FLAT WASHER, 1/2 FLW-1/2
8 6 LOCK WASHER, 1/2 LKW-1/2
9 4 HEX NUT, 1/2-13 UNC HXN-1/2-13
To Next Page
