www.roadwidener.com
136
Model SP-8 &10
18.3 trenCH Box AssemBly

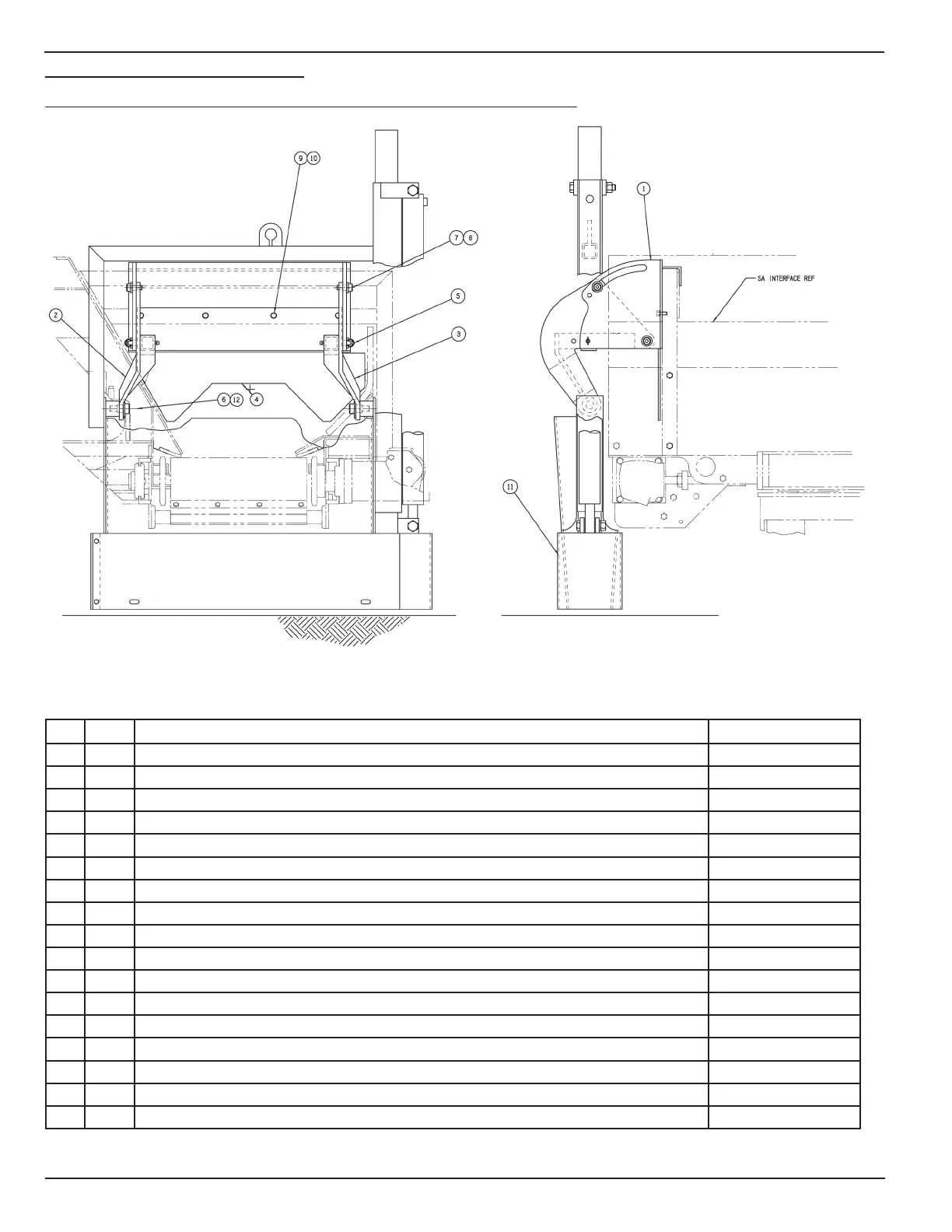

18.3.1 trenCH Box AssemBly sA/sp duAl sIded, sA-1513 rev-A
SIDE VIEW (MACHINE) FRONT VIEW (MACHINE)
NO REQ DESCRIPTION PART NUMBER
1 1 MOUNTING PLATE SA-1514
2 1 PIVOT BRACKET WELDMENT, (LEFT SIDE) SA-1515
3 1 PIVOT BRACKET WELDMENT, (RIGHT SIDE) SA-1516
4 1 GATE SA-720
5 2 PIN, QUICK RELEASE, 1/2 DIA X 3 1/2 GRIP M18070
6 2 SHOULDER SCREW 1 x 1 SHS-1-1.00
7 4 SHOULDER SCREW 3/4 x 3/4 SHS-3/4-0.75
8 4 WASHER, 3/4”, EXTRA THICK M0446
9 4 WASHER HD THREAD FORMING SCREW 3/8-16 UNC x 1-1/4 TFS-3/8-16-1.25
10 4 LOCK WASHER, 3/8 LKW-3/8
11 1 TRENCH BOX ASSEMBLY S-960
12 2 FLAT WASHER, 1 FLW-1
To Next Page
