Midland SP-8 - Adjustable Edger Plate Assembly, SP-744 Rev-A

85
www.roadwidener.com
Model SP-8 & 10
Note:
Right side assembly is shown. For left side paving, assemble as its mirror image.

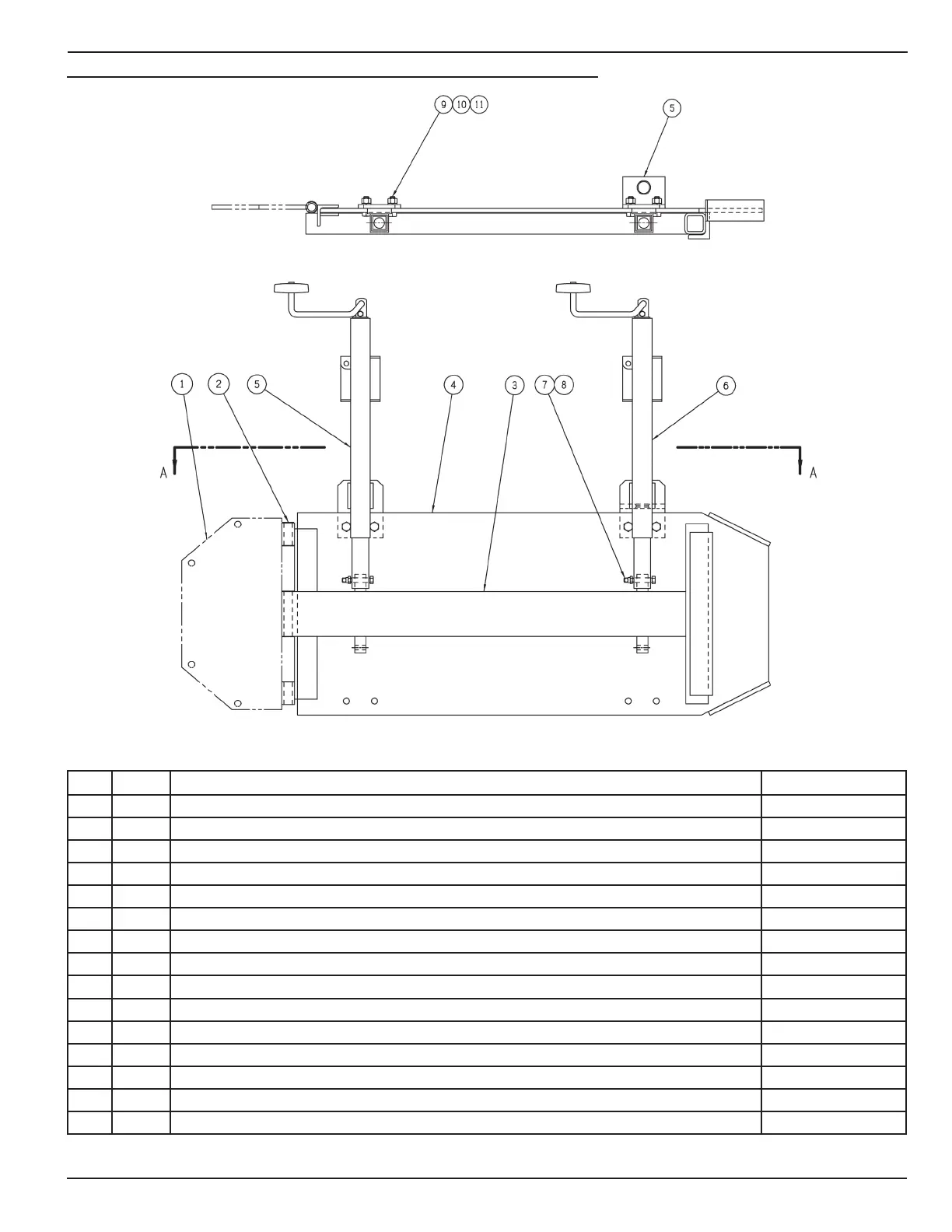

11.6 AdjustABle edGer plAte AssemBly , sp-744 rev-A
NO. REQ DESCRIPTION PART NUMBER
1 REF MOUNTING BRACKET SP-483
2 REF HINGE PIN SP-486
3 1 OUTER EDGER FRAME WELDMENT SP-745
4 1 OUTER EDGER PLATE WELDMENT, ADJ EDGER PL SP-746
5 1 JACK WELDMENT (ADJUSTABLE EDGER PLATE) S-943
6 1 JACK WELDMENT (ADJUSTABLE EDGER PLATE) SW-948
7 2 HEX HD CAP SCREW 3/8-16 UNC x 2-1/2 HCS-3/8-16-2.50
8 2 ELASTIC STOP NUT, 3/8-16 UNC ESN-3/8-16
9 4 HEX HD CAP SCREW 1/2-13 UNC x 1-1/2 HCS-1/2-13-1.50
10 4 LOCK WASHER, 1/2 LKW-1/2
11 4 HEX NUT, 1/2-13 UNC HXN-1/2-13
SECTION A-A
Item 1 and 2 are reference parts and not part of assembly.
