Model SP-8 & 10

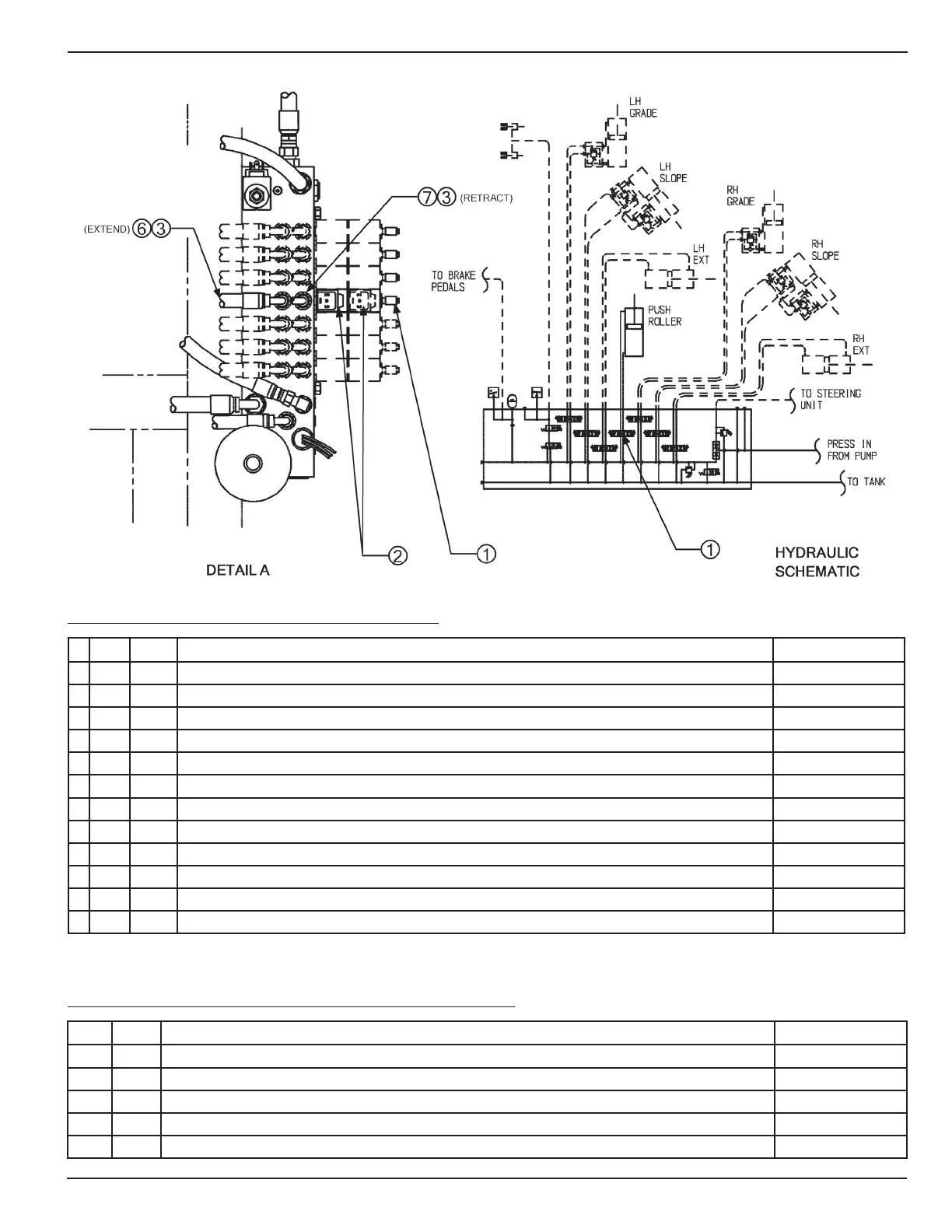

18.1.1 HydrAulIC InstAllAtIon, sp-707 rev-A
NO. REQ DESCRIPTION PART NUMBER
1 1 SOLENOID VALVE, CARTRIDGE W/ COIL & MAN. OVERRIDE M18112
2 2 DIN CONNECTOR, 4 FT M4530
* 3 2 ADAPTER, STRAIGHT, 9/16-18 MORB x 9/16-18 MJIC 202702-6-6S
* 4 2 ADAPTER, 90° ELBOW, 3/4-16 MORB x 9/16-18 MJIC 2062-8-6S
* 5 1 ADAPTER, 45° ELBOW, 9-16-18 FJIC SWIVEL x 9/16-18 MJIC 2070-6-6S
* 6 1 6-100R1AT-6FJS-6FJS90S x 135.0 LG. (EXTEND) SP-707-06
* 7 1 6-100R1AT-6FJS-6FJS90L x 154.0 LG. (RETRACT) SP-707-07
8 8 TUBE CLIP, SINGLE-3/4 INCH OD TC-3/4
9 3 HEX HD CAP SCREW 3/8-16 UNC x 1 HCS-3/8-16-1.00
10 4 LOCK WASHER, 3/8 LKW-3/8
11 3 COUPLING NUT, 3/8-16 UNC EXN-3/8-16
12 1 HEX NUT, 3/8-16 UNC HXN-3/8-16
* Item 3,4,5,6,and 7 are part of Hydraulic Hose and Fitting Kit, SP-707-HFK Rev-A
18.1.2 HydrAulIC CylInder InstAllAtIon, sp-708 rev-A
NO. REQ DESCRIPTION PART NUMBER
13 1 CYLINDER, HYDRAULIC M1039
14 4 HAIRPIN, COTTER, ZINC PLATED M11013
