Midland SP-8 - Hydraulic Blade Extension Installation for SP-10, SP-752

83
www.roadwidener.com
Model SP-8 & 10
NO. REQ DESCRIPTION PART NUMBER
1 1 HYDRAULIC EXTENSION ASSEMBLY 2-4 FT. SP-470
* 2 2 ADAPTER, 90° ELBOW, 3/8 MNPT x 9/16-18 MJIC 2024-6-6S
* 3 1 6-100R1AT-6FJS-6FJS90L-183.5 SP-752-02
* 4 1 6-100R1AT-6FJS-6FJS90S-209.5 SP-752-03
5 1 BLADE SECTION (1 FT) SP-441
6 8 LOCK WASHER, 1/2 LKW-1/2
7 8 HEX HD CAP SCREW 1/2-13 UNC x 1-3/4 HCS-1/2-13-1.75
8 8 HEX NUT, 1/2-13 UNC HXN-1/2-13
9 4 HEX NUT, 3/8-16 UNC HXN-3/8-16
10 4 LOCK WASHER, 3/8 LKW-3/8
11 8 TUBE CLIP, 3/4 INCH TC-3/4
Note:
Right side assembly is shown. For left side paving, assemble as its mirror image.

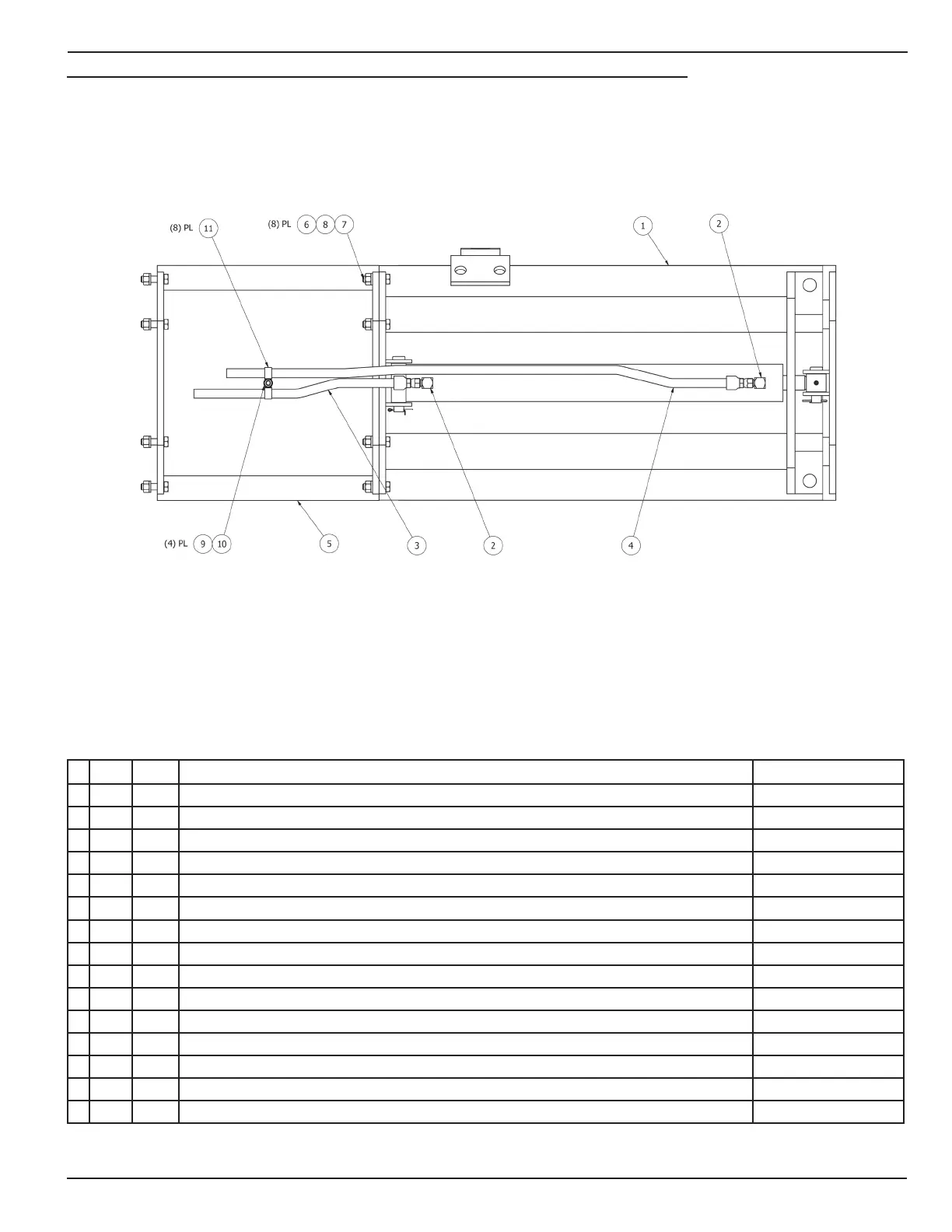

11.4 HydrAulIC BlAde extensIon InstAllAtIon for sp-10, sp-752
* Item 2,3 and 4 are part of Hose and Fitting Kit SP-752-HFK.
