Model SP-8 &10
NO. REQ DESCRIPTION PART NUMBER
1 1 BLADE SECTION (STATIONARY) - 2 FT HYD EXT SP-471
2 1 BLADE SECTION (MOVEABLE) - 2 FT HYD EXT SP-477
3 1 BLADE RETAINER/TURNBUCKLE MOUNT SP-481
4 1 CYLINDER, HYDRAULIC M1022
5 1 CLEVIS PIN, 3/4 x 2-1/2 LG M11015
6 1 CLEVIS PIN, 3/4 x 4 LG M11086
7 2 COTTER PIN, 1/8 DIA x 1-1/2 CTP-1/8-1.50
8 2 FLAT SOCKET HD CAP SCREW 3/8-16 UNC x 1-1/4 FCS-3/8-16-1.25
9 2 HEX NUT, 3/8-16 UNC HXN-3/8-16
10 2 LOCK WASHER, 3/8 LKW-3/8

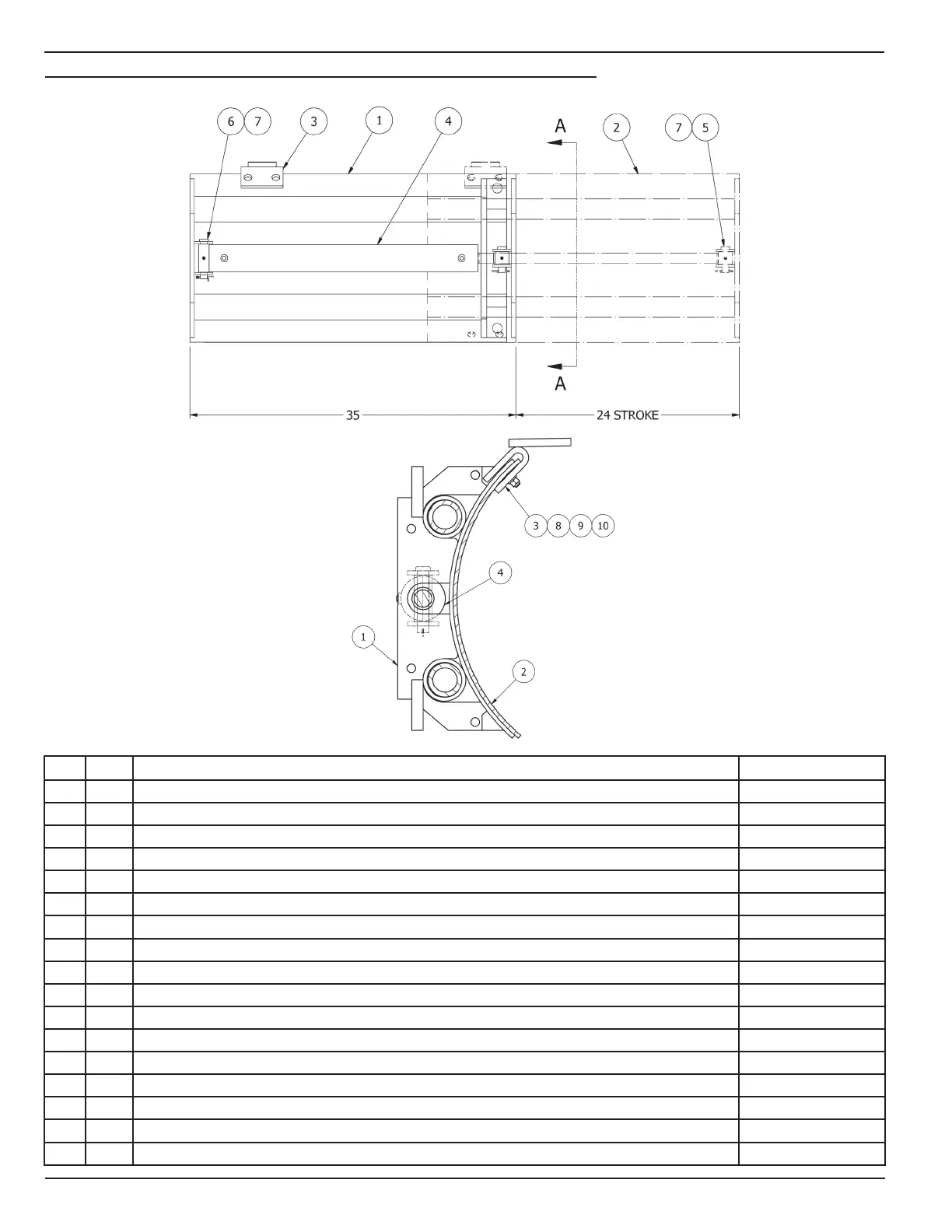

11.5 HydrAulIC BlAde extensIon AssemBly, sp-470 rev-A
SECTION A-A
