Model SP-8 &10
Note:

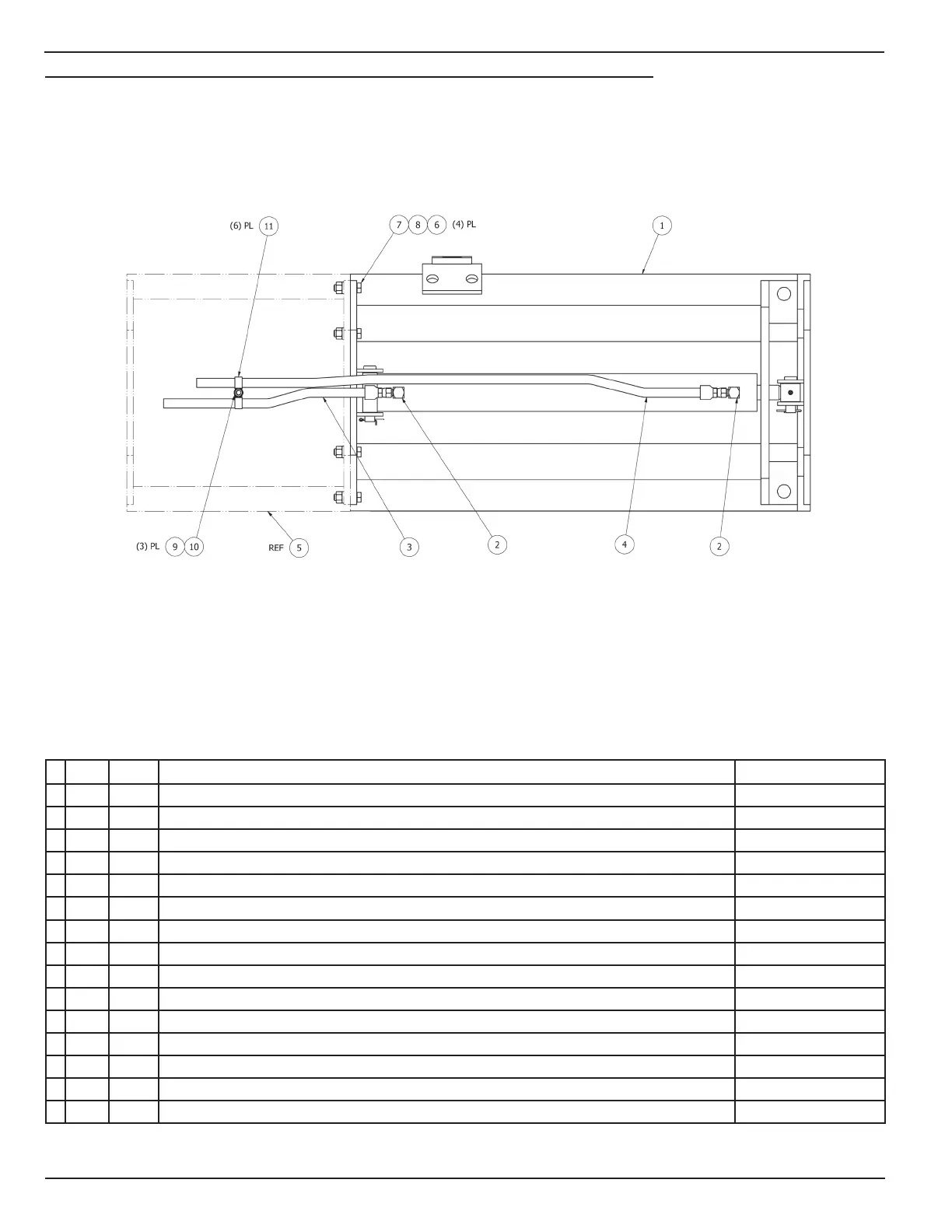

Right side assembly is shown. For left side paving, assemble as its mirror image.
Item 5 is a reference part and not part of the assembly.
11.3 HydrAulIC BlAde extensIon InstAllAtIon for sp-8, sp-751
NO. REQ DESCRIPTION PART NUMBER
1 1 HYDRAULIC EXTENSION ASSEMBLY 2-4 FT. SP-470
* 2 2 ADAPTER, 90° ELBOW, 3/8 MNPT x 9/16-18 MJIC 2024-6-6S
* 3 1 6-100R1AT-6FJS-6FJS90L-163.0 SP-751-02
* 4 1 6-100R1AT-6FJS-6FJS90S-193.0 SP-751-03
5 REF BLADE SECTION (1) FT SP-441
6 4 LOCK WASHER, 1/2 LKW-1/2
7 4 HEX HD CAP SCREW 1/2-13 UNC x 1-3/4 HCS-1/2-13-1.75
8 4 HEX NUT, 1/2-13 UNC HXN-1/2-13
9 3 HEX NUT, 3/8-16 UNC HXN-3/8-16
10 3 LOCK WASHER, 3/8 LKW-3/8
11 6 TUBE CLIP, 3/4 INCH TC-3/4
* Item 2,3 and 4 are part of Hose and Fitting Kit SP-751-HFK.
