Installation Guide Assembly
NOTE: The Operating Instructions will either be a paper copy or as a PDF file
on a CD.
45. Hang the Pre-operative Checkout List (P/N: 046-002590-00) and the Auxiliary O2/AIR Reference
Card (P/N: 046-002591-00) to the handle of the A5/A3 unit.
2.2.2 Breathing System and Breathing System Accessories and
Checkout Procedures

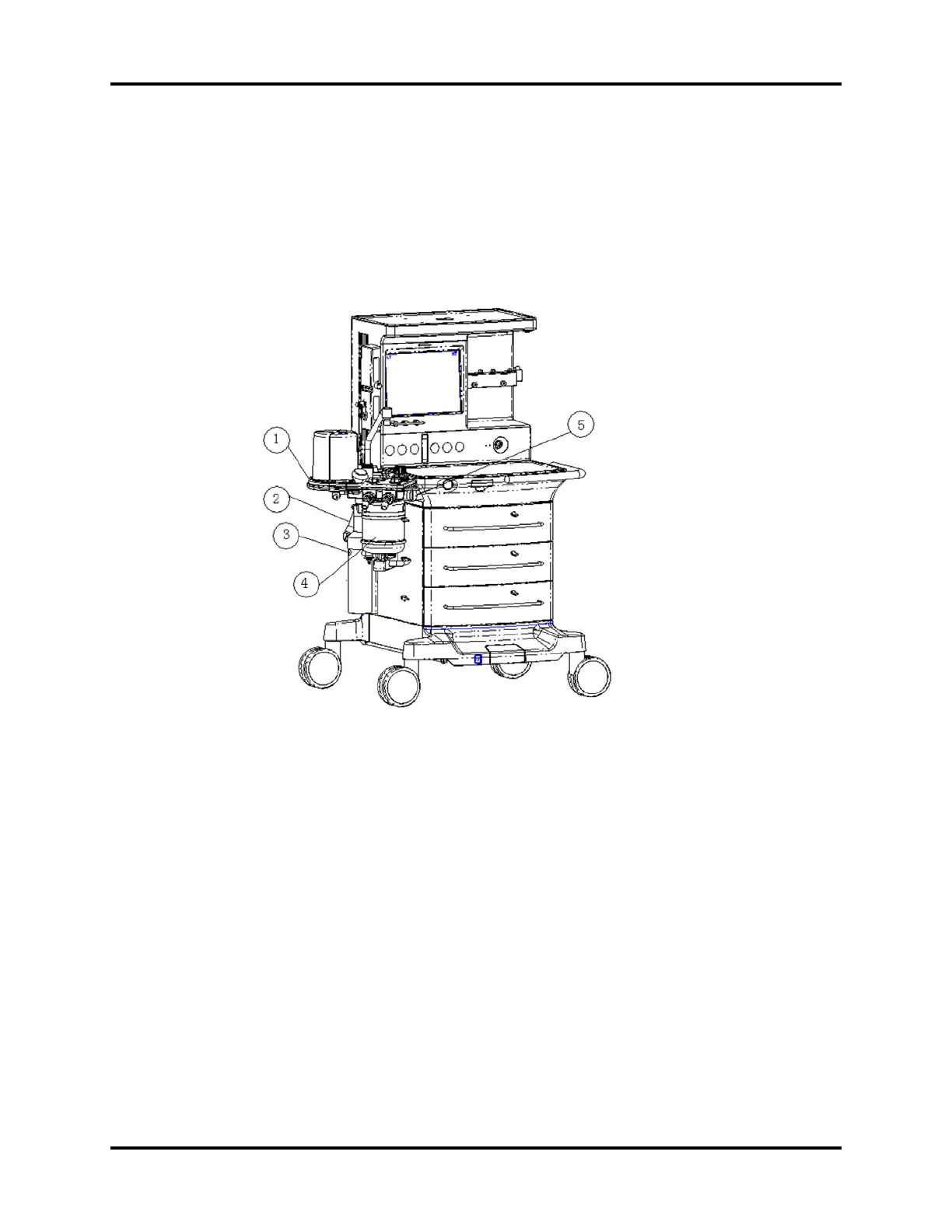

FIGURE 2-25
1. Breathing System
2. AGSS Transfer Hose
3. AGSS
4. CO2 Absorbent
5. O2 sensor cable with sensor(A3s and A5s without AG module only)
2.2.2.1 Tank Wrench and Pre-operation
1. Mount the tank wrench on the rear of the A5/A3 so that it can be used to open or close each
cylinder without disconnecting it from the machine.
2.2.3 Vaporizers (if available)
WARNING: If the vaporizer is incompatible with the A5/A3 Anesthesia System, the
vaporizer will not work at all. Use vaporizers with Selectatec mounting
system that are compliant to ISO 8835-4. Refer to the vaporizer
manufacturer's Instructions For Use for filling or draining the vaporizer
and other information.
