Disassemble the Breathing System
Repair and Disassembly
6 - 58
046-001141-00
A5/A3™ Service Manual
6.3.11
Remov
e the
W
ater C
ollec
tion Cup
1.
Hold the water collection cup and tu
rn it counterc
lockwise to remove it.

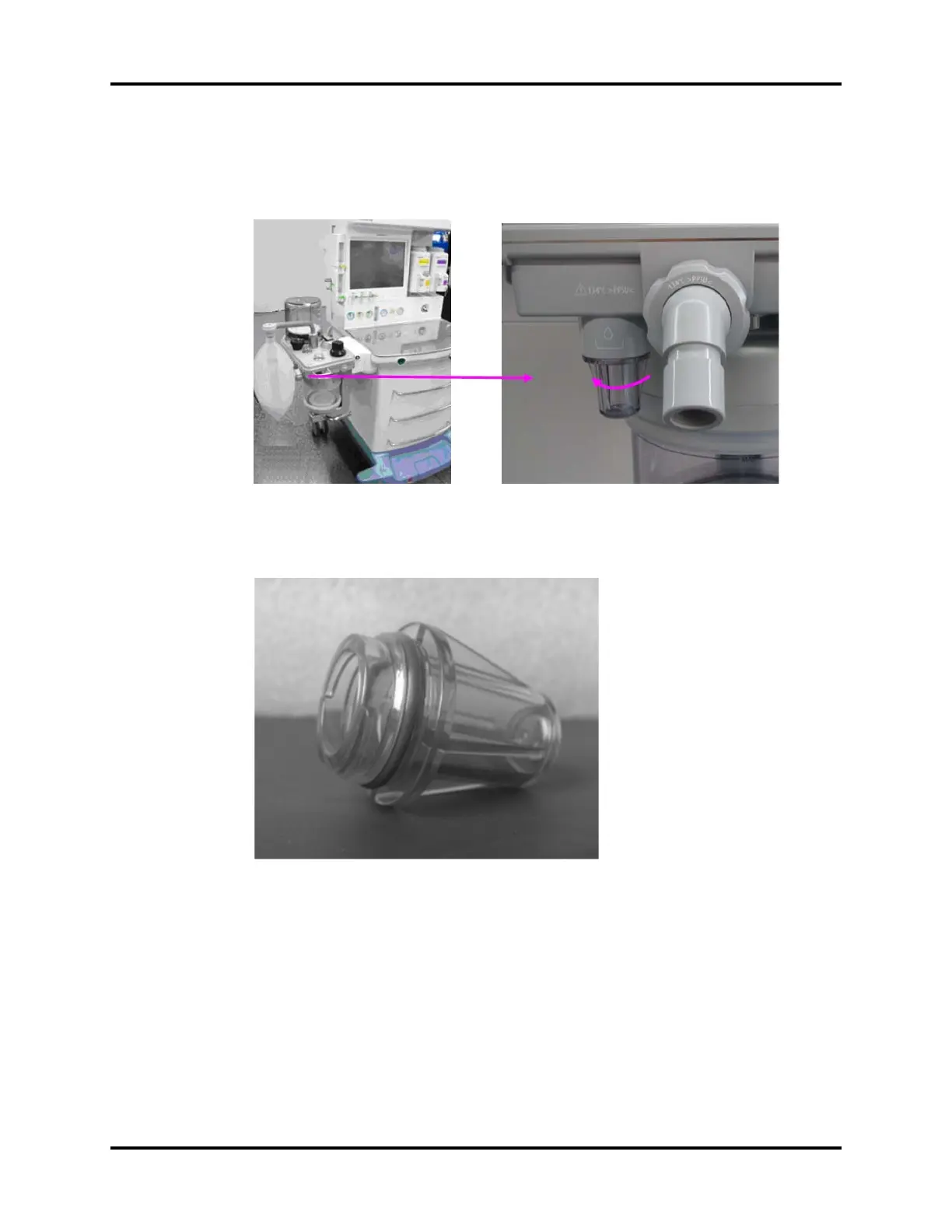

FIGURE 6-111
2.
Remove the wat
er collection cup
.
FIGURE 6-112
