Mindray A3 - Remove the CO2 Bypass Assembly

Disassemble the Breathing System Repair and Disassembly
6 - 52 046-001141-00 A5/A3™ Service Manual

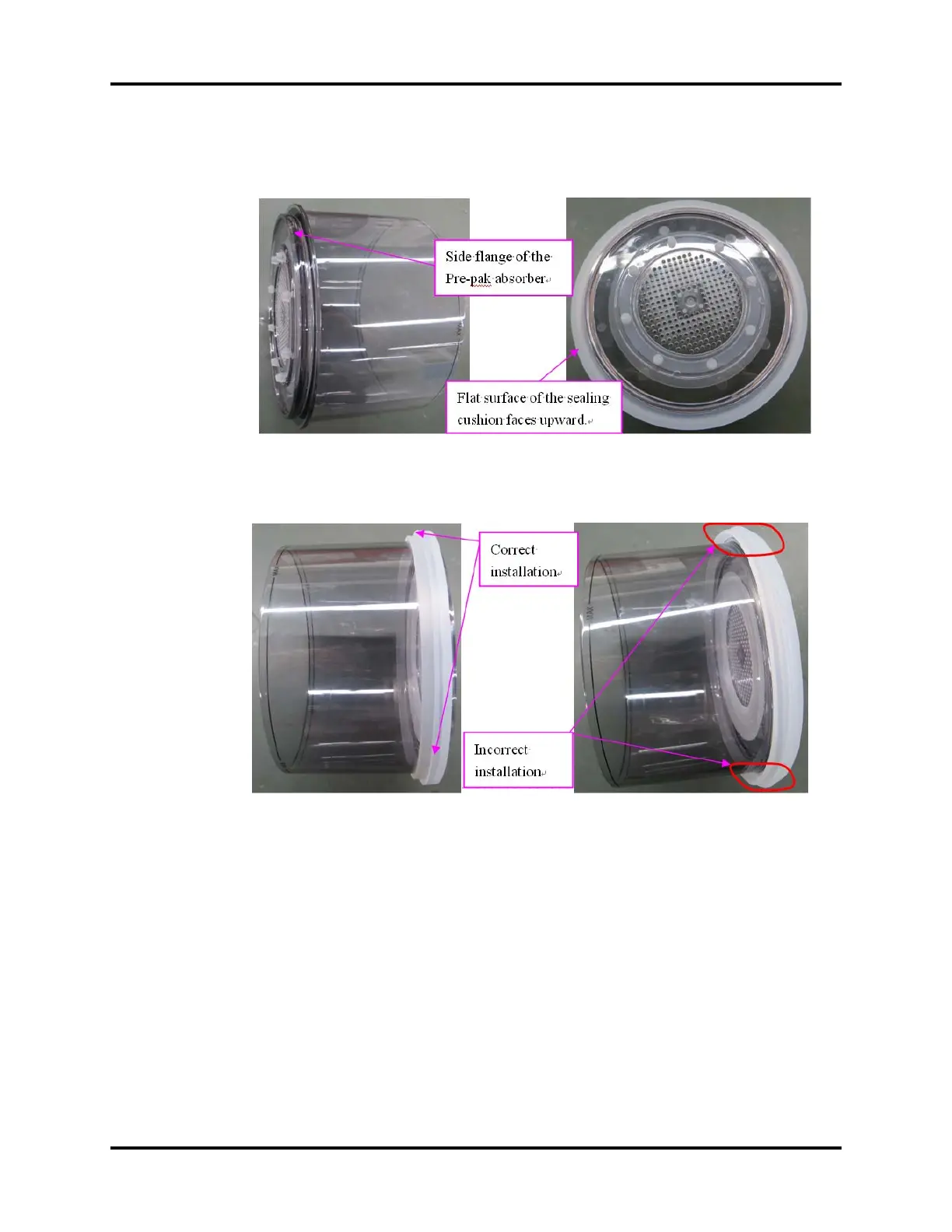

If it is necessary to replace or re-install the Pre-pak absorber sealing cushion (049-000143-00), set the
internal groove of the Pre-pak absorber sealing cushion in the side flange of the Pre-pak absorber, as
shown below..
FIGURE 6-99
Make sure that the sealing cushion is correctly installed. The comparison between correct installation
and incorrect installation is shown below..
FIGURE 6-100
6.3.6 Remove the CO2 Bypass Assembly
1. Remove the absorbent canister as per section 6.3.5.
2. Press inward the fasteners on both sides and the CO2 bypass assembly will drop down for
removal.
