A5/A3™ Service Manual
046-001141-00
6 - 39
Repair and Disassembly
Disassemble the Assemblies
6.2.6
Remov
e the M
odule Rack F
an
1.
Remove the m
odule rack as
sembly.
2.
Unplug the cable pl
ug for modu
le rack fan.

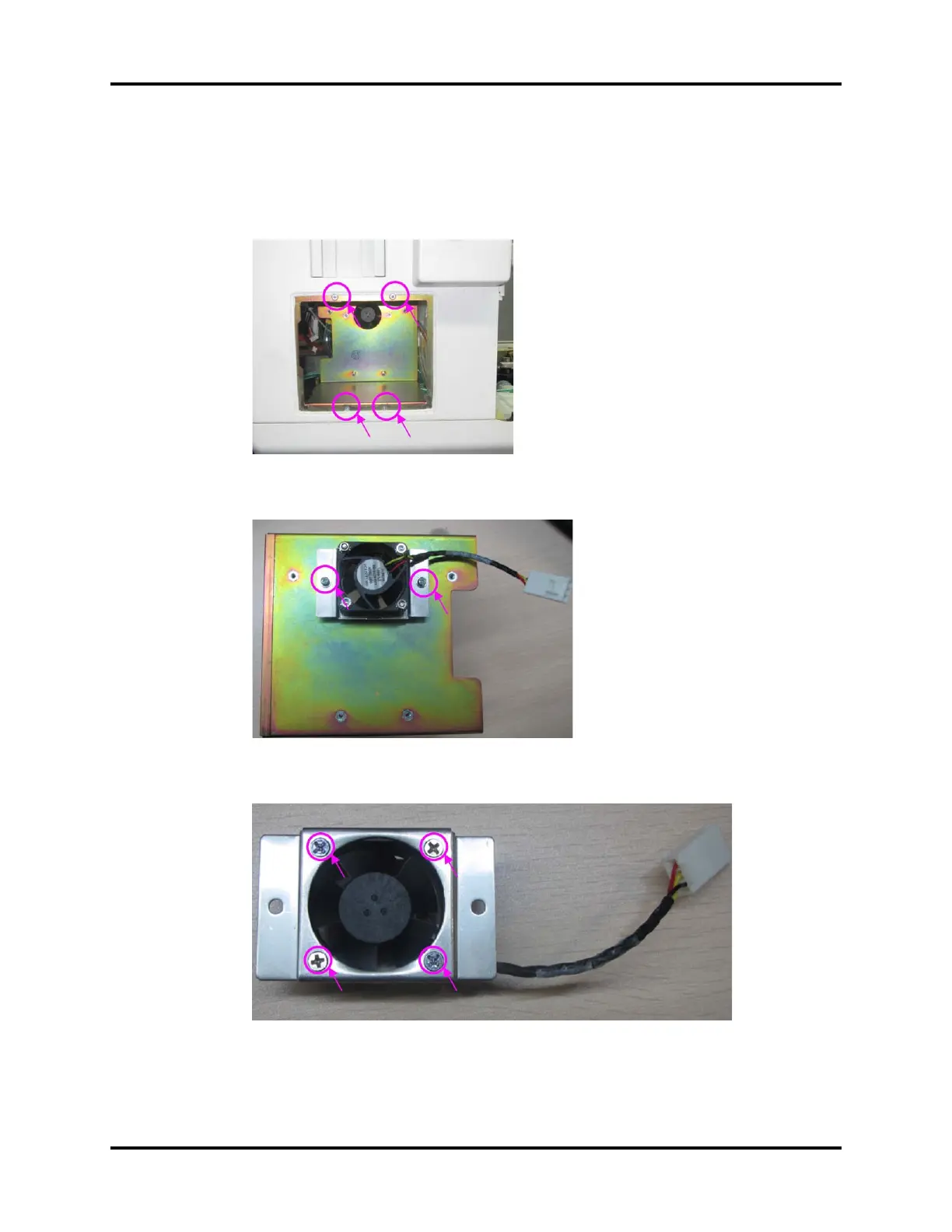

3.
Unscrew the
four scr
ews to remo
ve the module
rack bracket assembly
.
FIGURE 6-71
4.
Unscrew the
two screws to r
emove the fan and bracket.
FIGURE 6-72
5.
Unscrew the f
our screws to remov
e the module rack fan.
FIGURE 6-73
