A5/A3™ Service Manual 046-001141-00 7 - 3
Replacement Parts Introduction
7.1.2 Diagrams and Tables

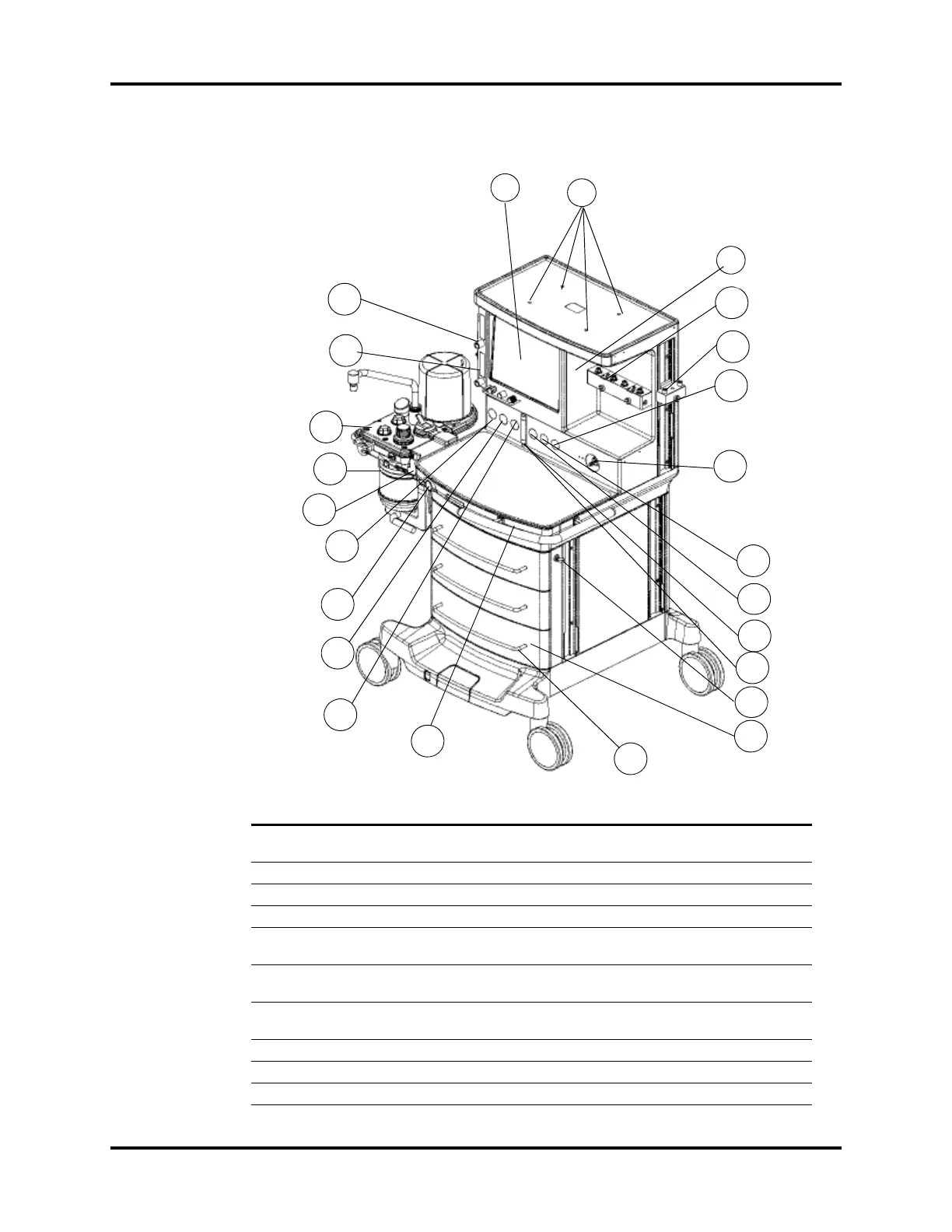

7.1.2.1 A5/A3 Structure
FIG.NO. DESCRIPTION PART NUMBER
1 Auxiliary Gas Outlet Assembly (A5 only)
115-018165-00(FDA)
115-018166-00(Canadian)
1a Auxiliary Gas Outlet Assembly (0633) (A3 only) 801-0633-00002-00
2 Breathing System 115-025569-00
3 CO2 Bypass Assembly, A series 115-036378-00
4
N2O High Pressure Gauge Assembly (0~3500psi)
(must be ordered together with the copper tube)
115-024845-00 and
801-0631-00125-00
5
Air High Pressure Gauge Assembly (0~3500psi)
(must be ordered together with the copper tube)
115-024846-00 and
801-0631-00124-00
6
O2 High Pressure Gauge Assembly (0~3500psi)
(must be ordered together with the copper tube)
115-024844-00 and
801-0631-00123-00
7 Drawer Assembly 115-034451-00
7a Drawer Handle 801-0631-00140-00
8 Drawer Lock A-series(Old lock) 115-023320-00(801-0631-00077-00)
1
1a
7a
7
12
13
14
15
3
4
5
6
2
11
10
9
8
9a
16
33
34
35
36
37
