A5/A3™ Service Manual 046-001141-00 1 - 33
Theory of Operation Anesthesia System Components
1.4 Anesthesia System Components
1.4.1 Auxiliary Outlets
The A3 anesthesia system has three 125V 15A Hospital Grade auxiliary outlets. Each outlet has one
250V 3A breaker.

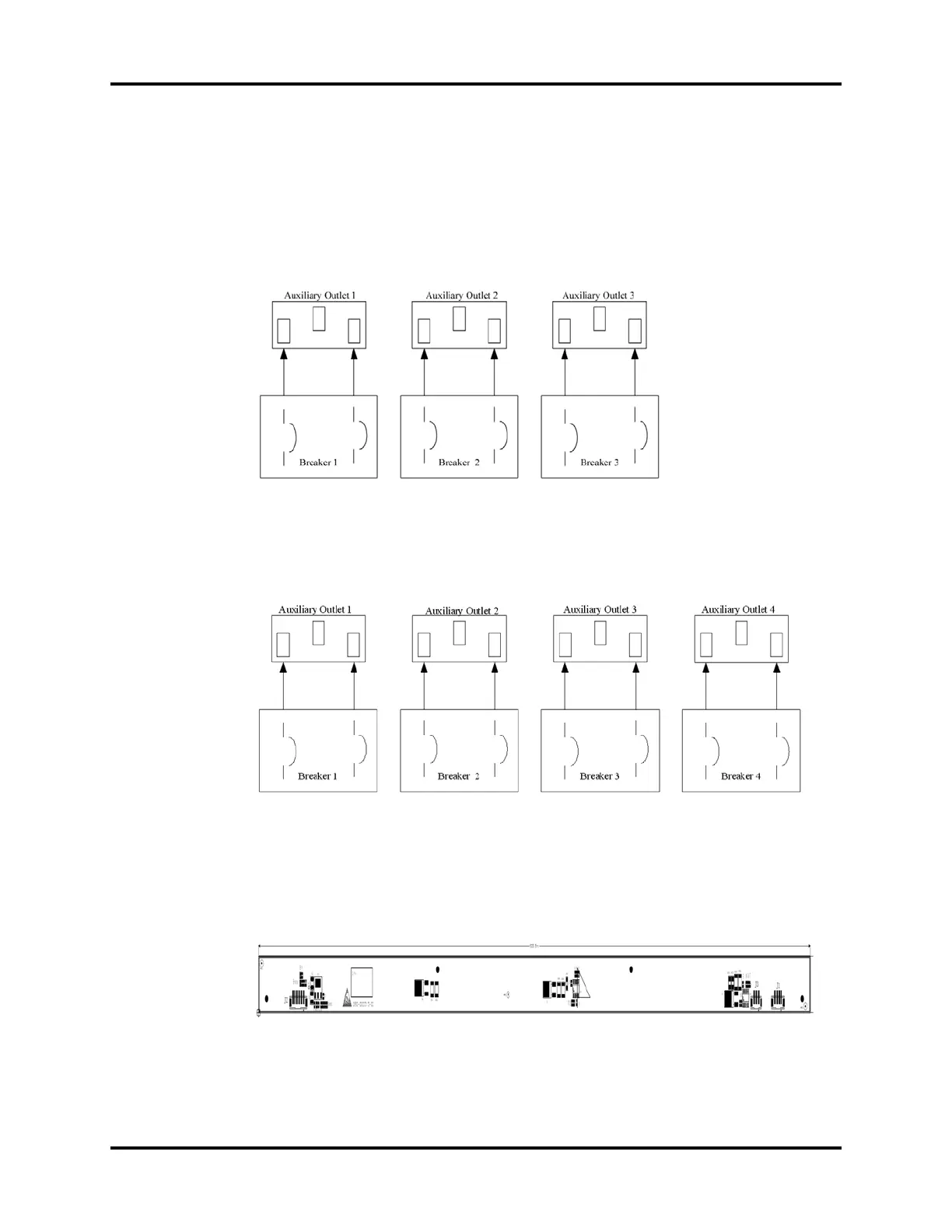

FIGURE 1-25 Auxiliary Outlet Diagram for the A3
The A5 anesthesia system has four 125V 15A Hospital Grade auxiliary outlets. Each outlet has one
250V 3A breaker. Additionally, a main breaker limits the combined current of the four outlets to 10A.
FIGURE 1-26 Auxiliary Outlet Diagram for the A5
1.4.2 Work Light Board
1.4.2.1 Top lighting board
FIGURE 1-27 Top Lighting Board, Top View
